Steering Column: Disassembly

NOTE: When using a vise, do not overtighten it.

w/ Key cylinder lamp : Remove the clip and key cylinder lamp assembly.
Remove column upper bracket and column upper clamp :
1. Using a centering punch, mark the center of the 2 tapered-head bolts.
2. Using a 3 - 4 mm (0.12 - 0.16 in.) drill, drill into the 2 bolts.
3. Using a screw extractor, remove the 2 bolts, column upper bracket and column upper clamp.

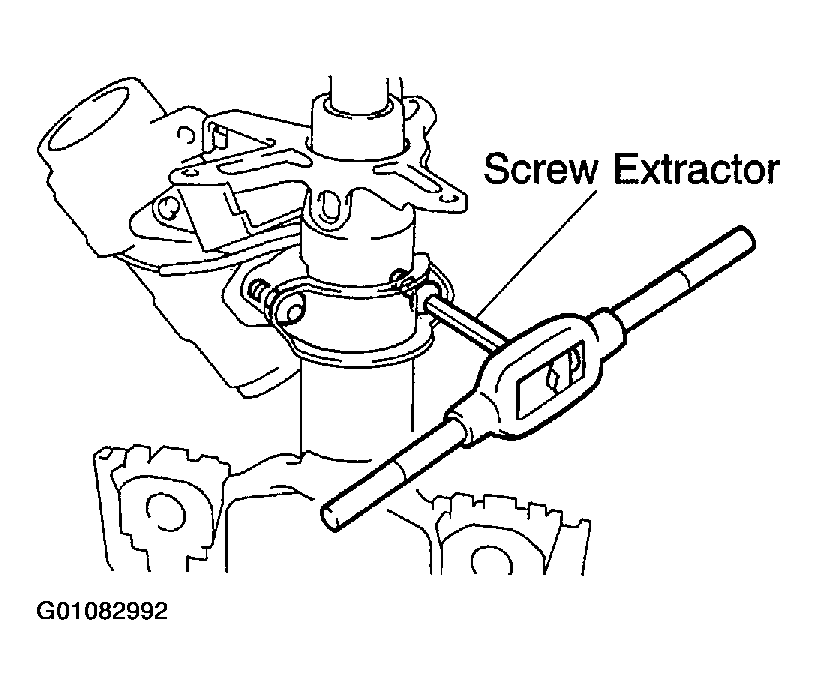

  Fig 1: Removing Tapered-Head Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
