Circuit Description

This DTC is output when any switch of the power window regulator master switch is ON.

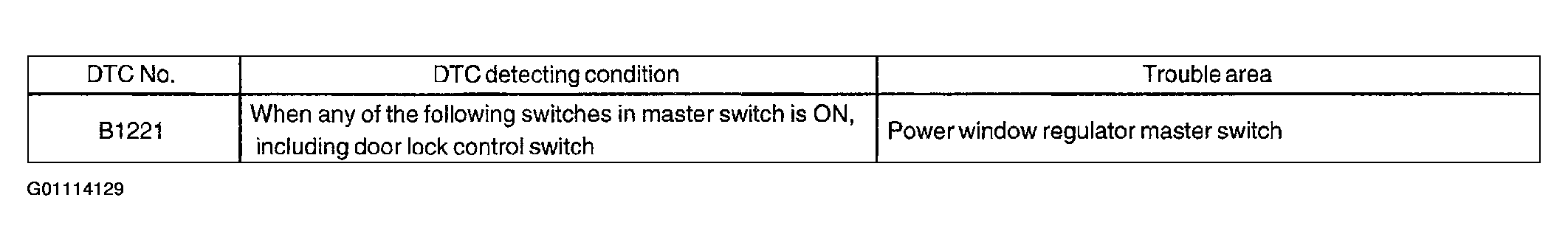

Fig 1: Reviewing Power Window Switch DTC Information
G01114129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
