Inspection Procedure

  1. Check Wire Harness
    1. Disconnect the connectors of the power window regulator master switch assembly and power window regulator motor assembly LH.

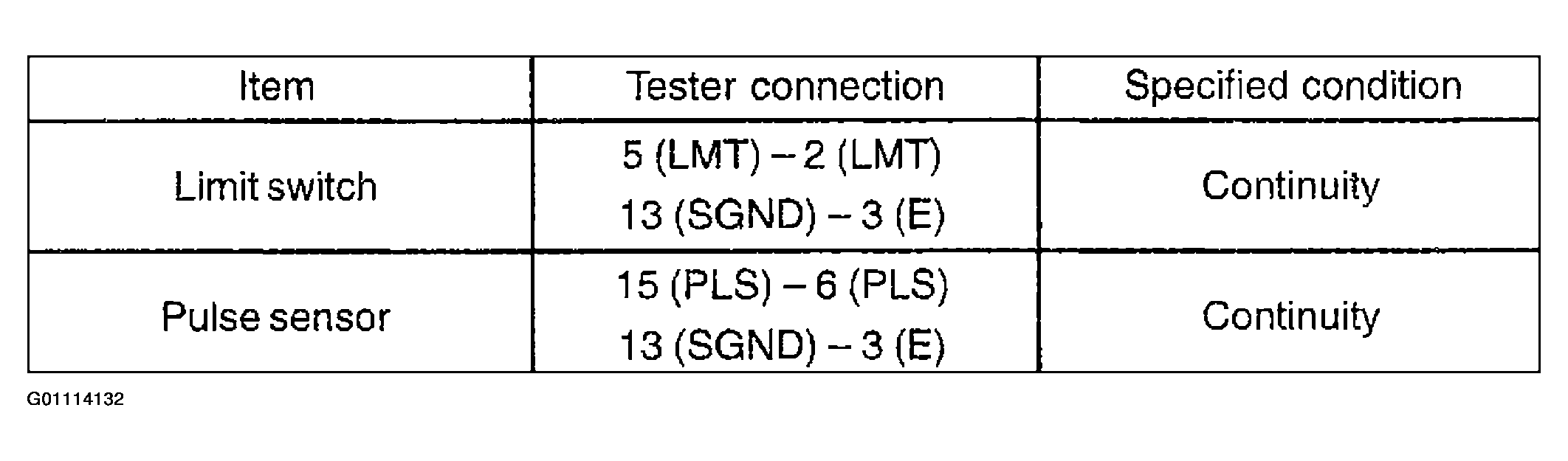

      Fig 1: Reviewing Limit Switch & Pulse Sensor Information
      G01114132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check the continuity between the master switch assembly and motor assembly LH.

      Standard:

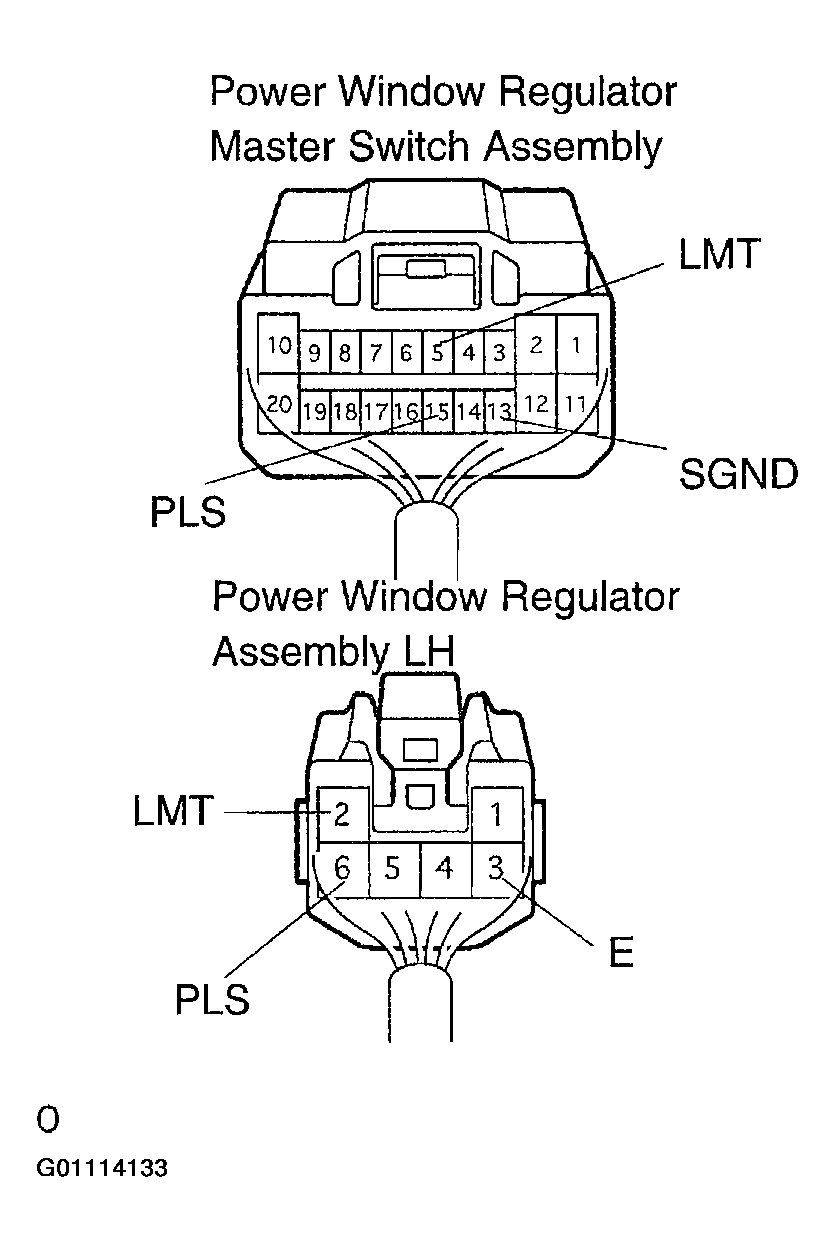

      Fig 2: Identifying Power Window Regulator Master Switch Assembly
      G01114133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: Replace Power Window Regulator Motor Assembly LH
    2. NG: Repair Or Replace Harness And Connector
