Power Steering: Components

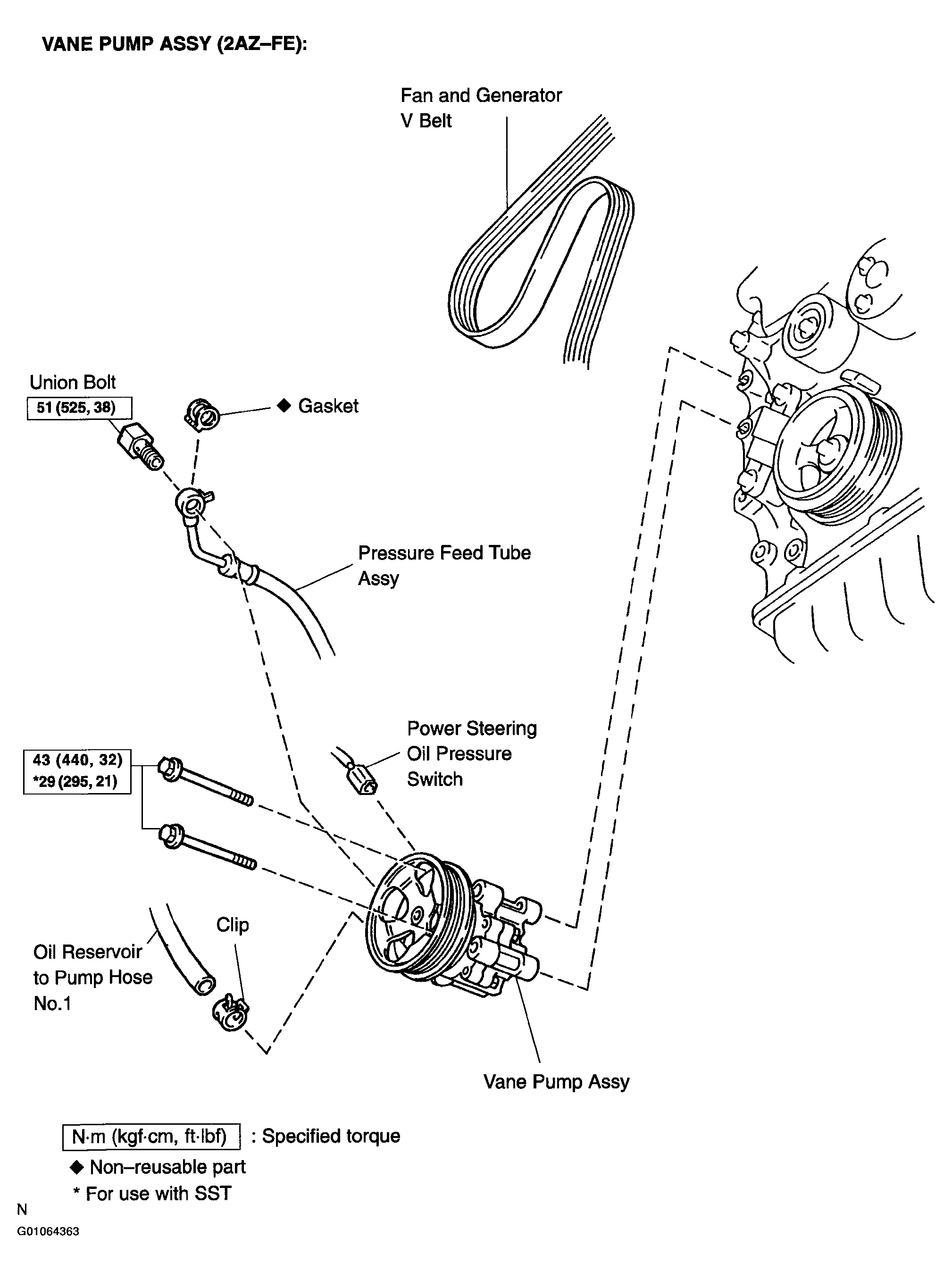

Fig 1: Identifying Components For Vane Pump Assy Removal (2AZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

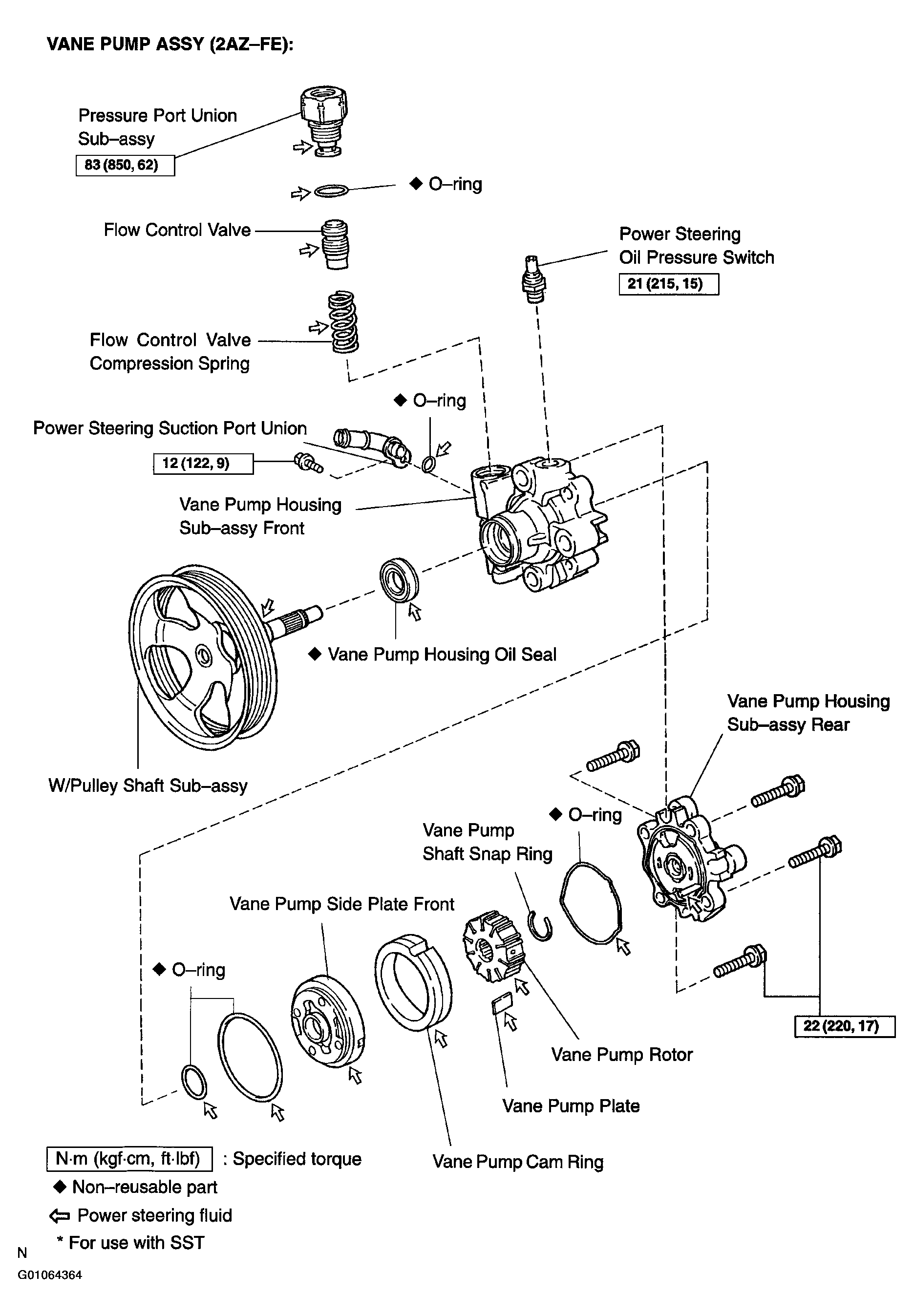

Fig 2: Exploded View Of Vane Pump Assy (2AZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

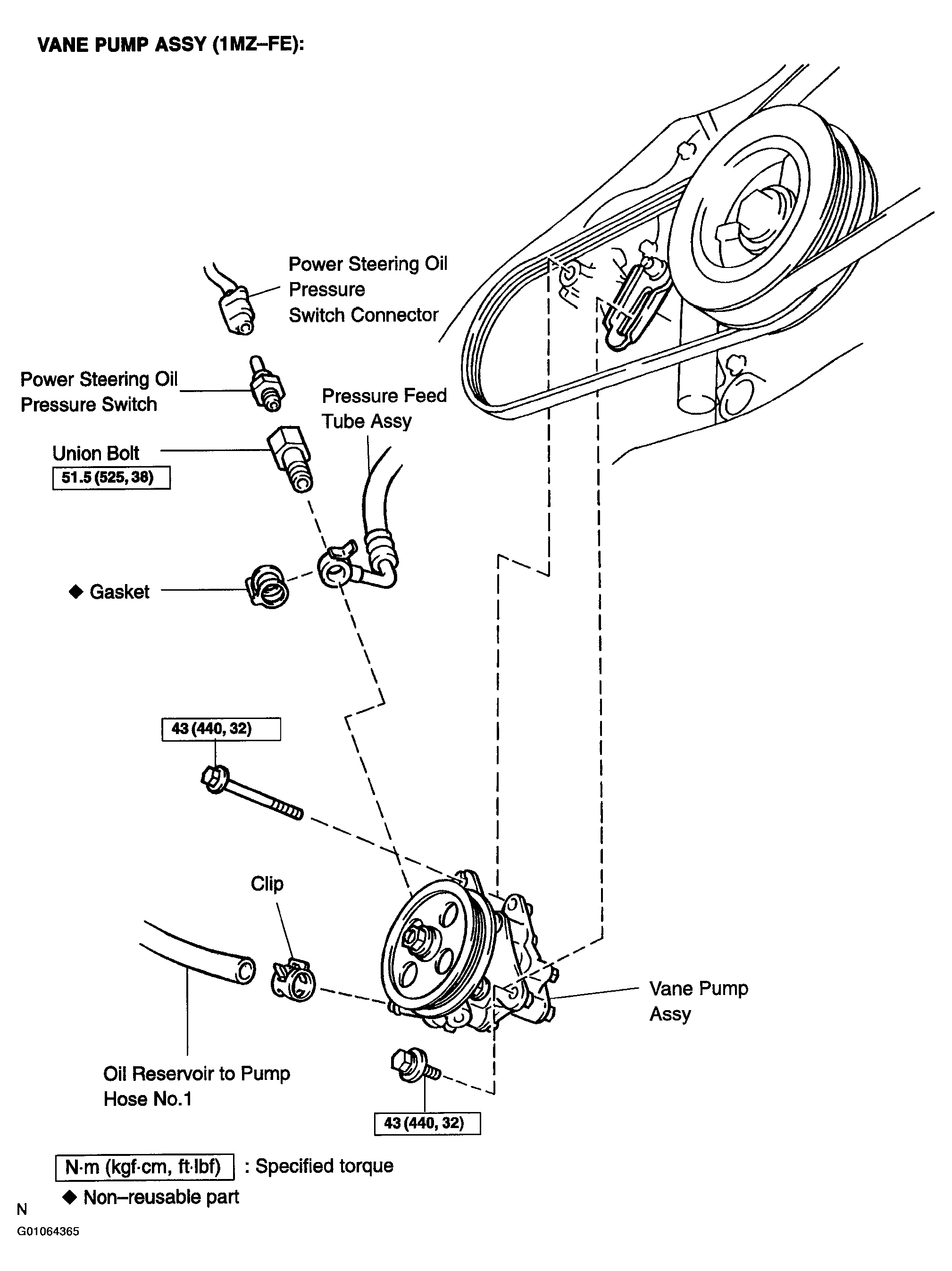

Fig 3: Identifying Components For Vane Pump Assy Removal (1MZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

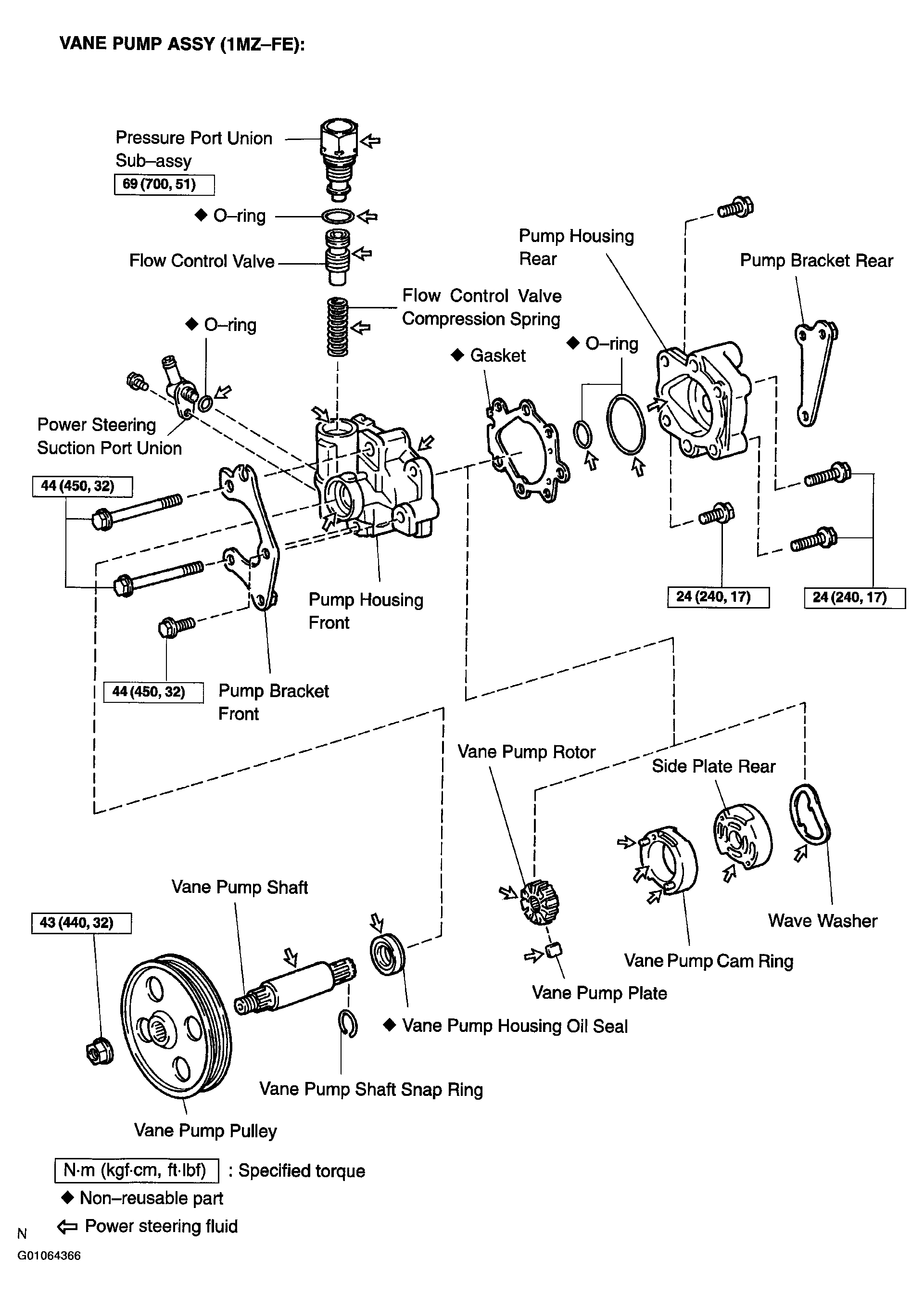

Fig 4: Exploded View Of Vane Pump Assy (1MZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

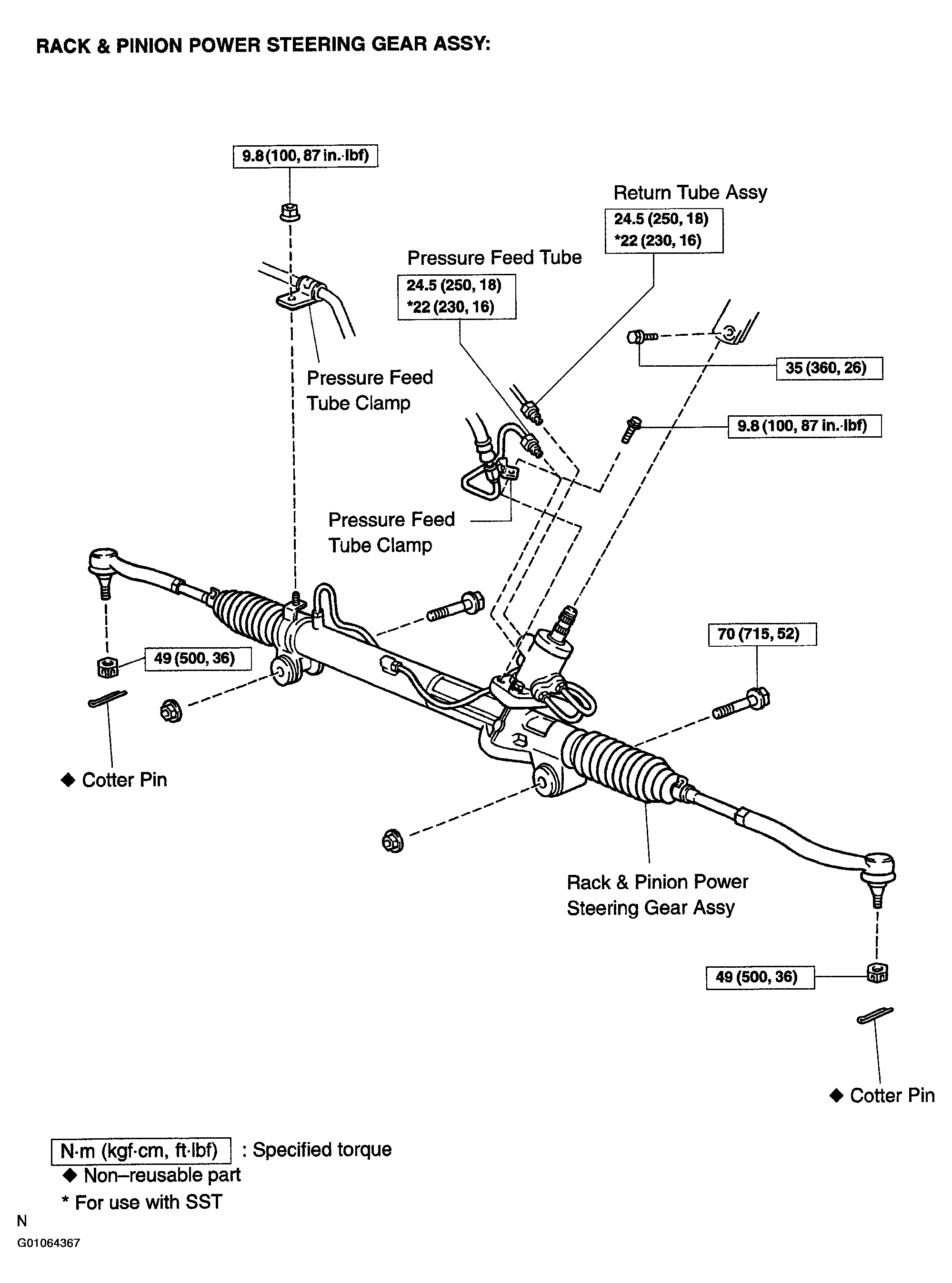

Fig 5: Identifying Components For Rack & Pinion Power Steering Gear Removal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

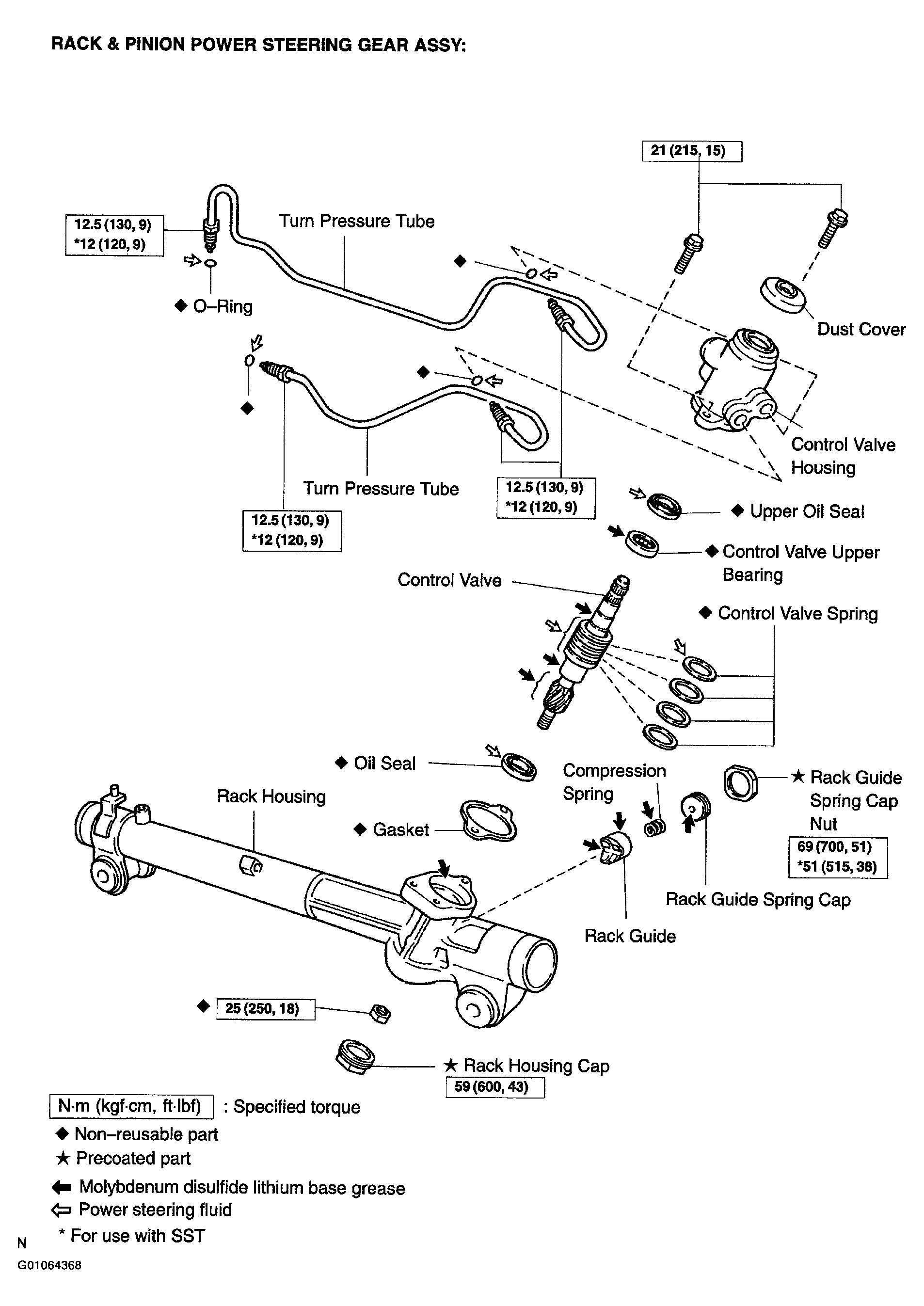

Fig 6: Exploded View Of Steering Gear Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

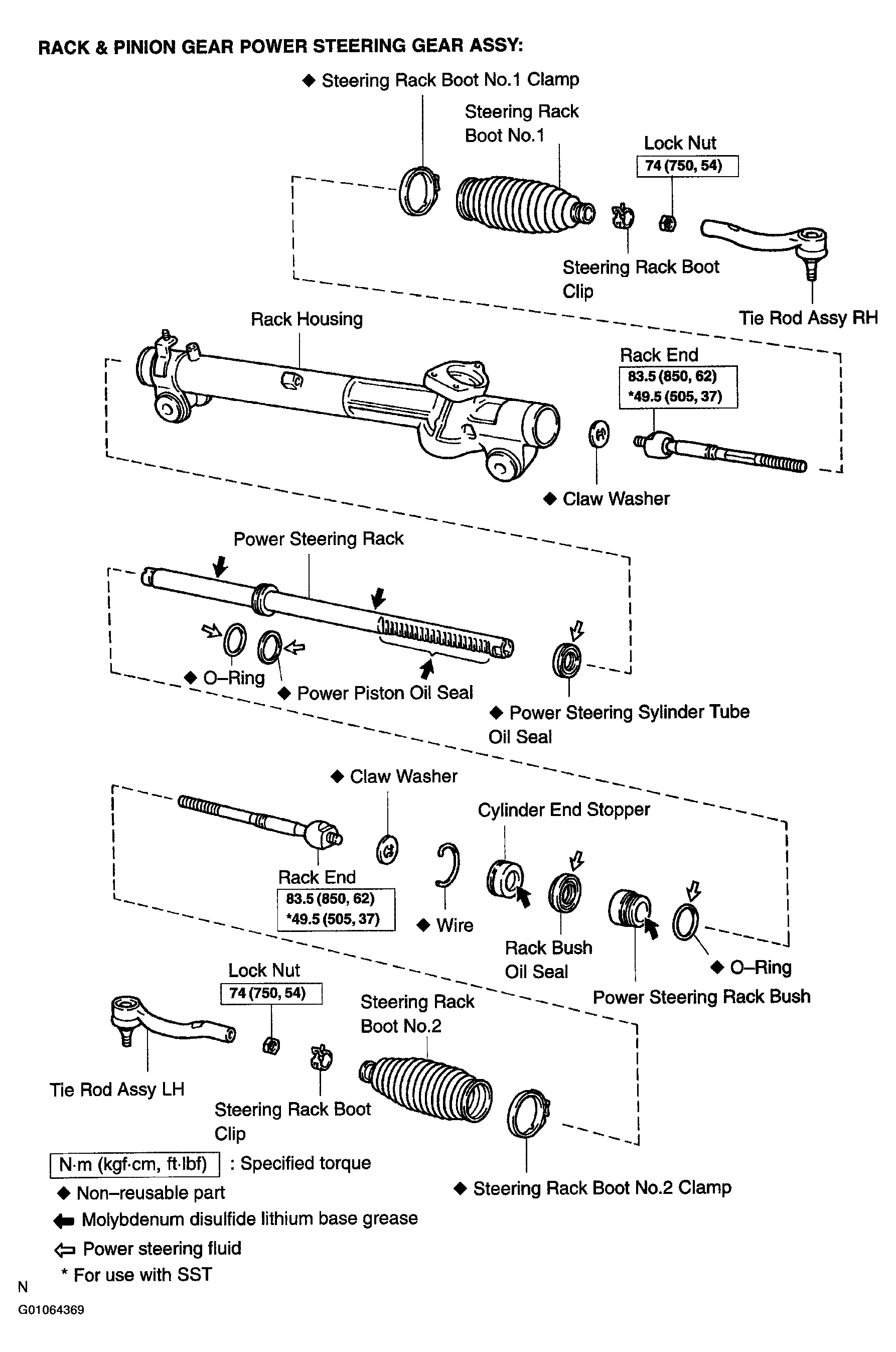

Fig 7: Exploded View Of Steering Gear Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
