Front Speed Sensor: Components

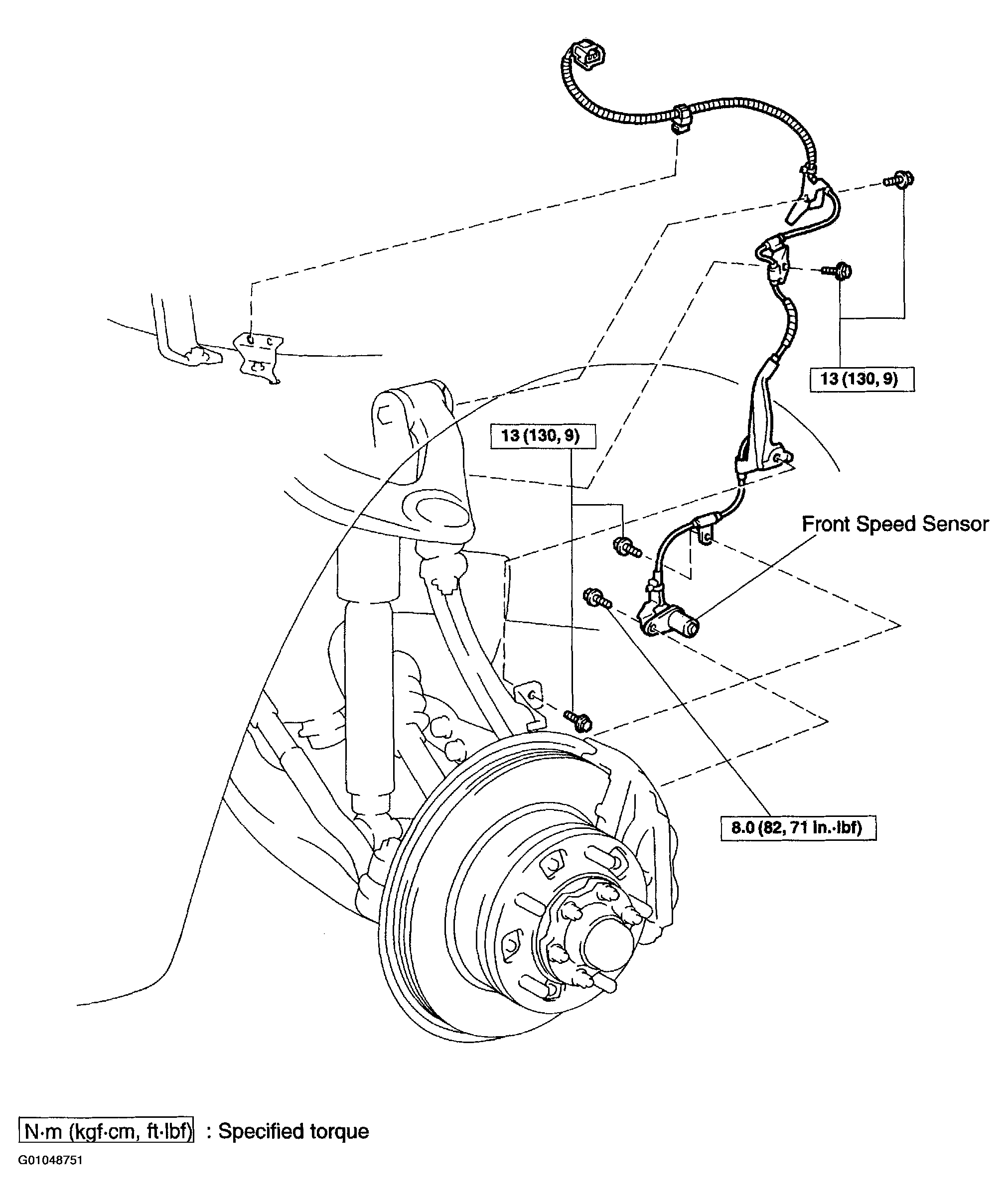

Fig 1: Identifying Front Speed Sensor Components
G01048751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
