Circuit Description

This sensor detects the position of the air mix damper and sends the appropriate signals to the A/C amplifier.

The position sensor is built into the air mix damper control servomotor assembly.

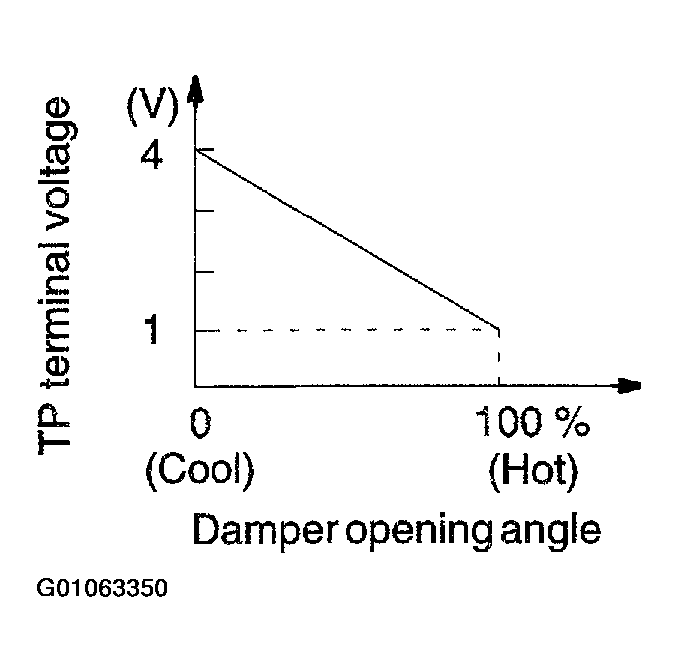

Fig 1: TP Terminal Voltage Chart
G01063350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Circuit Description
G01063351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
