When Servicing Full-Time 4WD Vehicles
The full-time 4wd land cruiser is equipped with the mechanical lock type center deferential system.

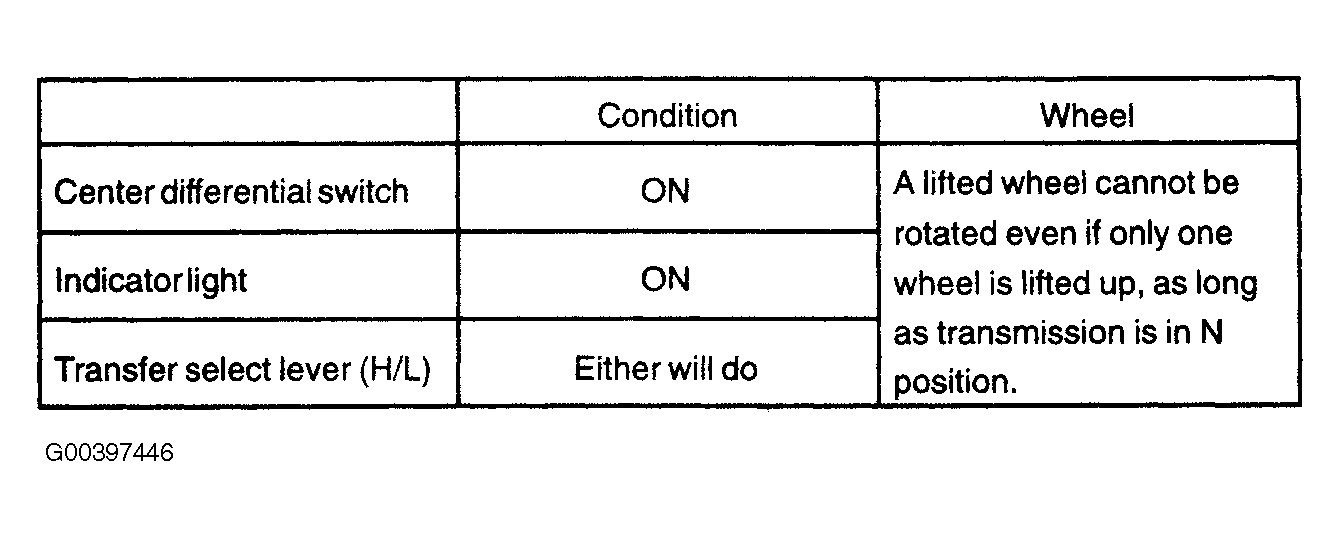

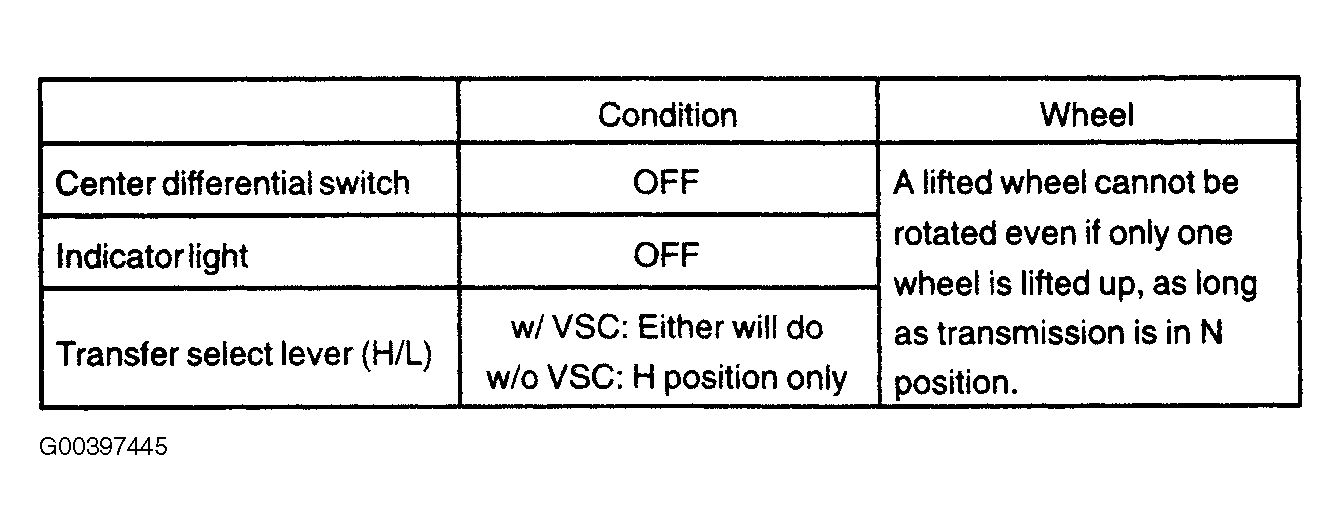

During tests using a brake tester or chassis dynamometer, such as braking force tests or speedometer tests, if only the front or rear wheels are to be rotated, it is necessary to set the position of the center differential to FREE or LOCK depending on the type of the test being performed.

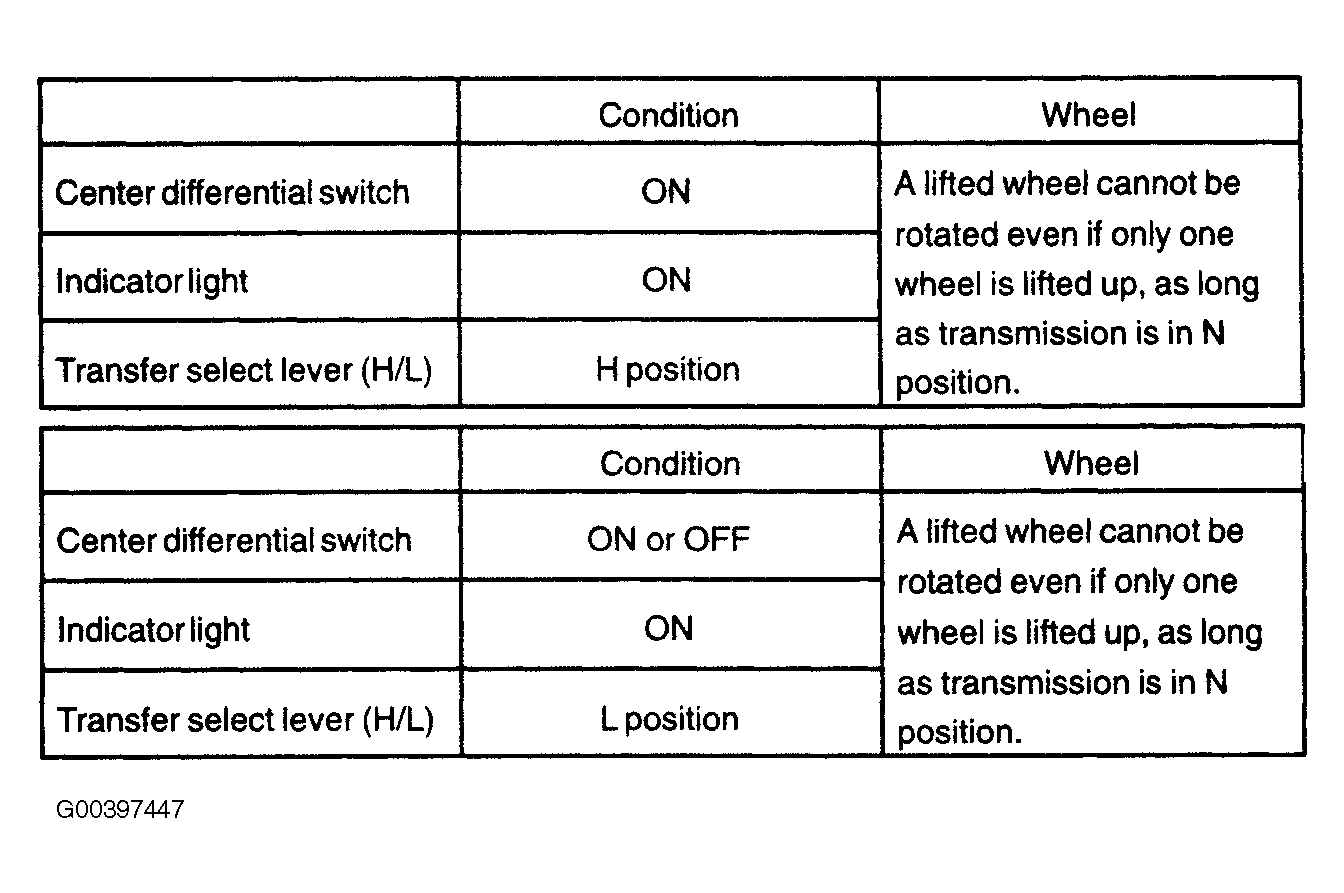

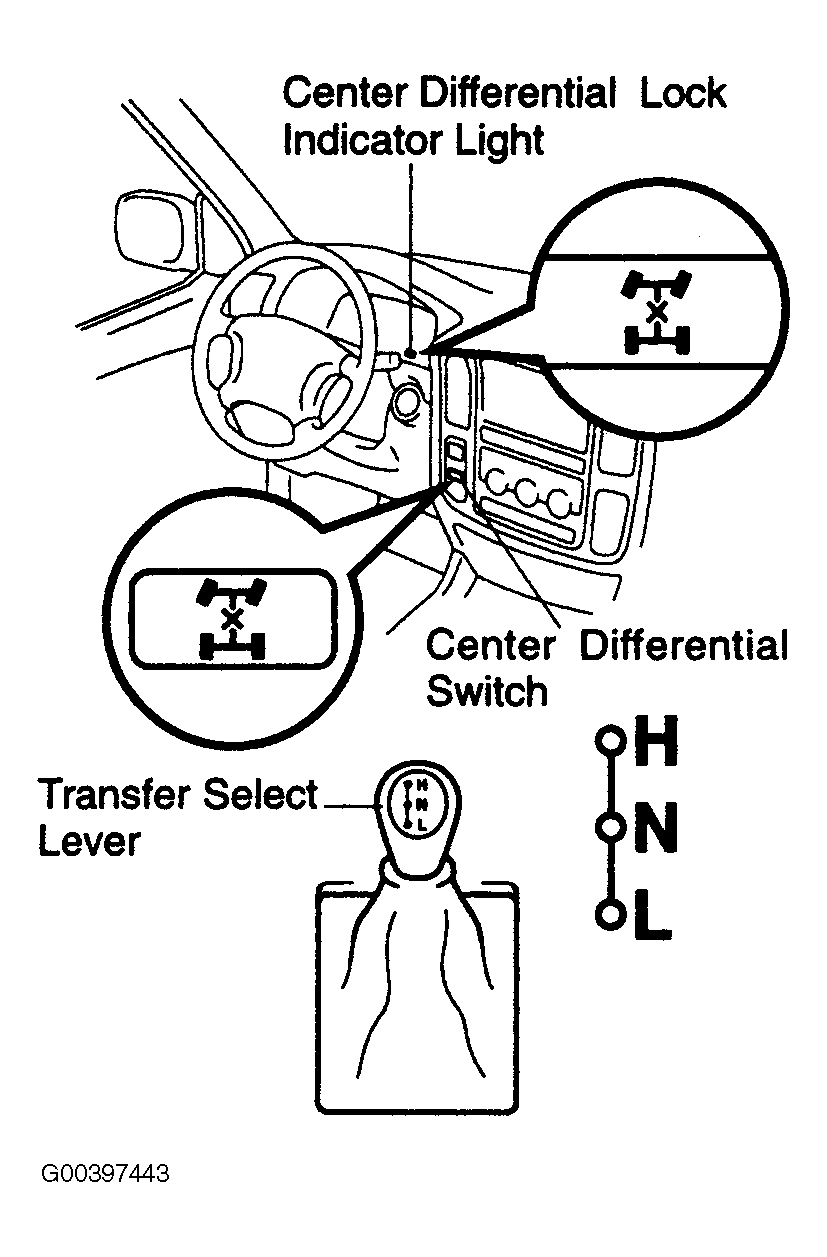

When the transfer select lever is put in "L" position, the center differential is put in LOCK condition regardless of the position of the center differential lock switch.
Center differential "Lock" To "Free" selecting procedure:
- Operate the switch only when all 4 wheels are stopped or driven in a straight line.
- Never operate the switch when any wheel is slipping.
- Never operate the switch when any wheel is spinning freely.
- Never operate the switch when swerving or cornering.
Center differential "Lock" To "Free" selection procedure:

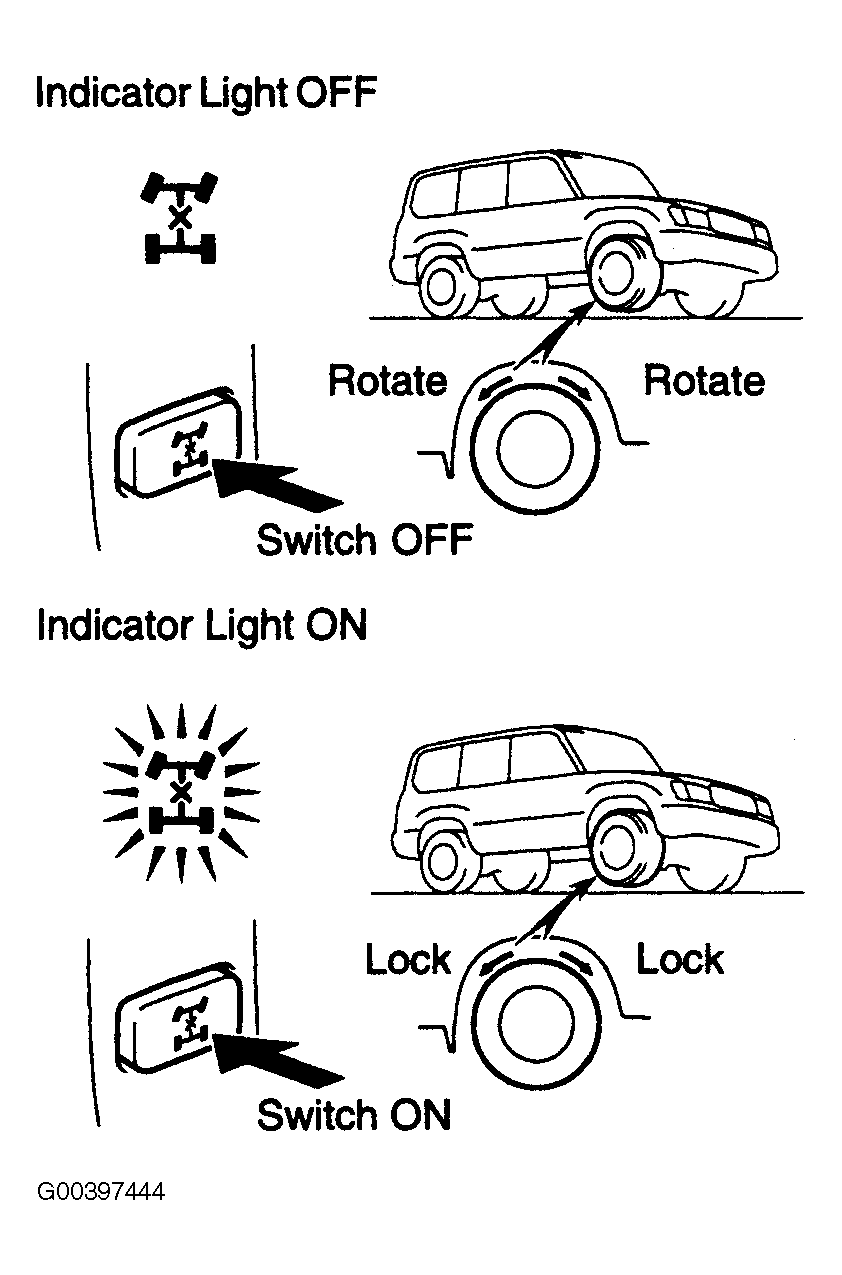

- Move the vehicle forward or backward slightly if the indicator light does not operate correctly when the center differential lock switch is turned ON or OFF.
- Transfer gear "H" To "L" gear shifting procedure:
When shifting, always put the shift lever of the transmission in "N" position. In other positions, the gears of the transfer clash, and switching cannot be performed.
