Power Steering Gear: Components

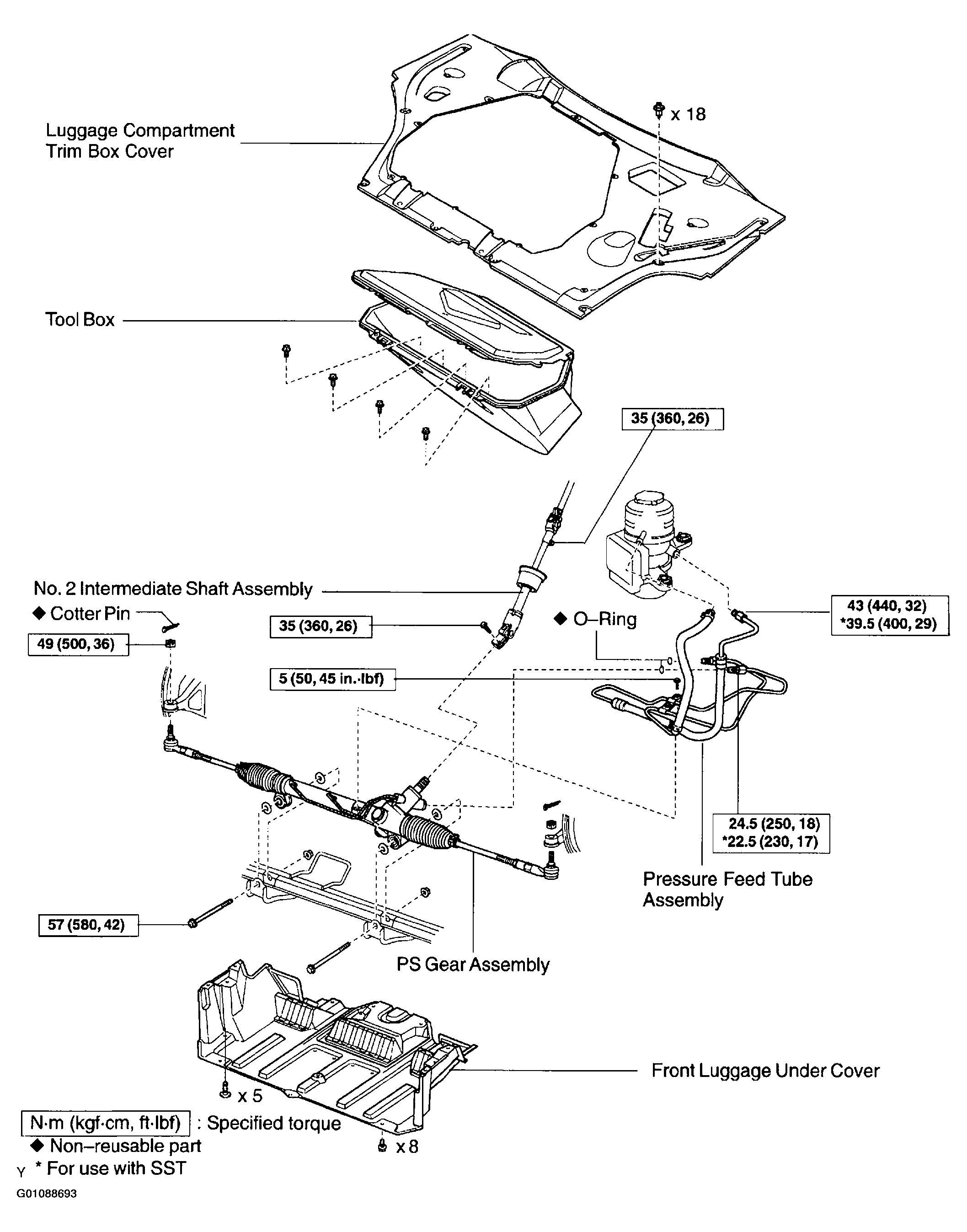

Fig 1: Locating Steering Gear & Surrounding Components
G01088693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

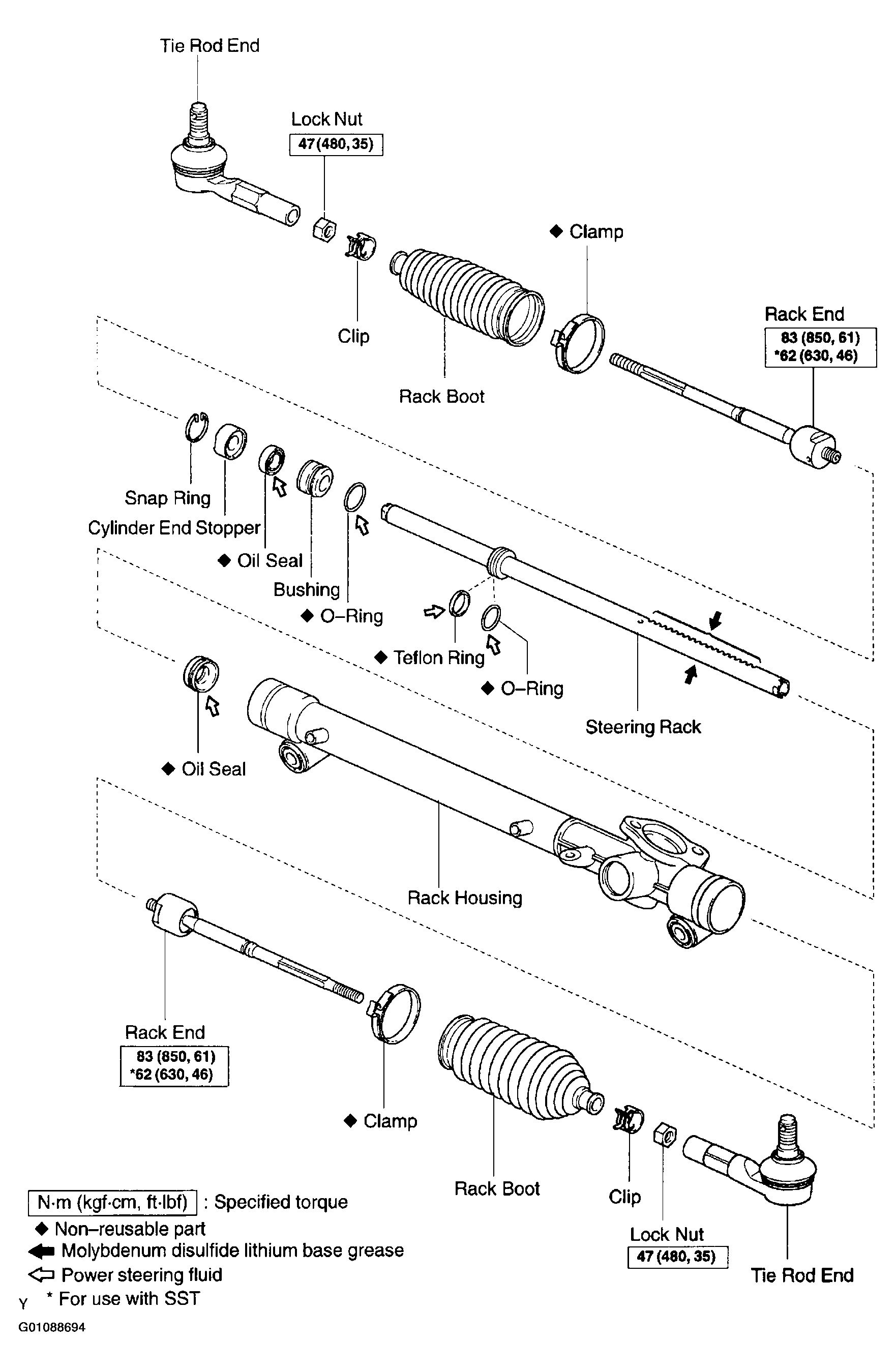

Fig 2: Identifying Steering Gear-Related Components (1 Of 2)
G01088694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

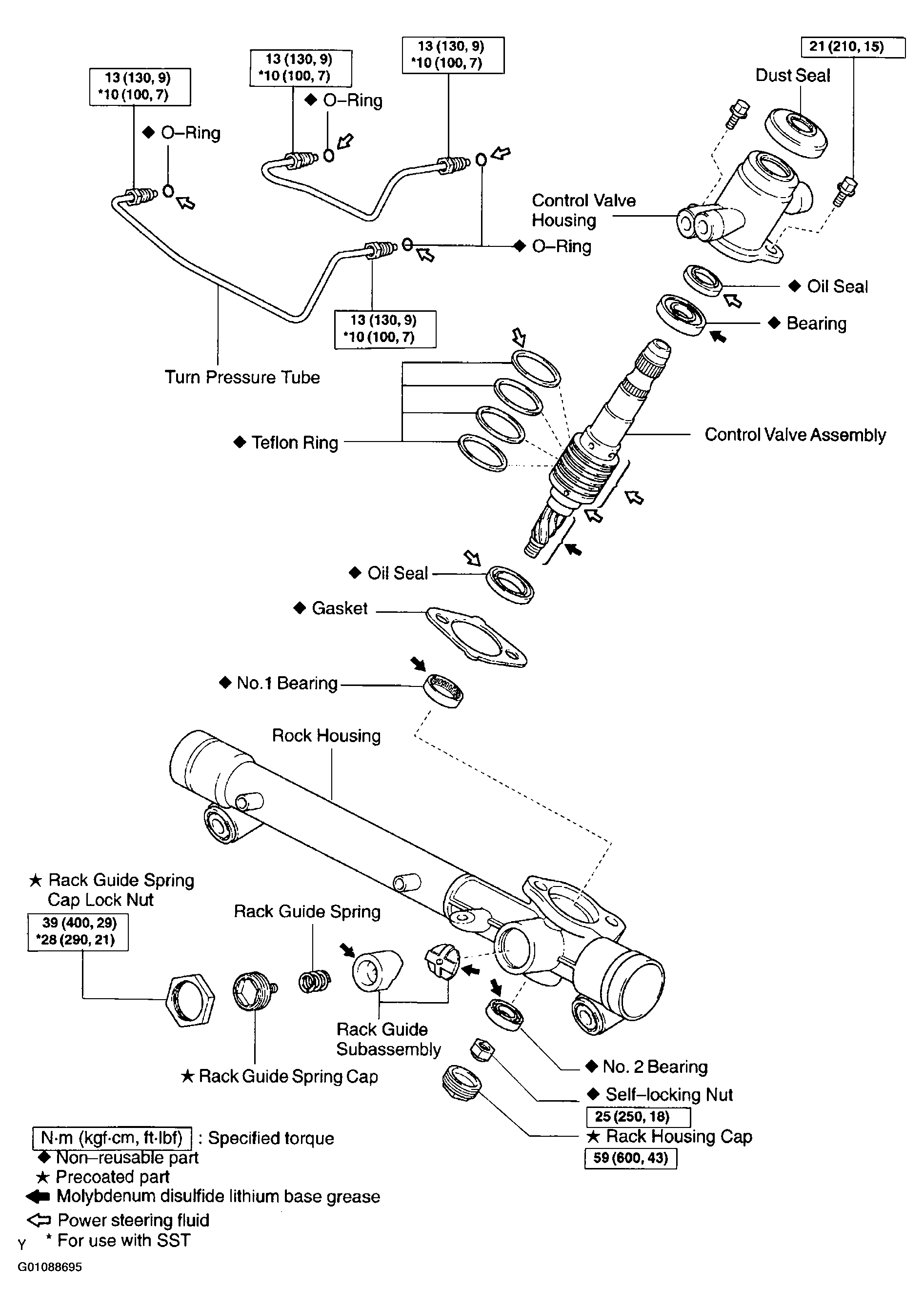

Fig 3: Identifying Steering Gear-Related Components (2 Of 2)
G01088695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
