Radiator & Condenser Module Components

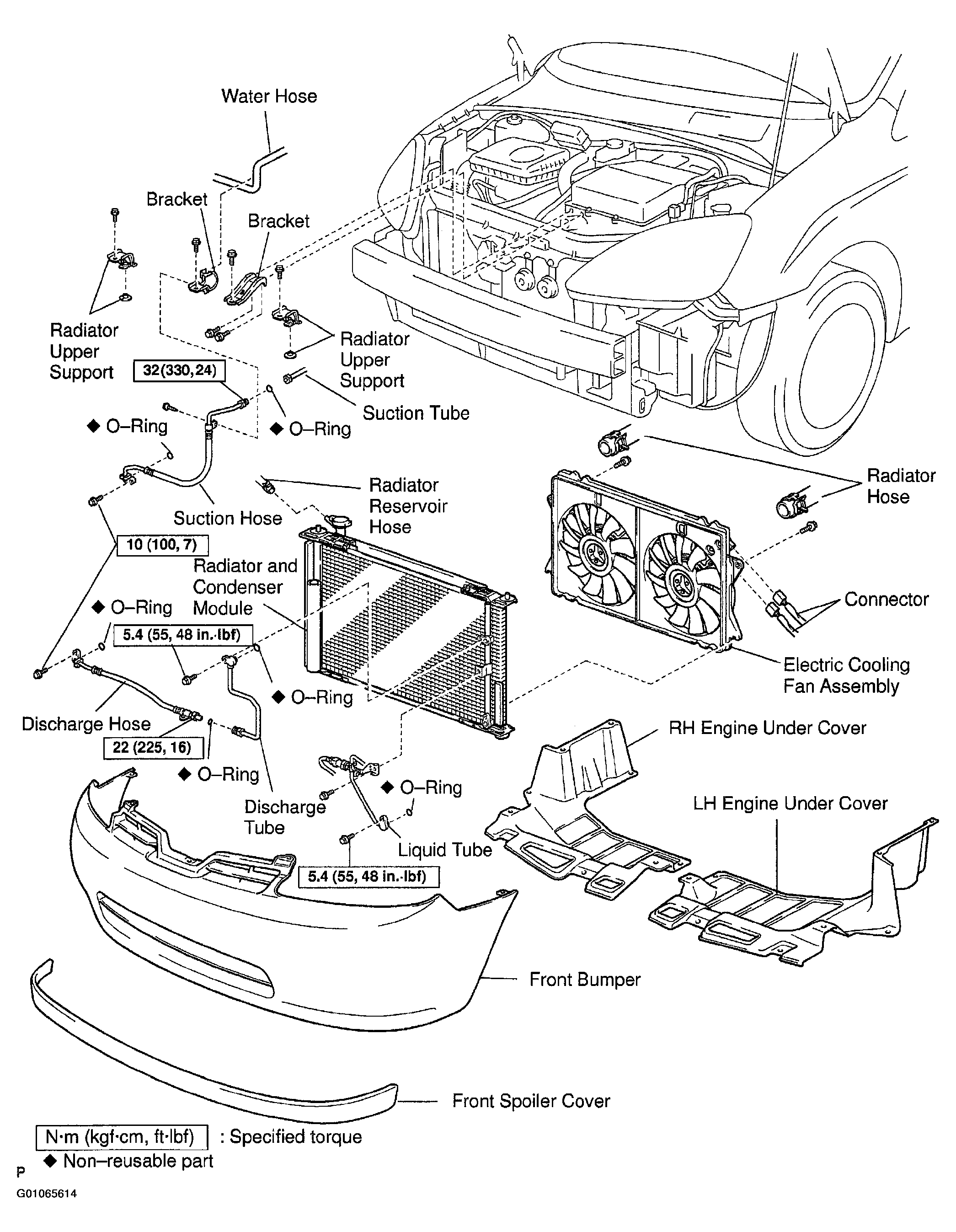

Fig 1: Locating Radiator & Condenser Module Related Components
G01065614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
