Body Ecu

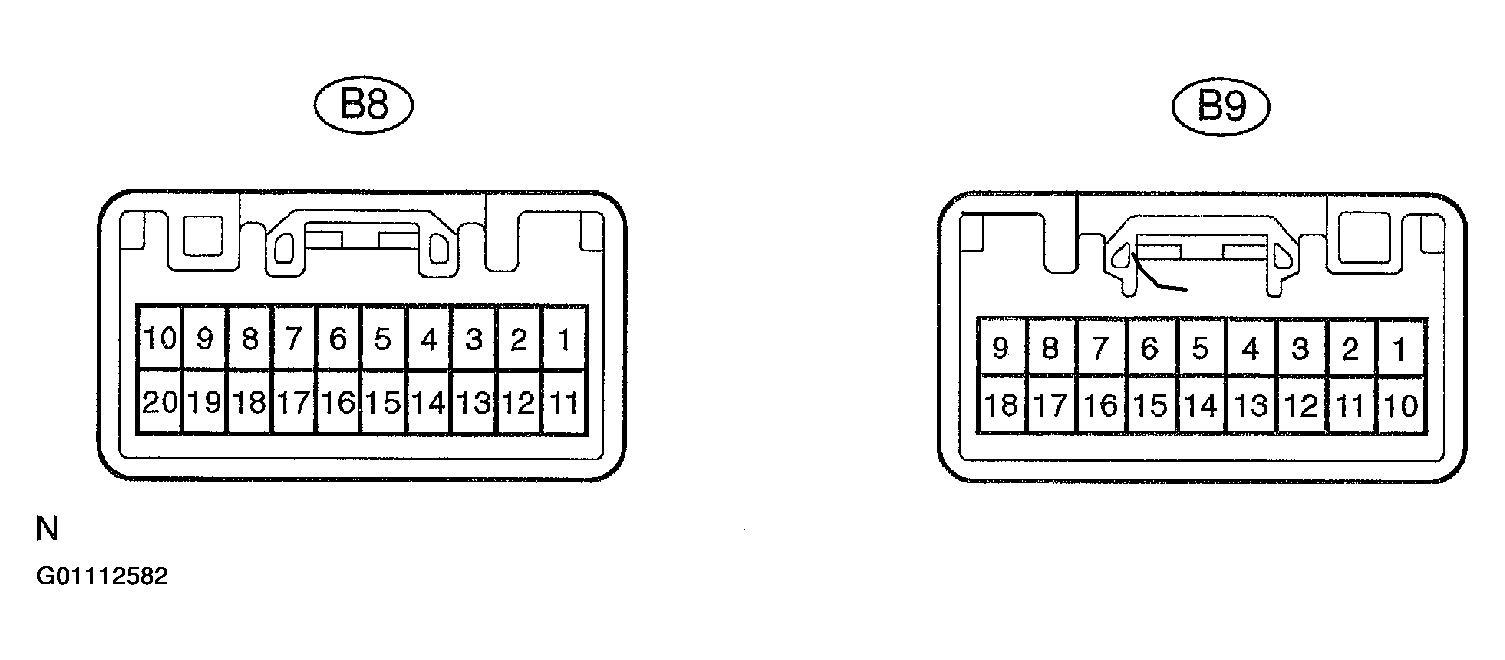

Fig 1: Identifying Body ECU Connector B8 & B9 Terminals
G01112582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

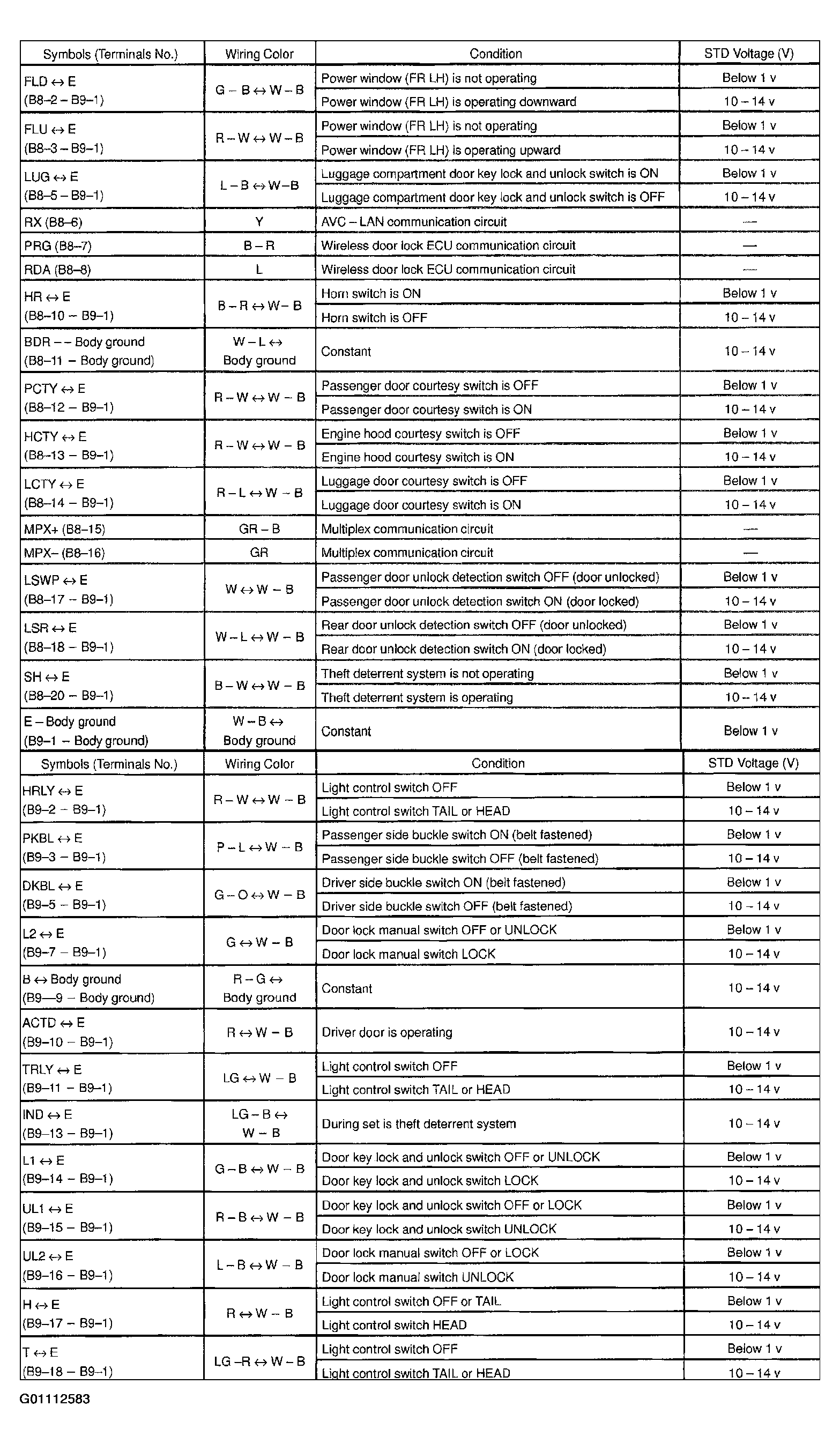

Fig 2: Body ECU Terminal Specifications
G01112583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
