Automatic Transaxle Fluid Temperature Sensor

ATF temperature sensor (located on wiring harness inside transaxle oil pan) converts fluid temperature into a resistance value, which is input to ECM. See Fig 2.

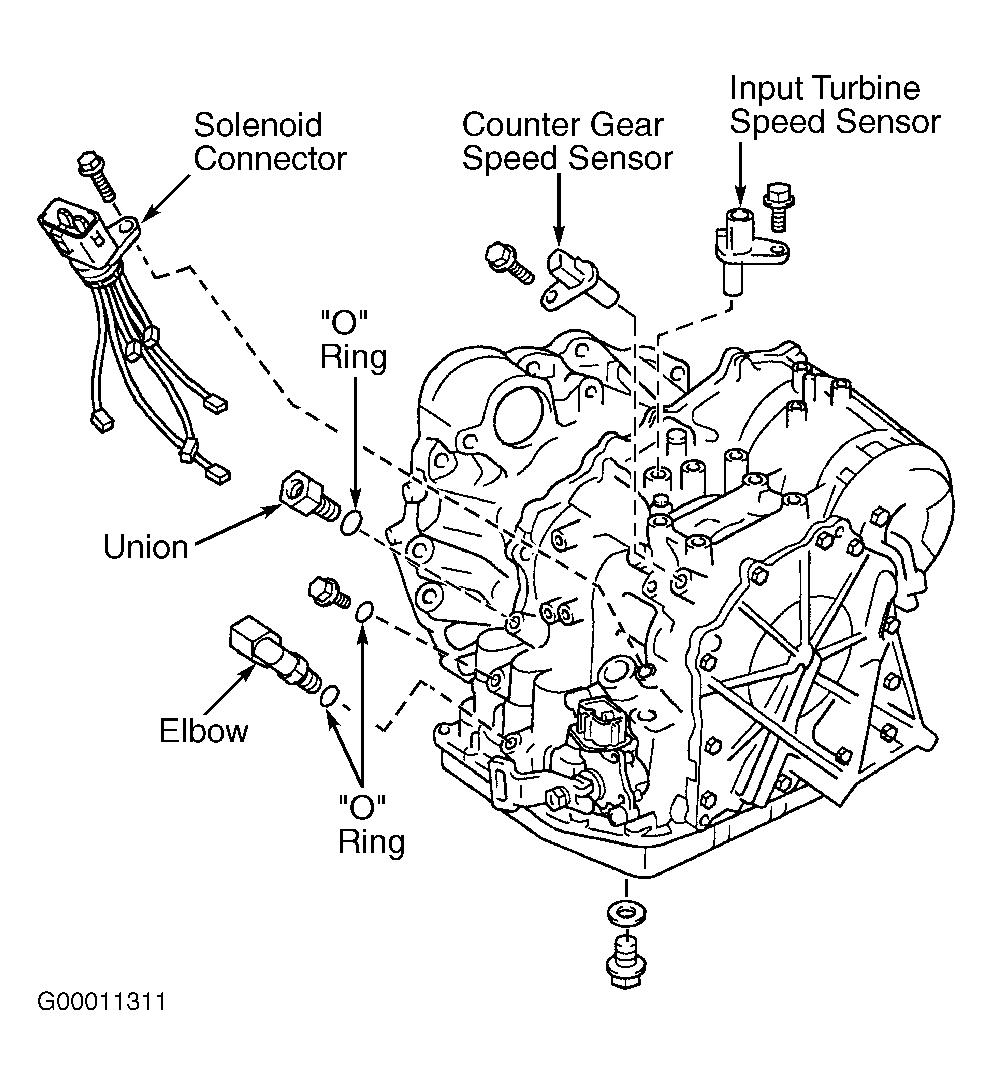

Fig 1: Identifying 10-Pin Solenoid Connector & Speed Sensor Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

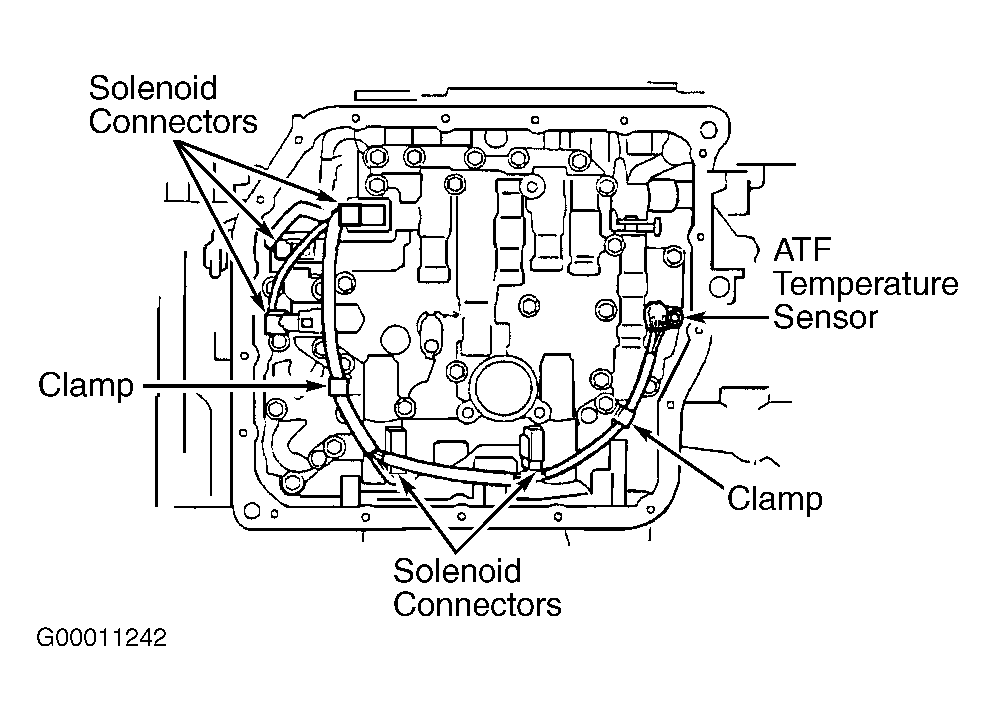

Fig 2: Locating Temperature Sensor & Solenoid Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
