Charging System - Generators & Regulators: Generator: Disassembly

REMOVE REAR END COVER

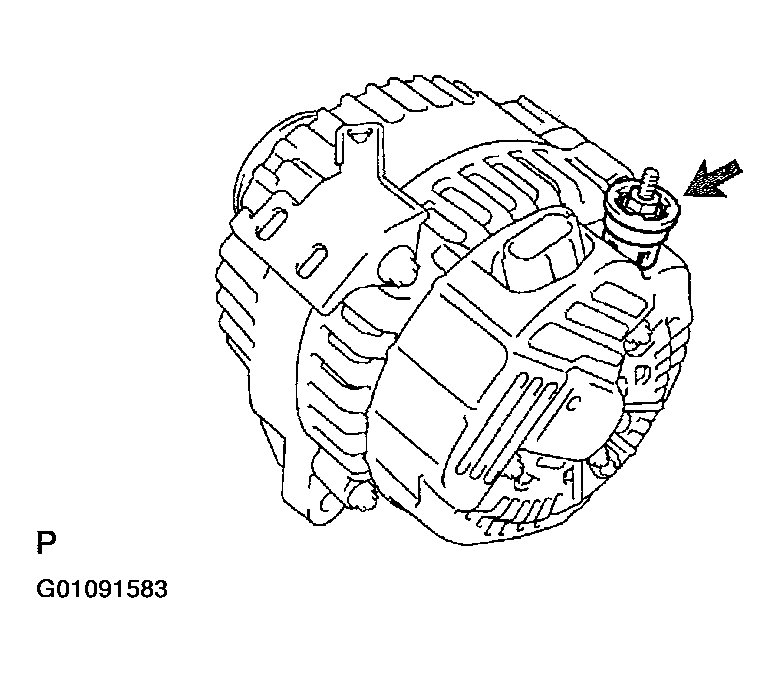

1. Remove the nut and terminal insulator.

  Fig 1: Removing Rear End Cover (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

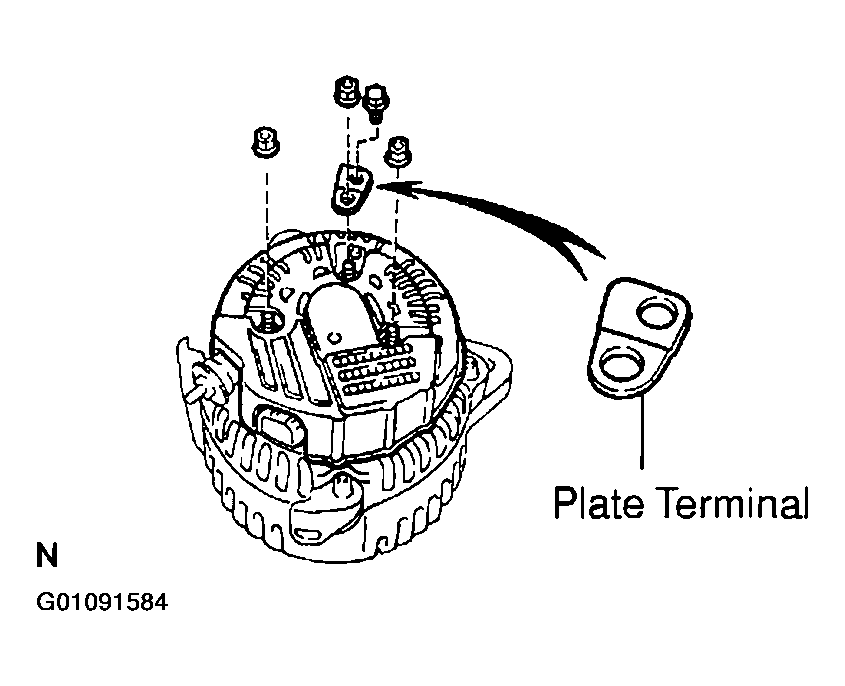

2. Remove the bolt, 3 nuts, plate terminal, end cover and brush holder cover.

  Fig 2: Removing Rear End Cover (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

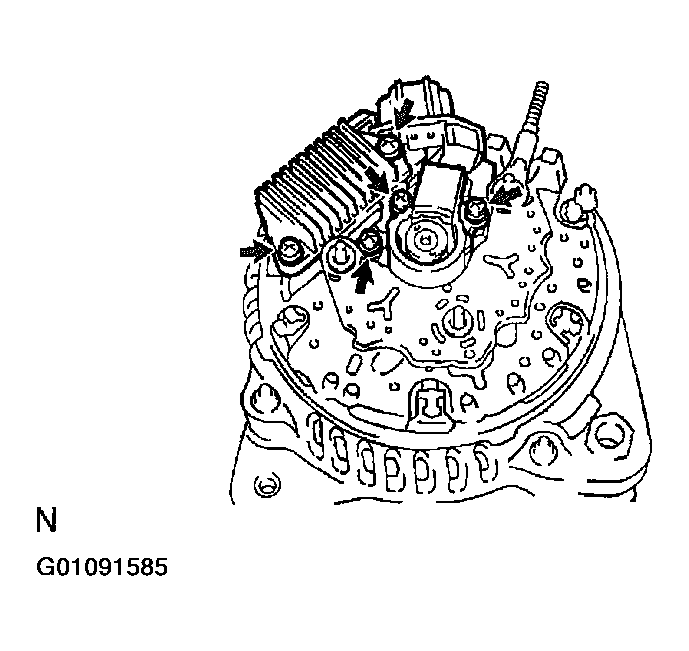

REMOVE BRUSH HOLDER AND VOLTAGE REGULATOR
1. Remove the 5 screws, brush holder and voltage regulator.
2. Remove the seal plate from the rectifier end frame.

  Fig 3: Removing Brush Holder & Voltage Regulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

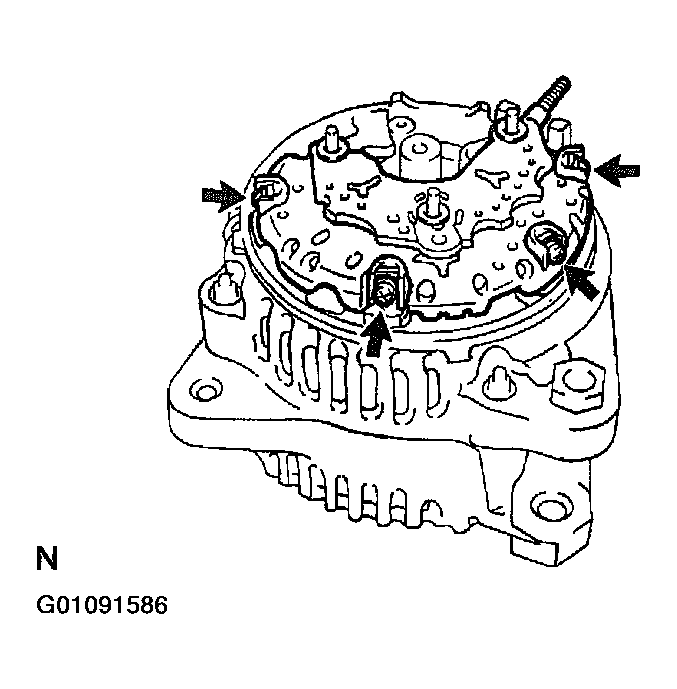

REMOVE RECTIFIER HOLDER
1. Remove the 4 screws and rectifier holder.
2. Remove the 4 rubber insulators.

  Fig 4: Removing Rectifier Holder
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PULLEY

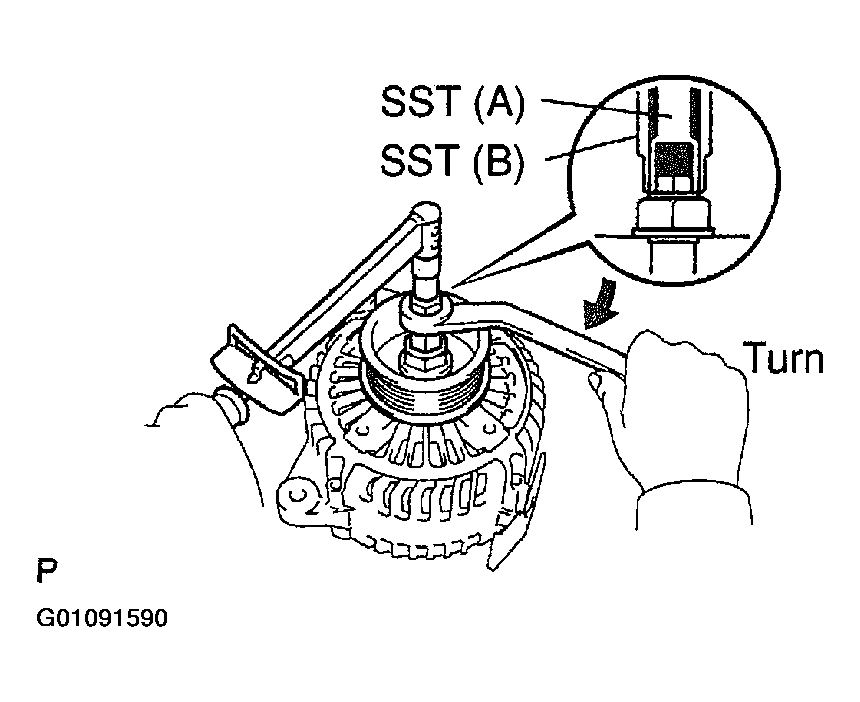

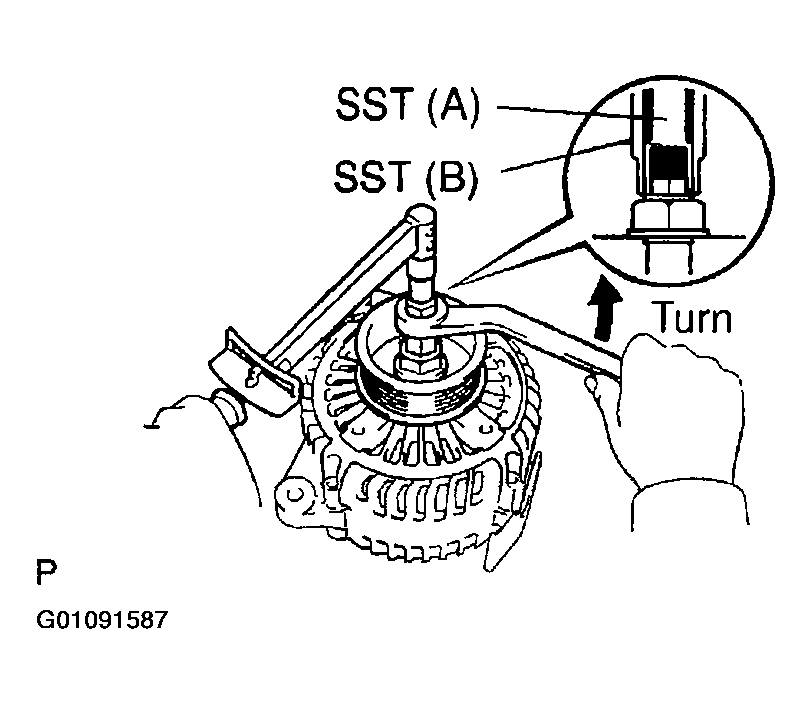

1. Hold SST (A) with a torque wrench, and tighten SST (B) clockwise to the specified torque.
  1. SST 09820-63011
  2. Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)
2. Check that SST (A) is secured to the rotor shaft.

  Fig 5: Using SSTs To Remove Generator Pulley (1 Of 4)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

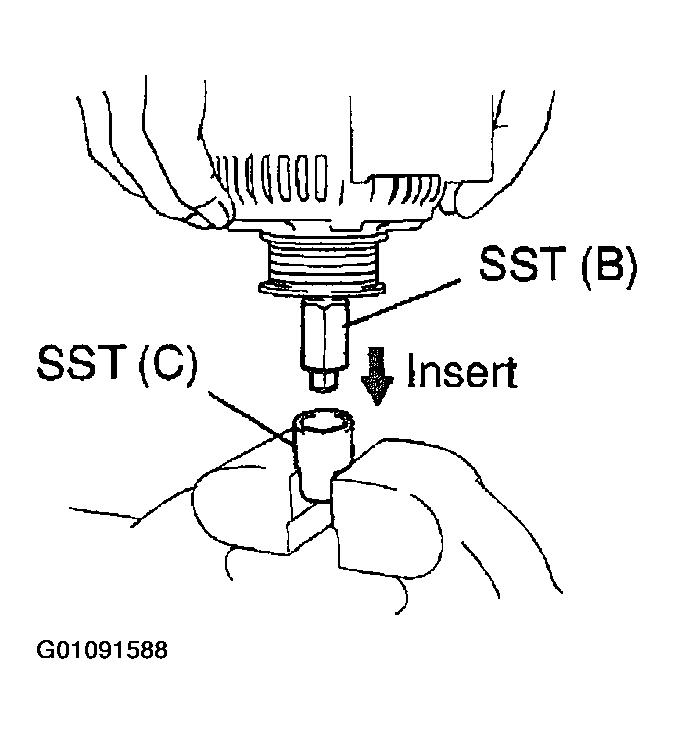

3. Mount SST (C) in a vise.
4. Insert SST (B) into SST (C), and attach the pulley nut to SST (C).

  Fig 6: Using SSTs To Remove Generator Pulley (2 Of 4)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

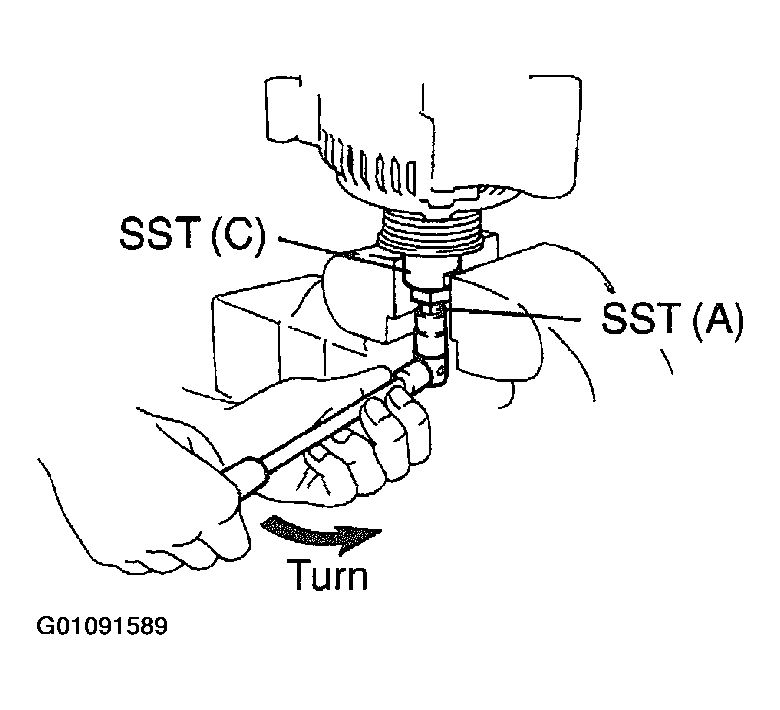

5. To loosen the pulley nut, turn SST (A) in the direction shown in the illustration.
  NOTE: To prevent damage to the rotor shaft, do not loosen the pulley nut more than one-half of a turn.
6. Remove the generator from SST (C).

  Fig 7: Using SSTs To Remove Generator Pulley (3 Of 4)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Turn SST (B), and remove SST (A and B).
8. Remove the pulley nut and pulley.

  Fig 8: Using SSTs To Remove Generator Pulley (4 Of 4)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RECTIFIER END FRAME

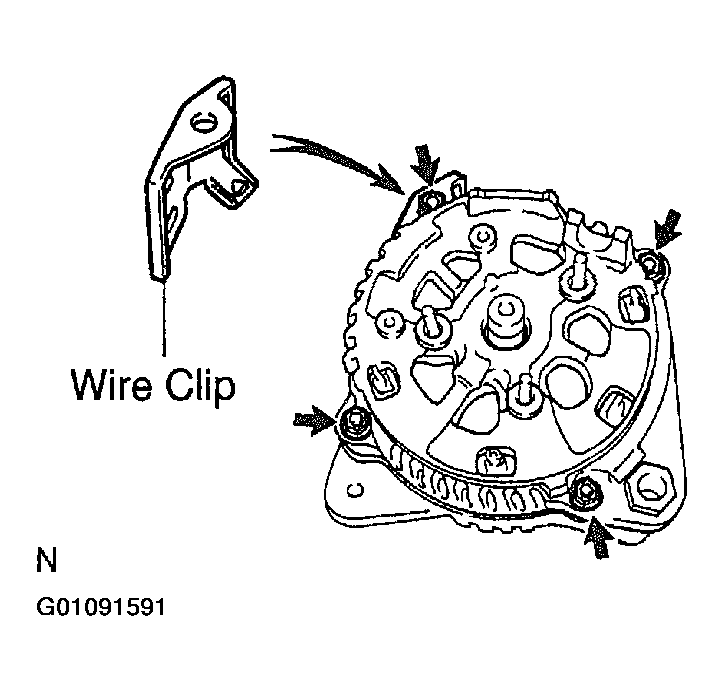

1. Remove the 4 nuts and wire clip.

  Fig 9: Removing Rectifier End Frame
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

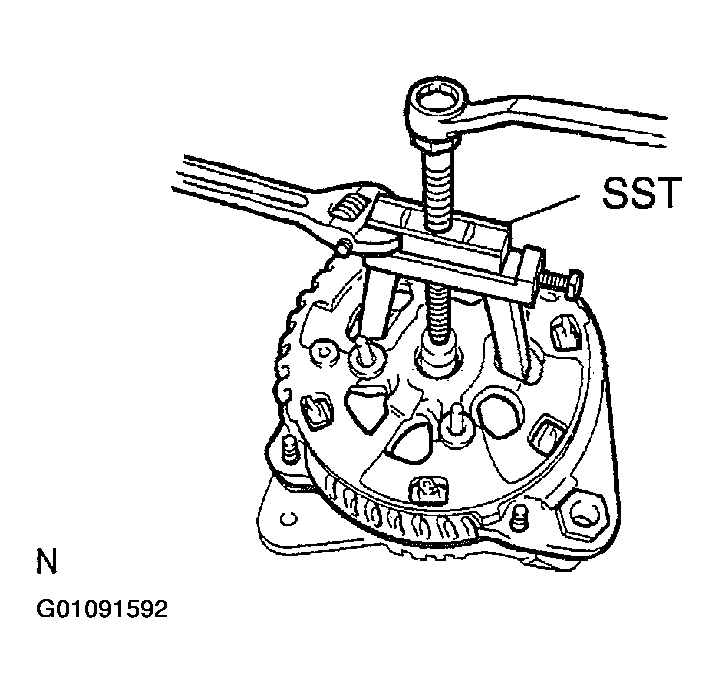

2. Using SST, remove the rectifier end frame.
  1. SST 09286-46011
3. Remove the generator washer from the rotor
REMOVE ROTOR FROM DRIVE END FRAME

Fig 10: Removing Rotor From Drive End Frame
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
