Charging System - Generators & Regulators: Generator: Replacement

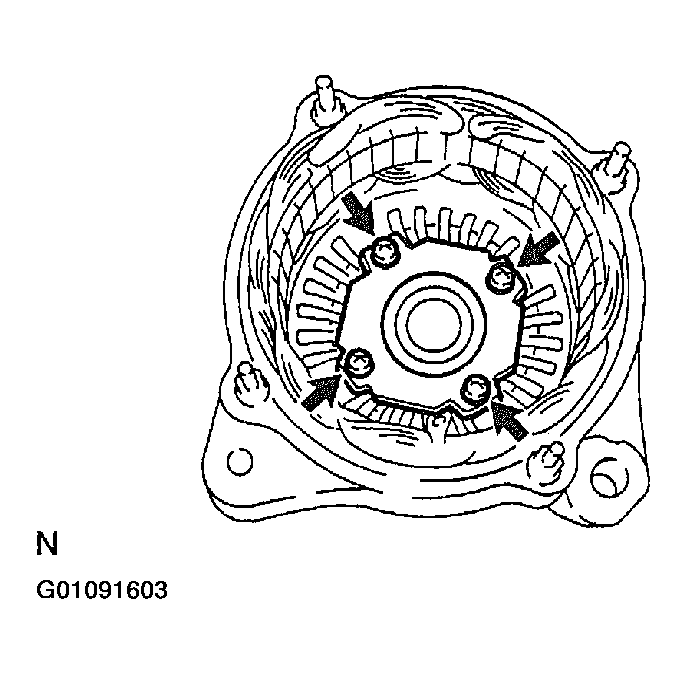

  1. REPLACE FRONT BEARING
    1. Remove the 4 screws and bearing retainer.
      Fig 1: Replacing Front Bearing
      G01091603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

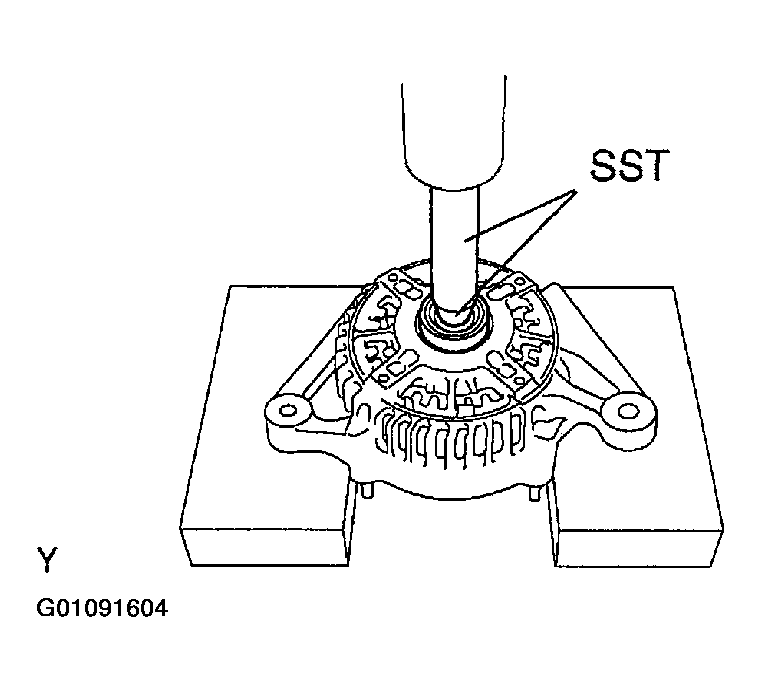

    2. Using SST and a press, press out the bearing.
        Fig 2: Using SST To Remove Front Bearing
        G01091604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. SST 09950-60010 (09951-00350), 09950-70010 (09951-07100)

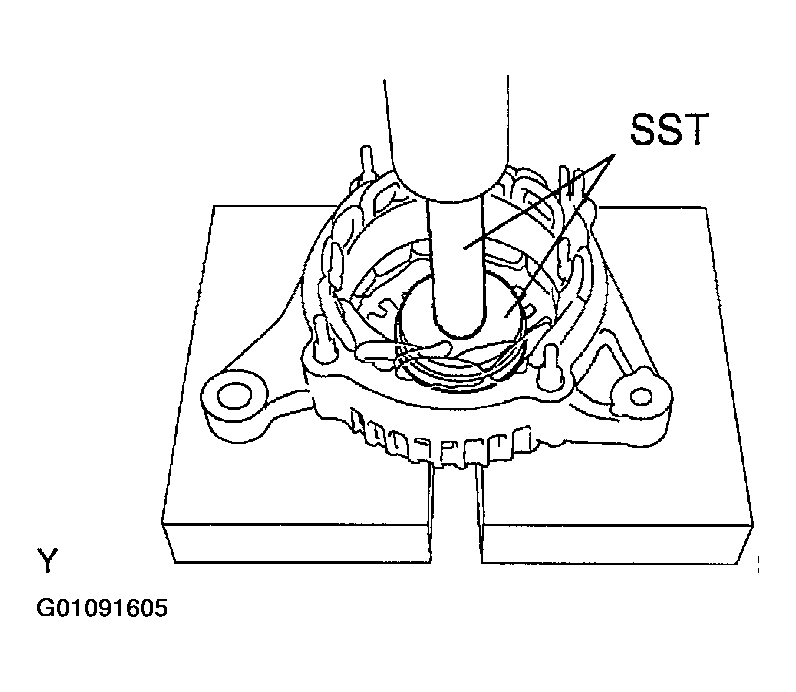

    3. Using SST and a press, press in a new bearing.
        Fig 3: Using SST To Install Front Bearing
        G01091605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. SST 09950-60010 (09951-00530), 09950-70010 (09951-07100)
    4. Install the bearing retainer with the 4 screws.
      1. Torque: 3.0 N.m (31 kgf.cm, 27 in..lbf)
  2. REPLACE REAR BEARING

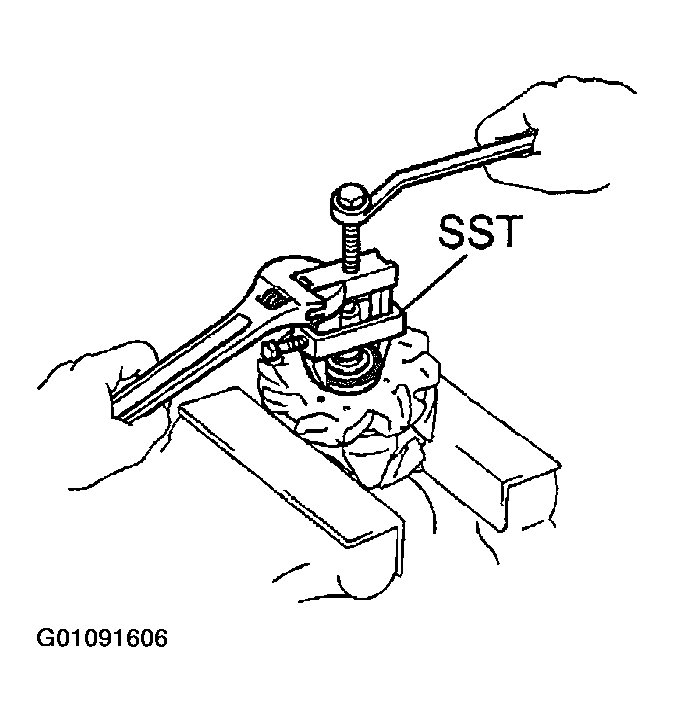

    1. Using SST, remove the bearing cover (outside) and bearing.
        Fig 4: Using SST To Remover Bearing
        G01091606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. SST 09821-00021
      NOTE: Be careful not to damage the fan.

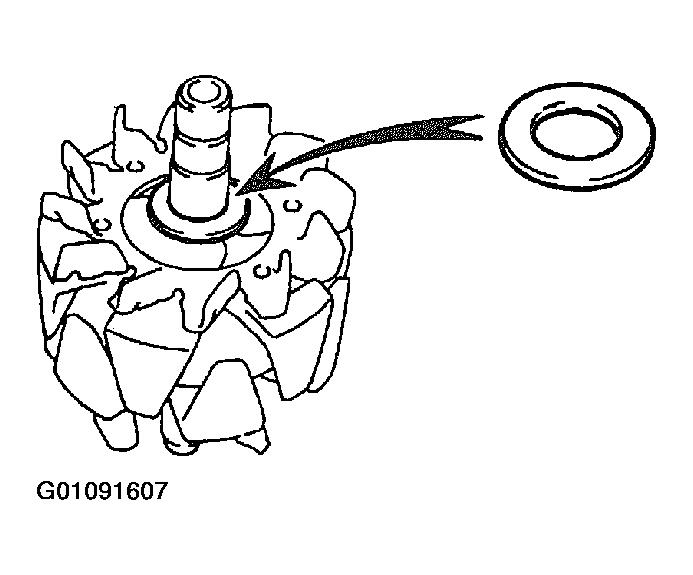

    2. Remove the bearing cover (inside).
      Fig 5: Removing Inside Bearing Cover
      G01091607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Place the bearing cover (inside) on the rotor.

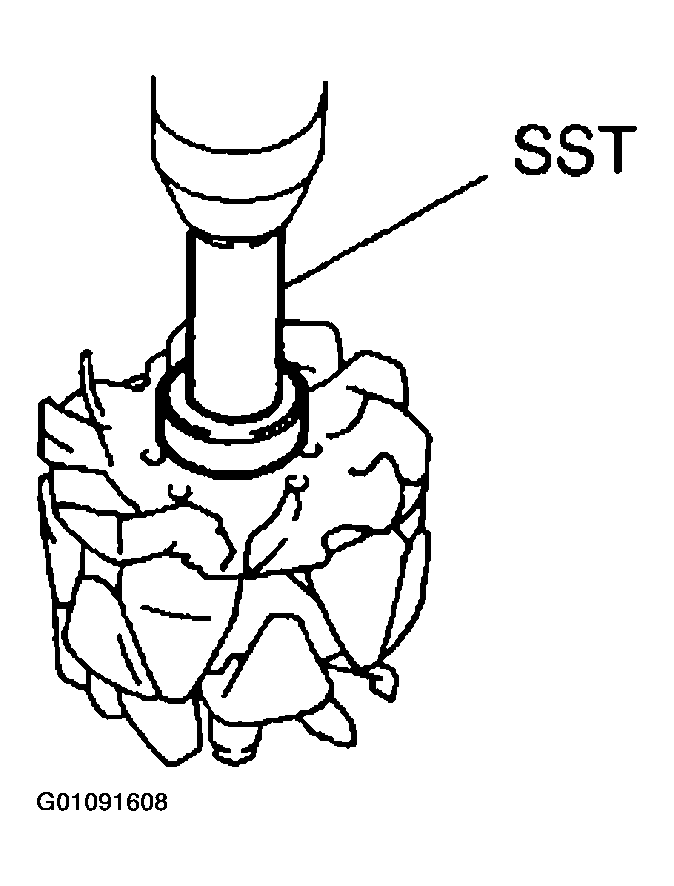

    4. Using SST and a press, press in a new bearing.
        Fig 6: Using SST To Install Rear Bearing (1 Of 2)
        G01091608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. SST 09820-00031

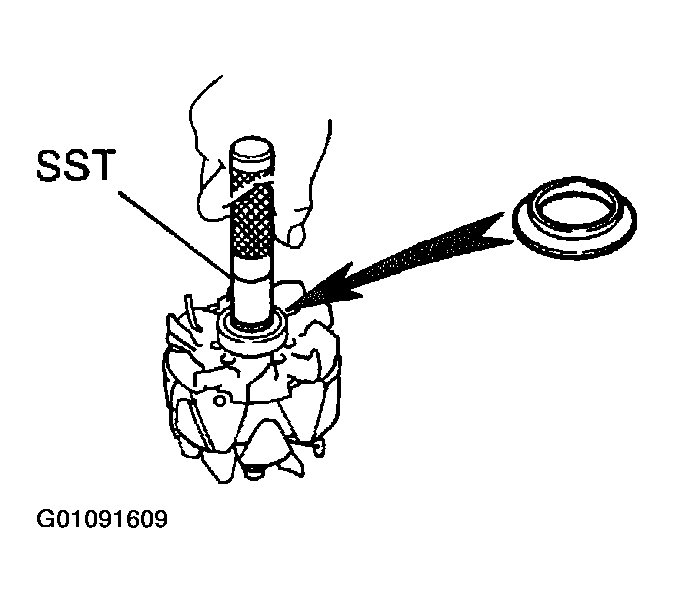

    5. Using SST, push in the bearing cover (outside).
        Fig 7: Using SST To Install Rear Bearing (2 Of 2)
        G01091609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. SST 09825-76010
