Rear A/C Unit: Components

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

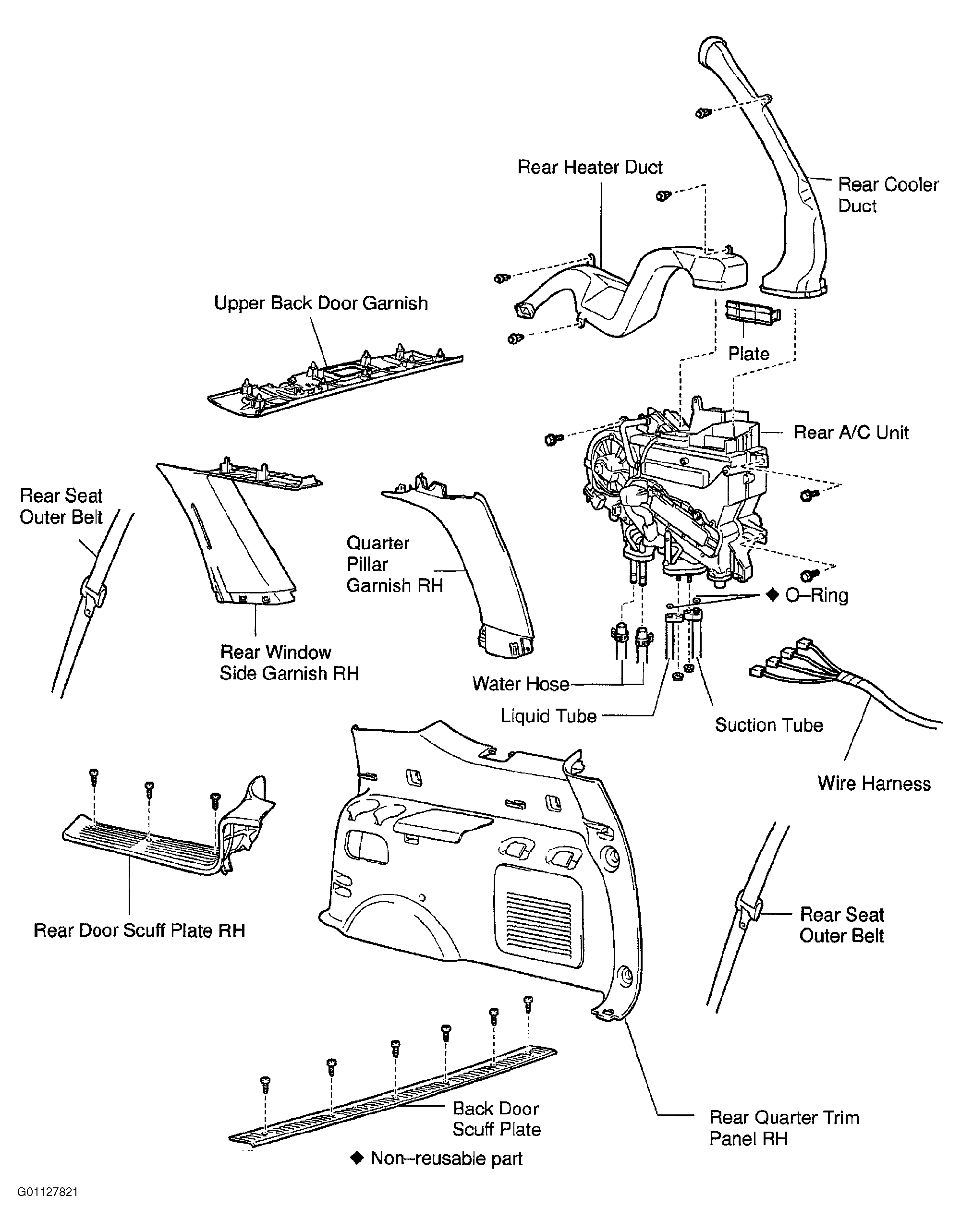

Fig 1: Locating Rear A/C Unit Components (1 Of 2)

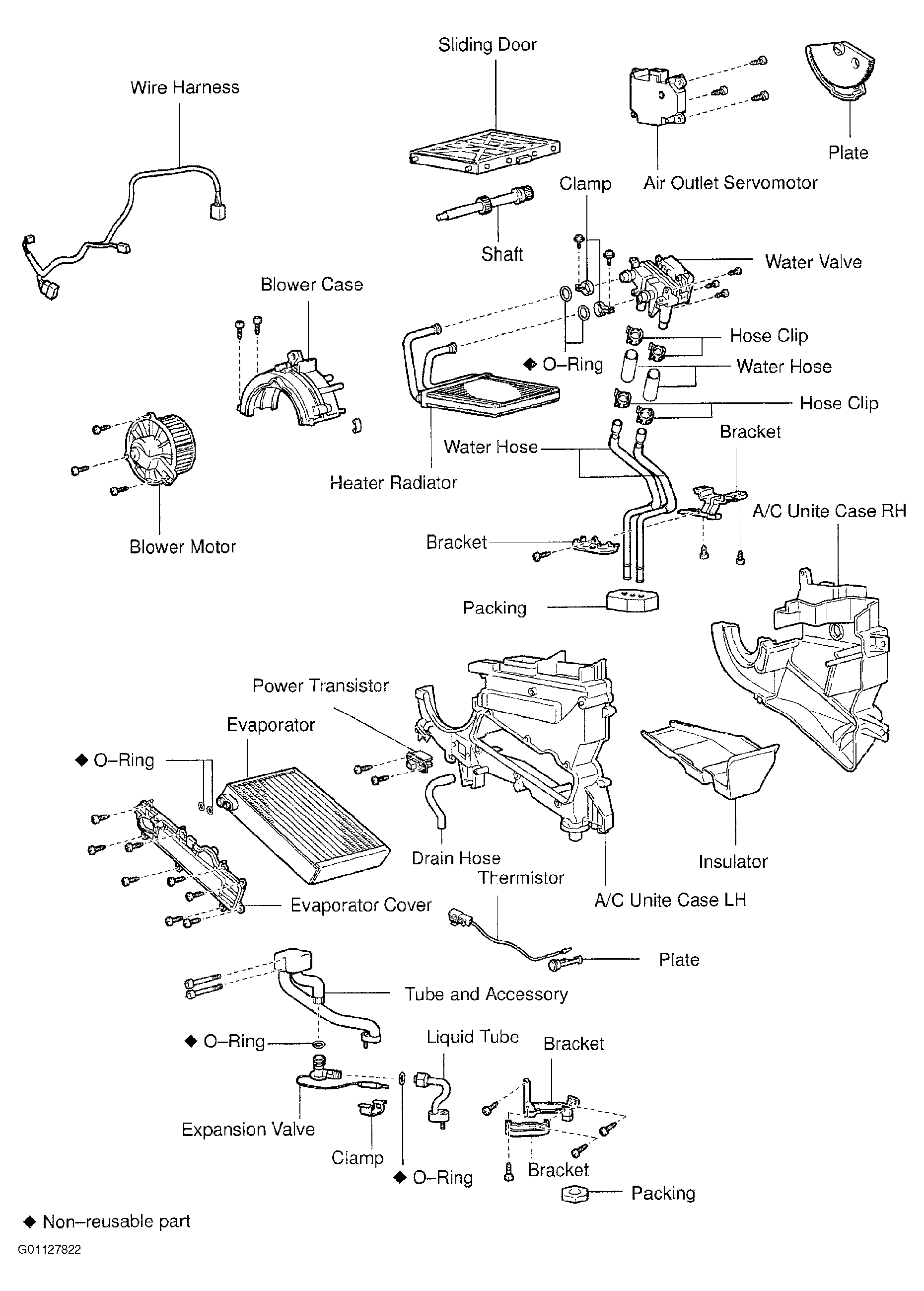

Fig 2: Locating Rear A/C Unit Components (2 Of 2)
