Rear A/C Unit: Reassembly

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

Assemble rear A/C unit :
1. Install the insulator and heater radiator.
2. Install the shaft and sliding door.
3. Assemble the A/C unit and install the 10 screws.
4. Install the blower case, clamp and 2 screws.
Fig 1: Installing Rear A/C Unit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install air outlet servomotor :

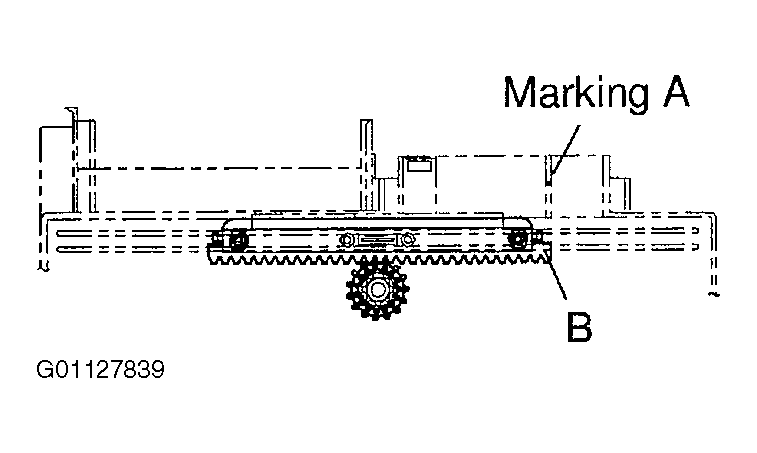

1. Align the marking A on the grid part of the case with the side of the sliding door rack B. See Fig 2.

  Fig 2: Locating Case & Slide Alignment Marks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the servomotor with 3 screws.
HINT:

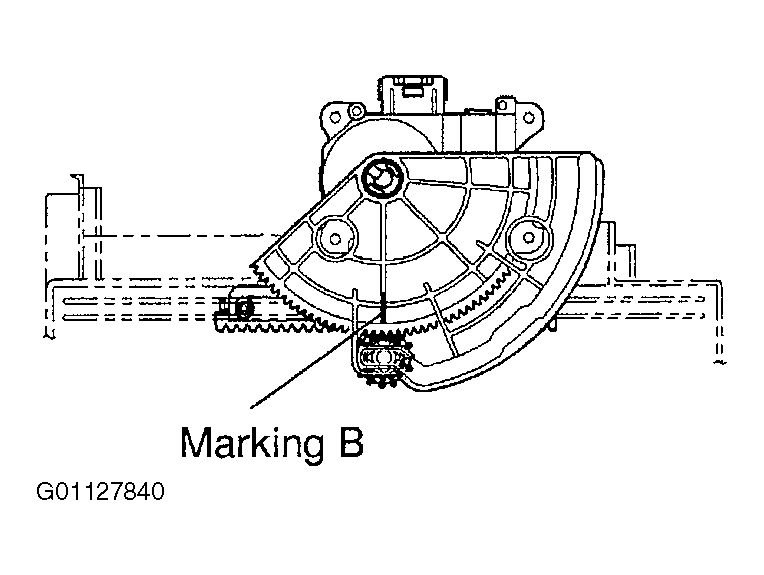

The projection on the gear (marking B) shall be positioned vertically. See Fig 3.
Install evaporator .
Install expansion valve .
Install water valve .
Install thermistor .
Install power transistor .
