Stop Light System: Inspection

WARNING: This page is about a different car, the 2002 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

Inspect Stop Light Switch Continuity

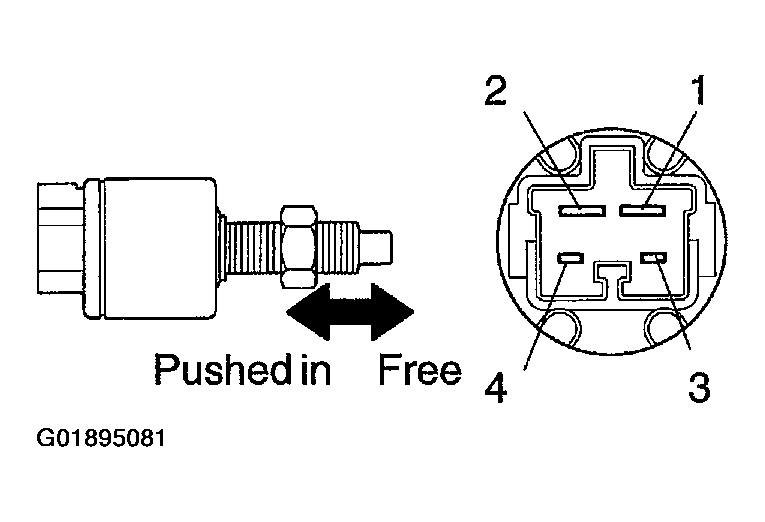

Fig 1: Identifying Stop Light Switch Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

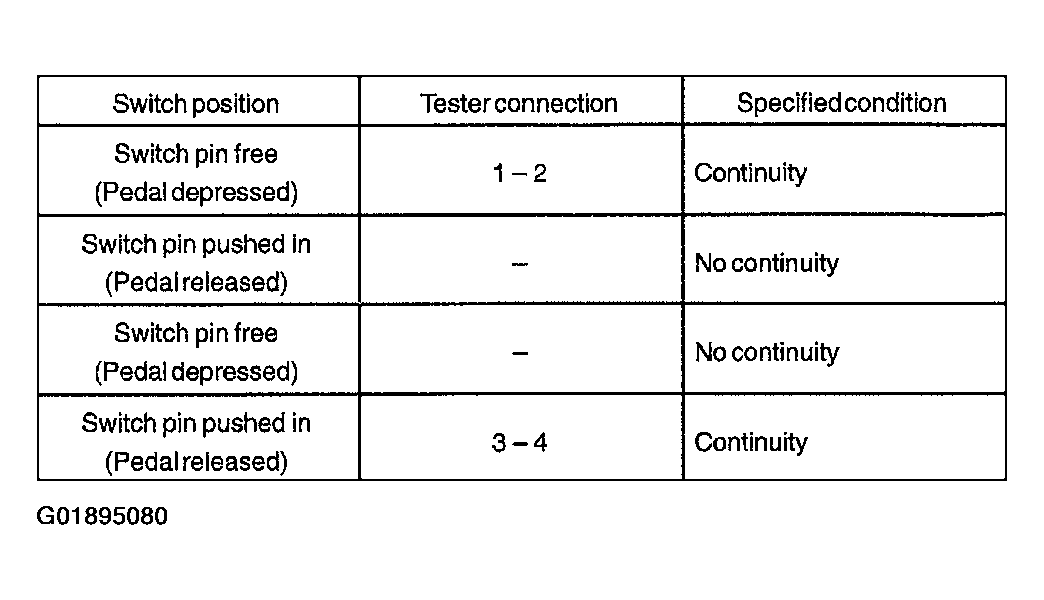

Fig 2: Displaying Continuity Based On Switch Position
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
Inspect HI-Mounted Stop Light Continuity
Using an ohmmeter, check that continuity exists between terminals.

If continuity is not as specified, replace the light assembly.

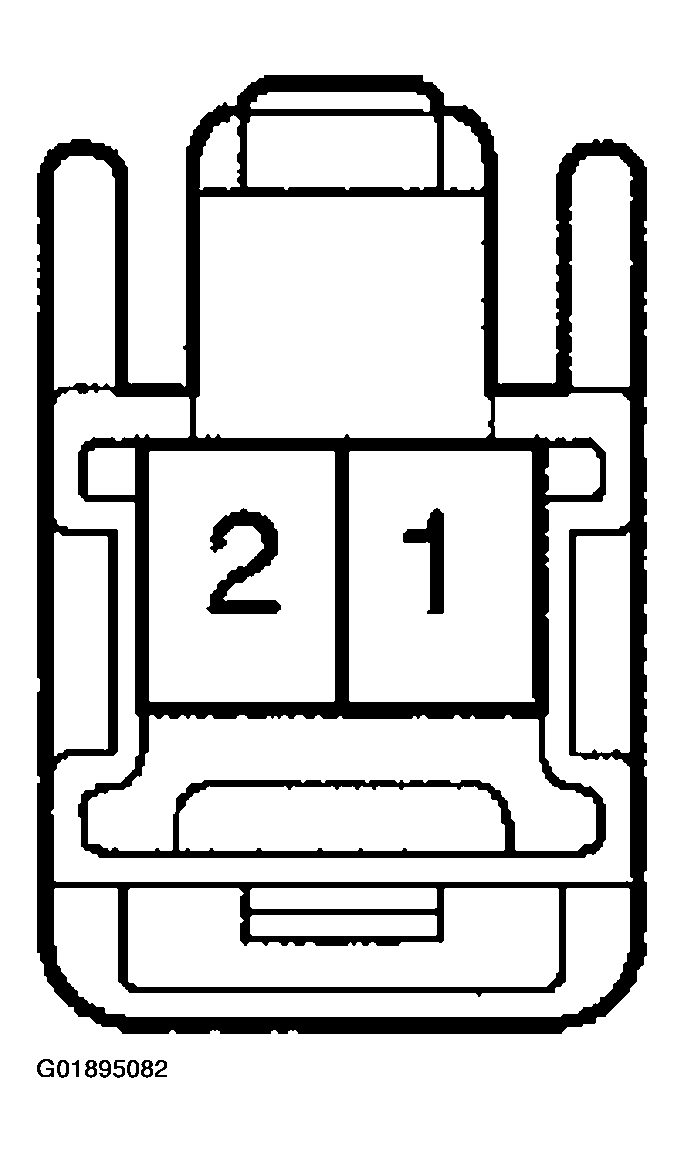

Fig 3: Identifying HI-Mounted Stop Light Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
