Power Steering Gear: Components

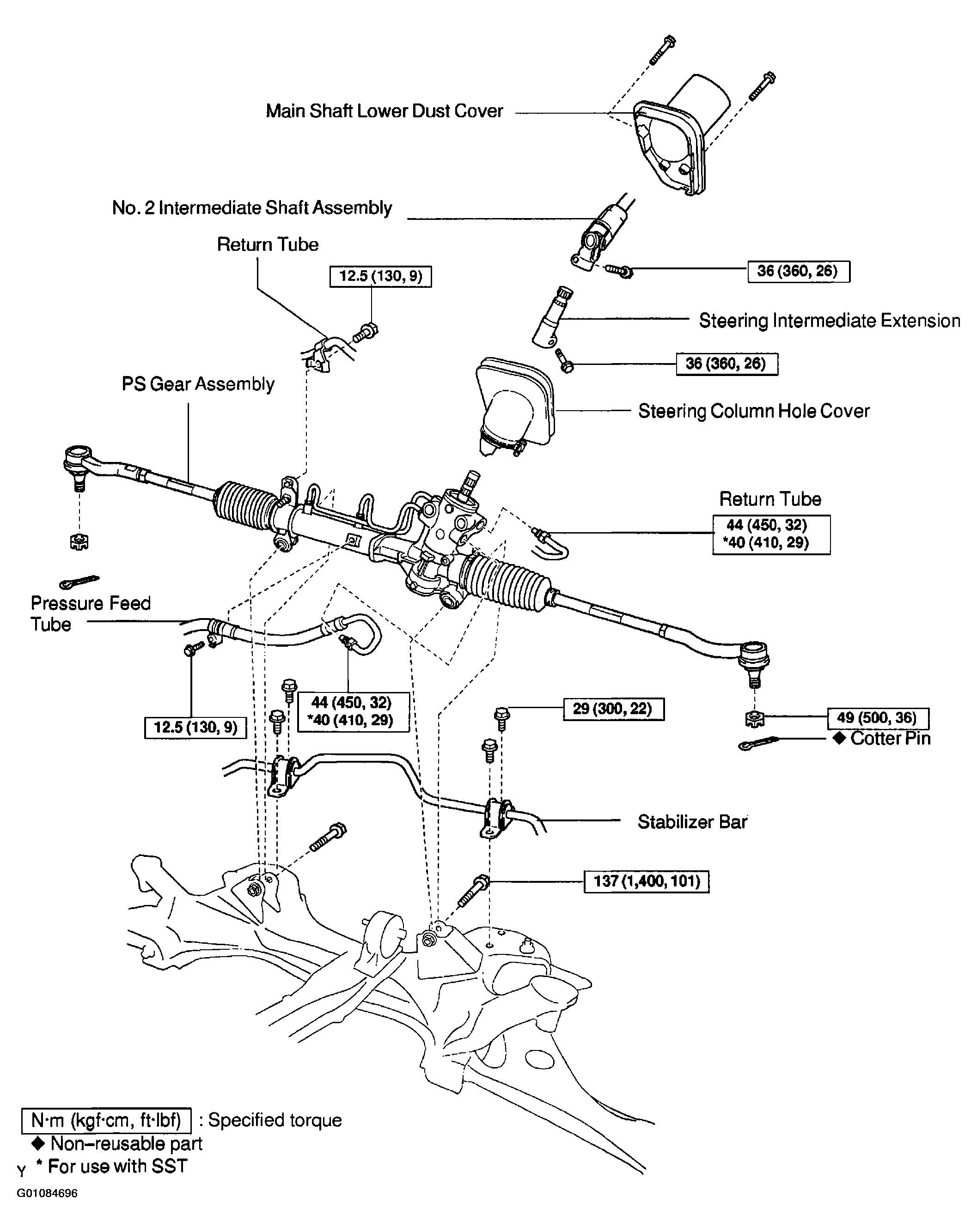

Fig 1: Identifying Components For Power Steering Gear Removal
G01084696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Exploded View Of Power Steering Gear (1 Of 2)
G01084697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

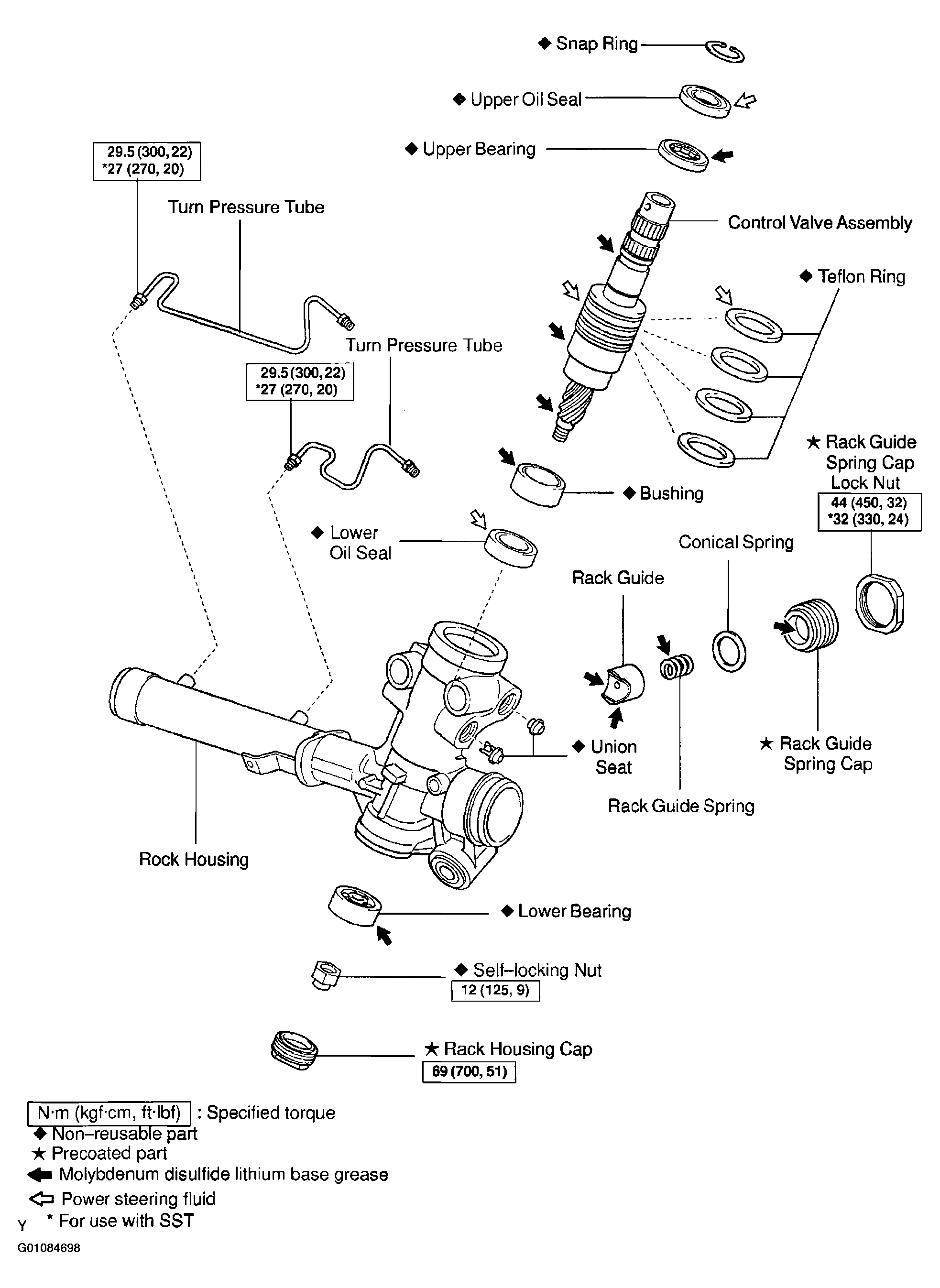

Fig 3: Exploded View Of Power Steering Gear (2 Of 2)
G01084698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
