Shift Control Cable

NOTE: Manufacturer does not provide removal and installation procedure of shift control cable. Only an exploded view is given. See Fig 1-Fig 5 .

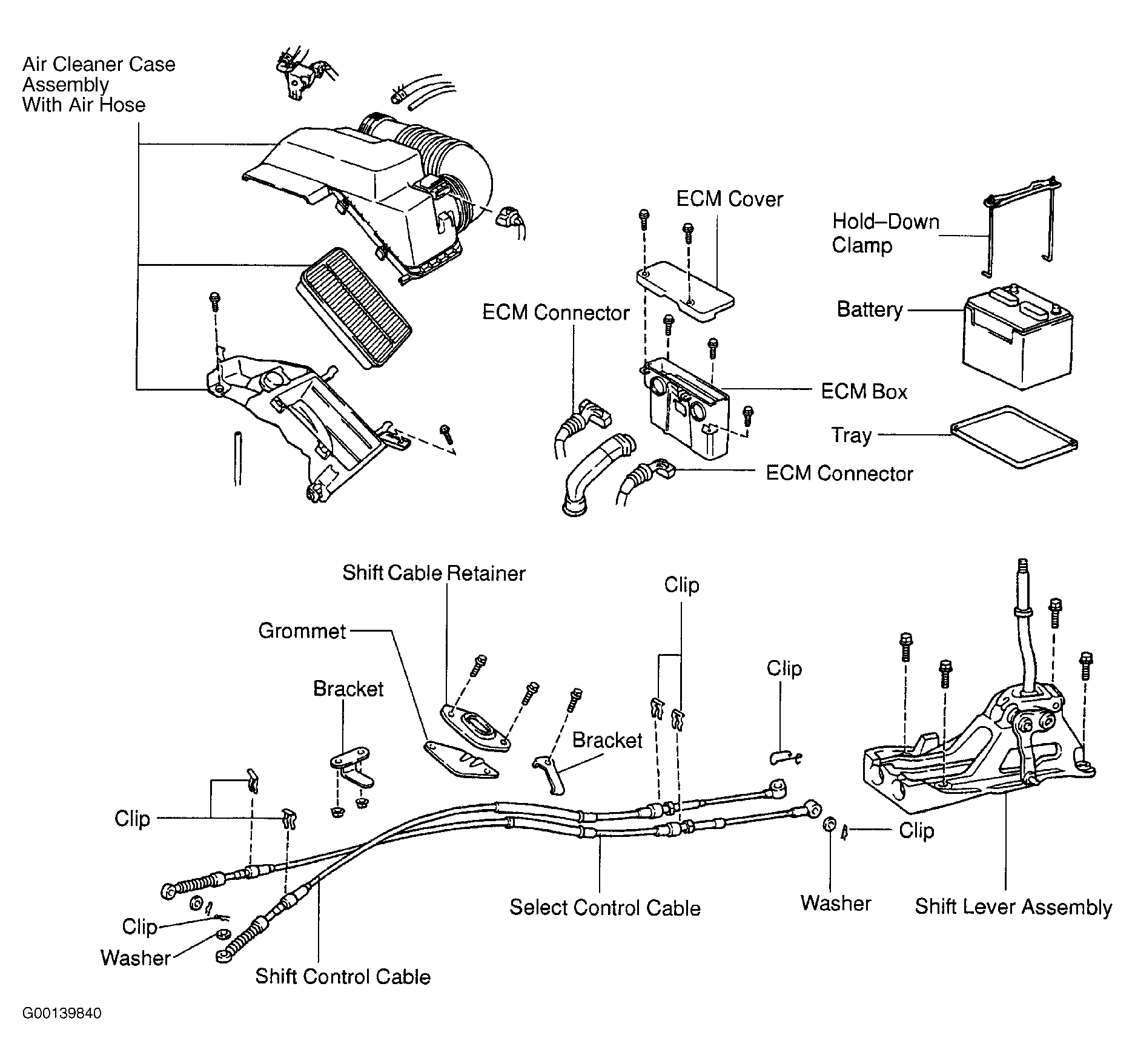

Fig 1: Exploded View Of Shift Cables & Related Components (Camry & Corolla)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

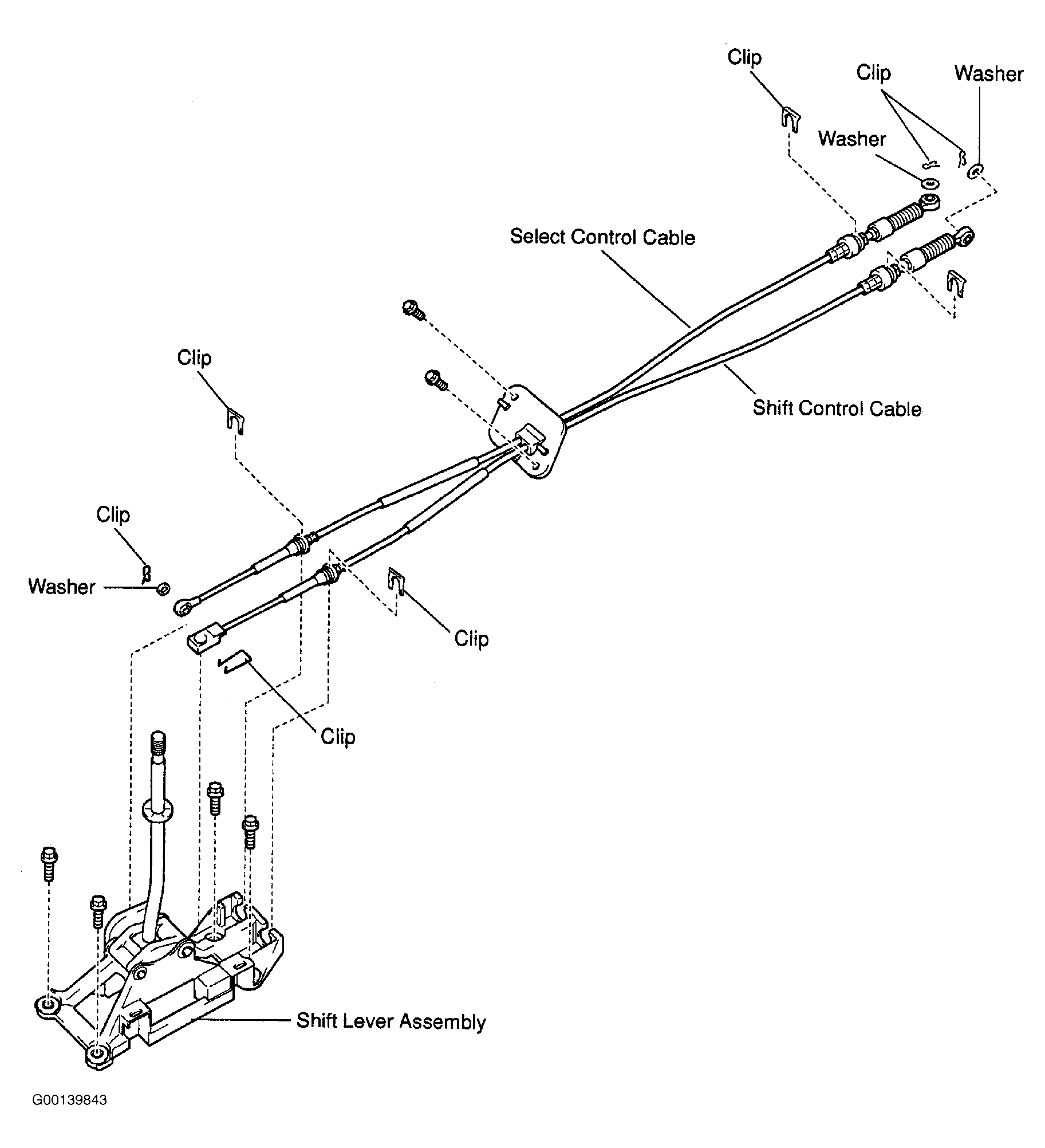

Fig 2: Exploded View Of Shift Cables & Related Components (Celica)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

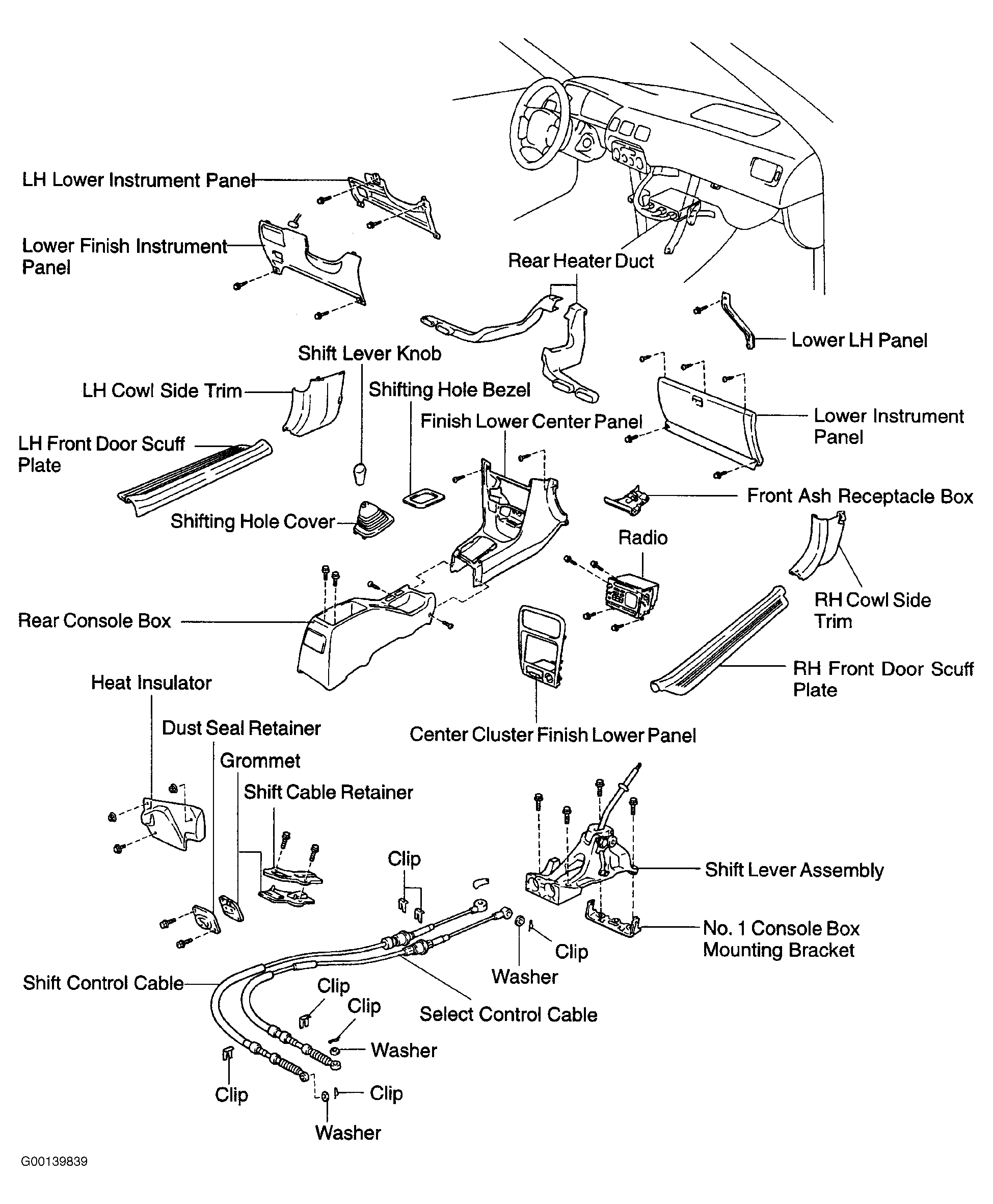

Fig 3: Exploded View Of Shift Cables & Related Components (ECHO)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

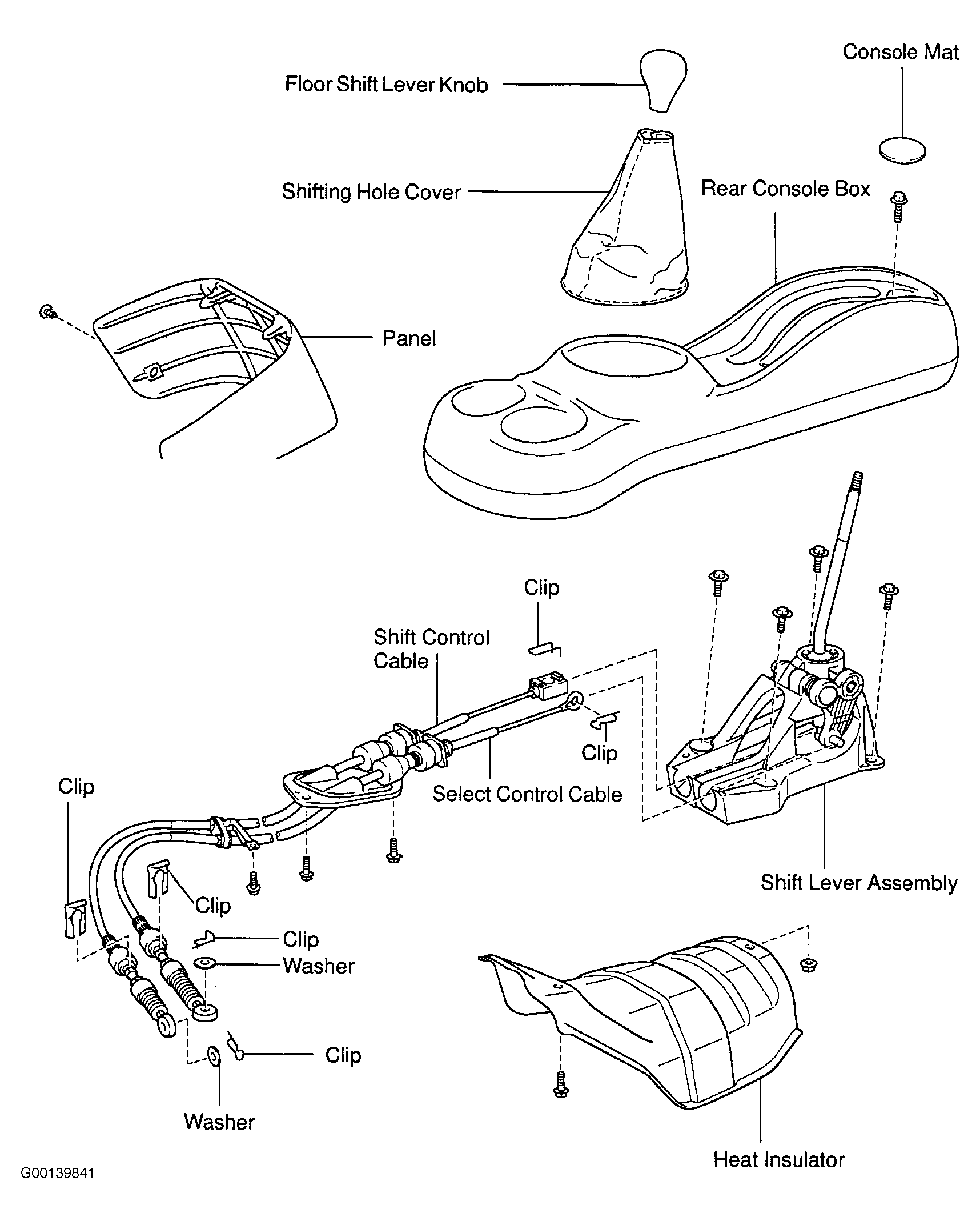

Fig 4: Exploded View Of Shift Cables & Related Components (Solara)

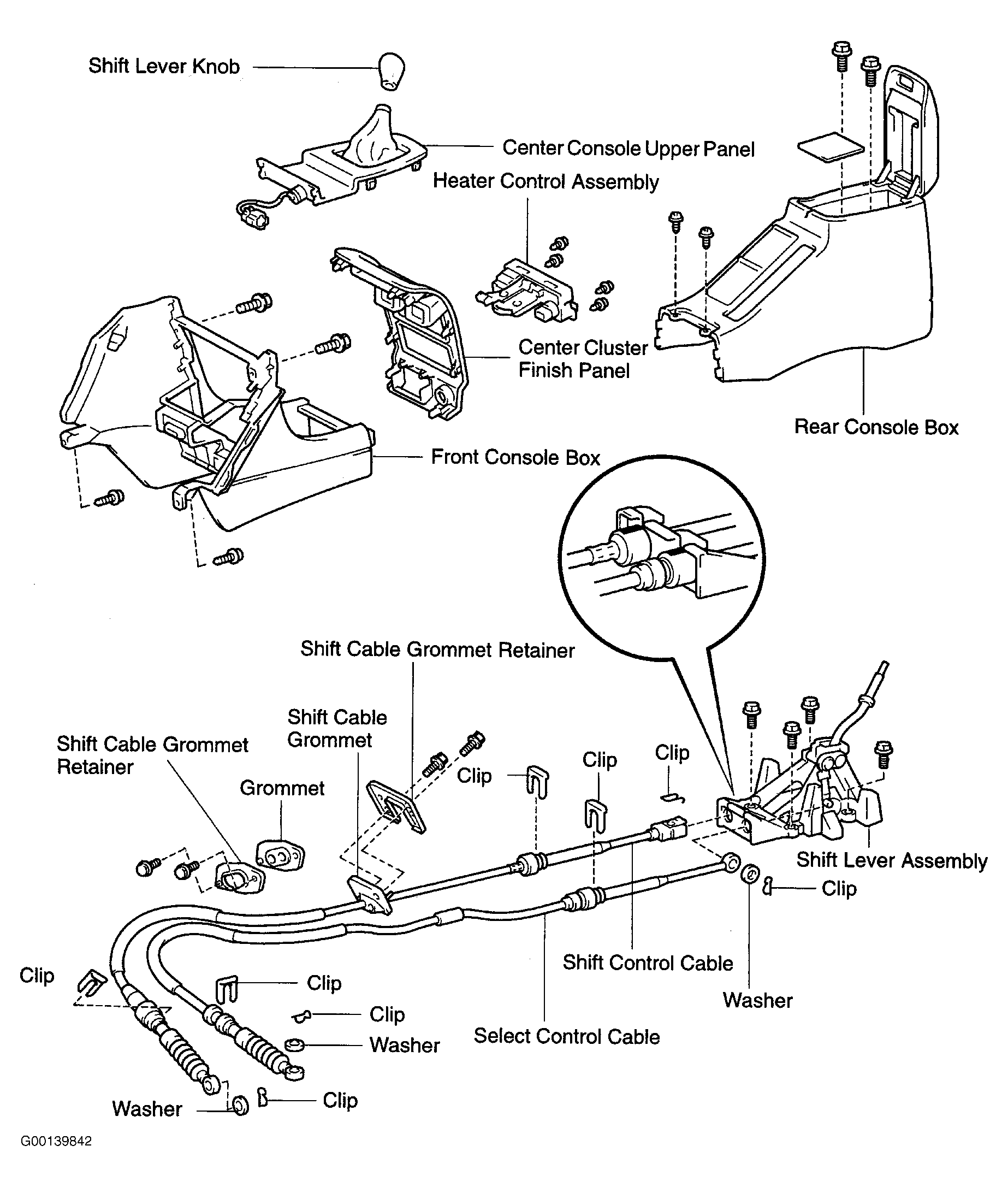

Fig 5: Exploded View Of Shift Cables & Related Components (RAV4)
