Power Mirror Control System: Inspection

Inspect left side mirror switch continuity .

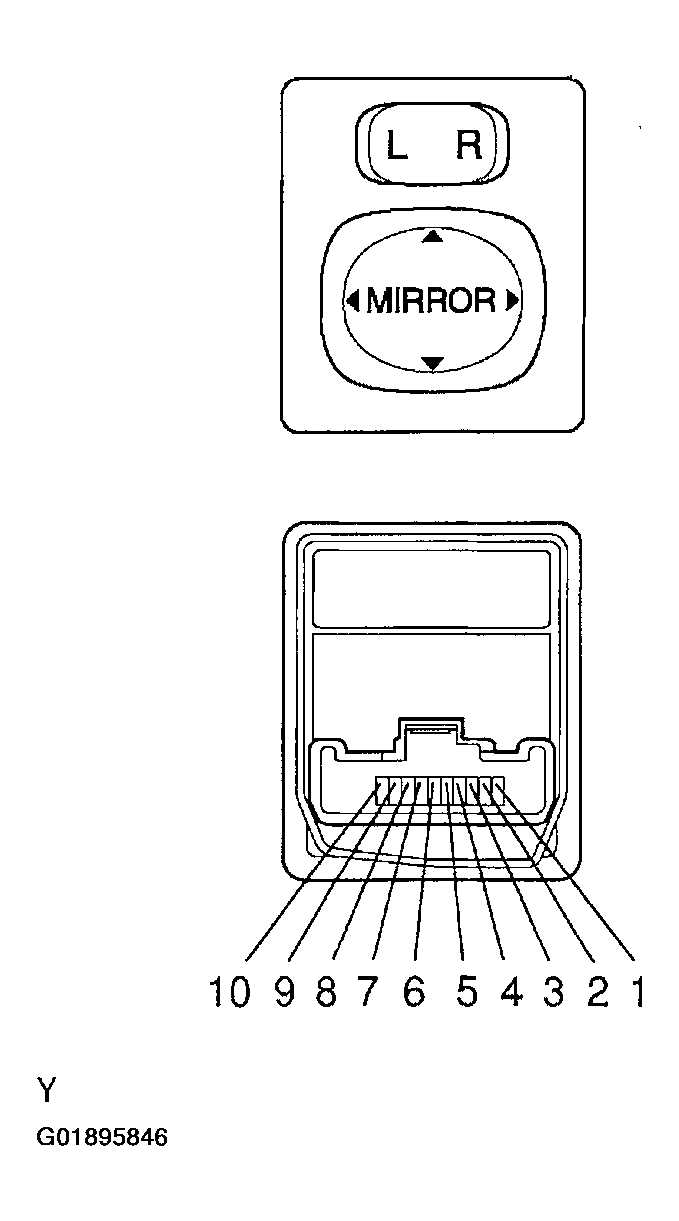

Fig 1: Identifying Mirror Switch Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

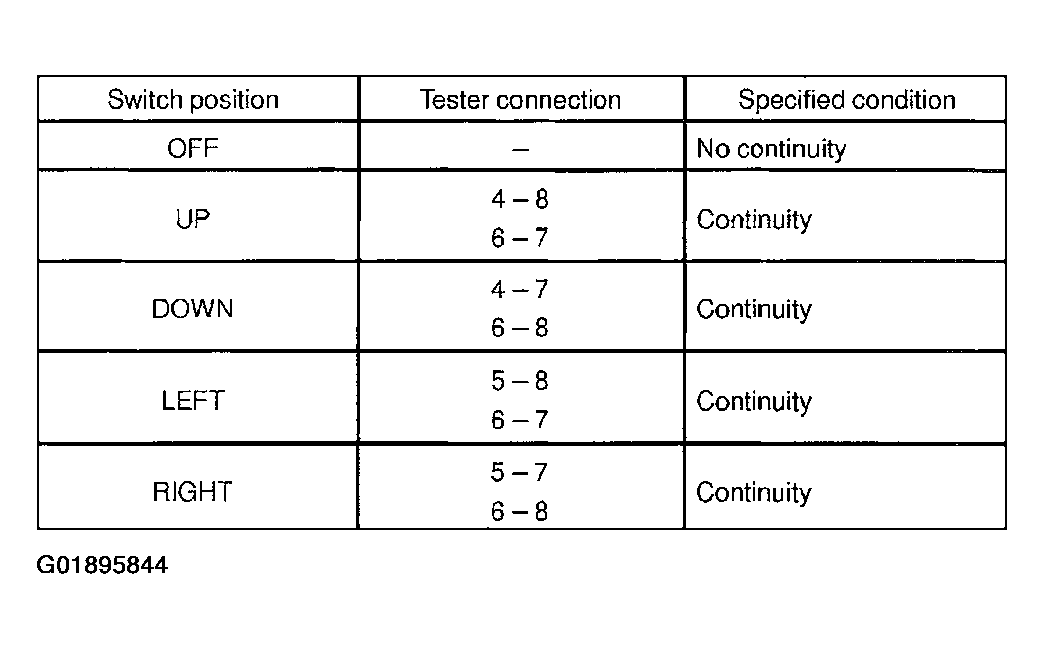

Fig 2: Displaying Left Side Mirror Switch Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
Inspect right side mirror switch continuity

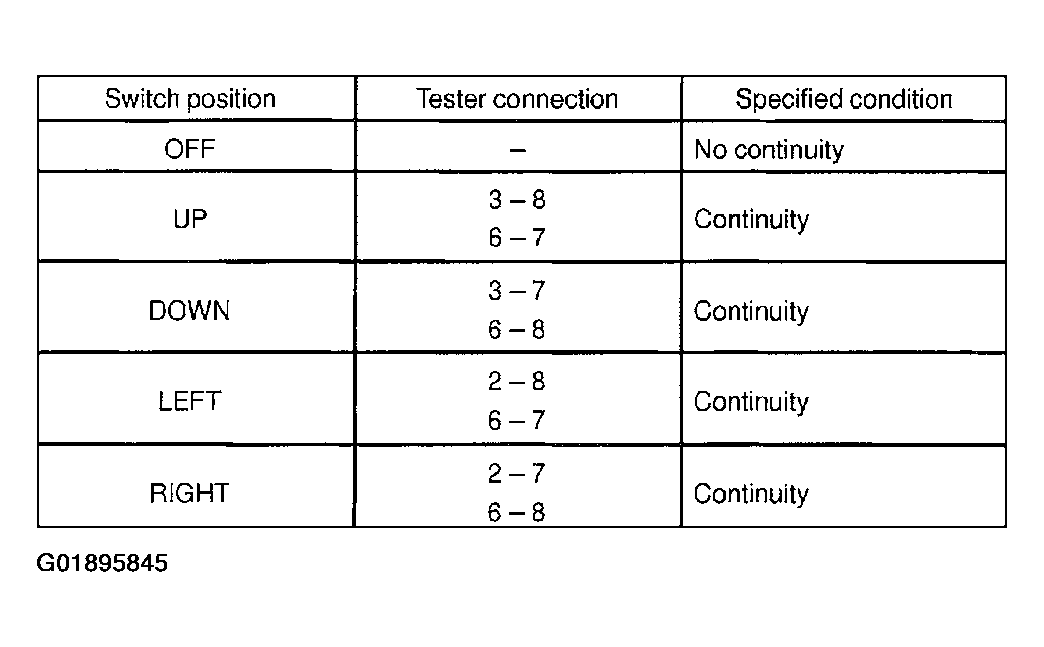

Fig 3: Displaying Right Side Mirror Switch Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
Inspect mirror motor operation .

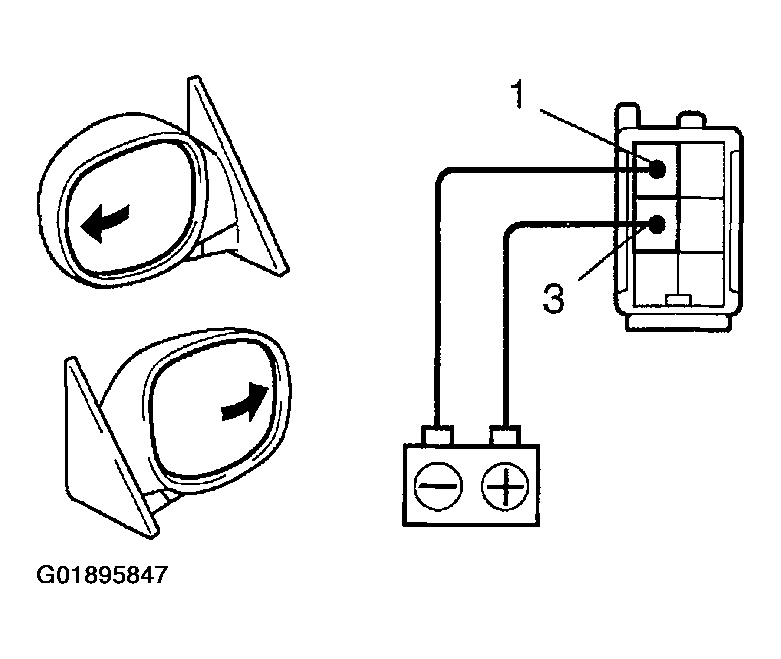

1. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 1, and check that the mirror turns to out side.

  Fig 4: Testing Mirror To Turn To Outside
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

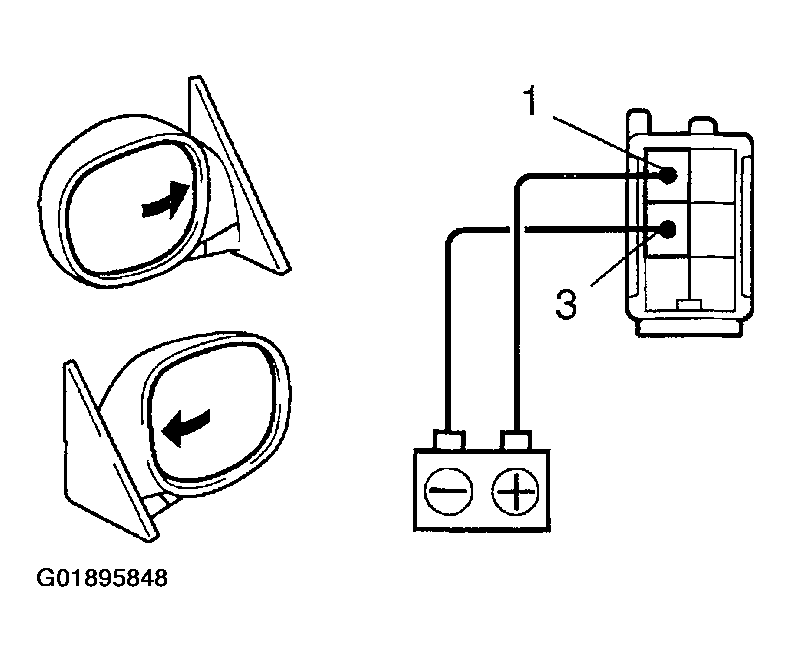

2. Reverse the polarity, and check that the mirror turns to in side.

  Fig 5: Testing Mirror To Turn To Inside
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

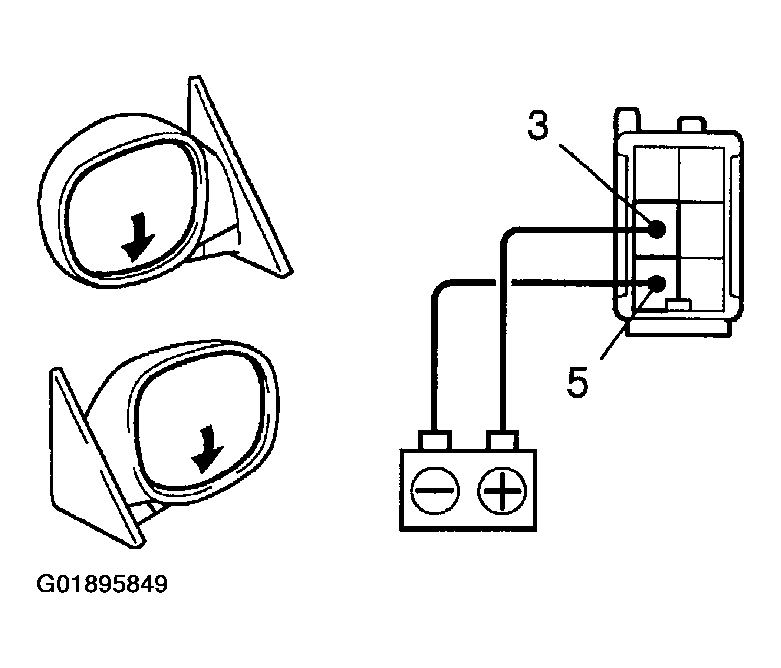

3. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 5, and check that the mirror turns to the downward.

  Fig 6: Testing Mirror To Turn Downward
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

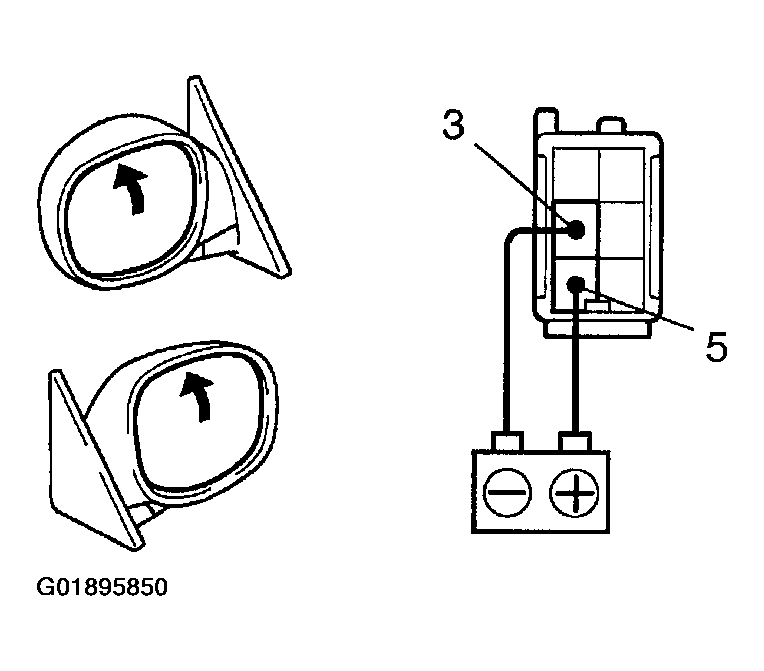

4. Reverse the polarity, and check that the mirror turns to the upward.
If operation is not as specified, replace the mirror assembly.
