Key Lock And Unlock Switch Circuit: Wiring Diagram

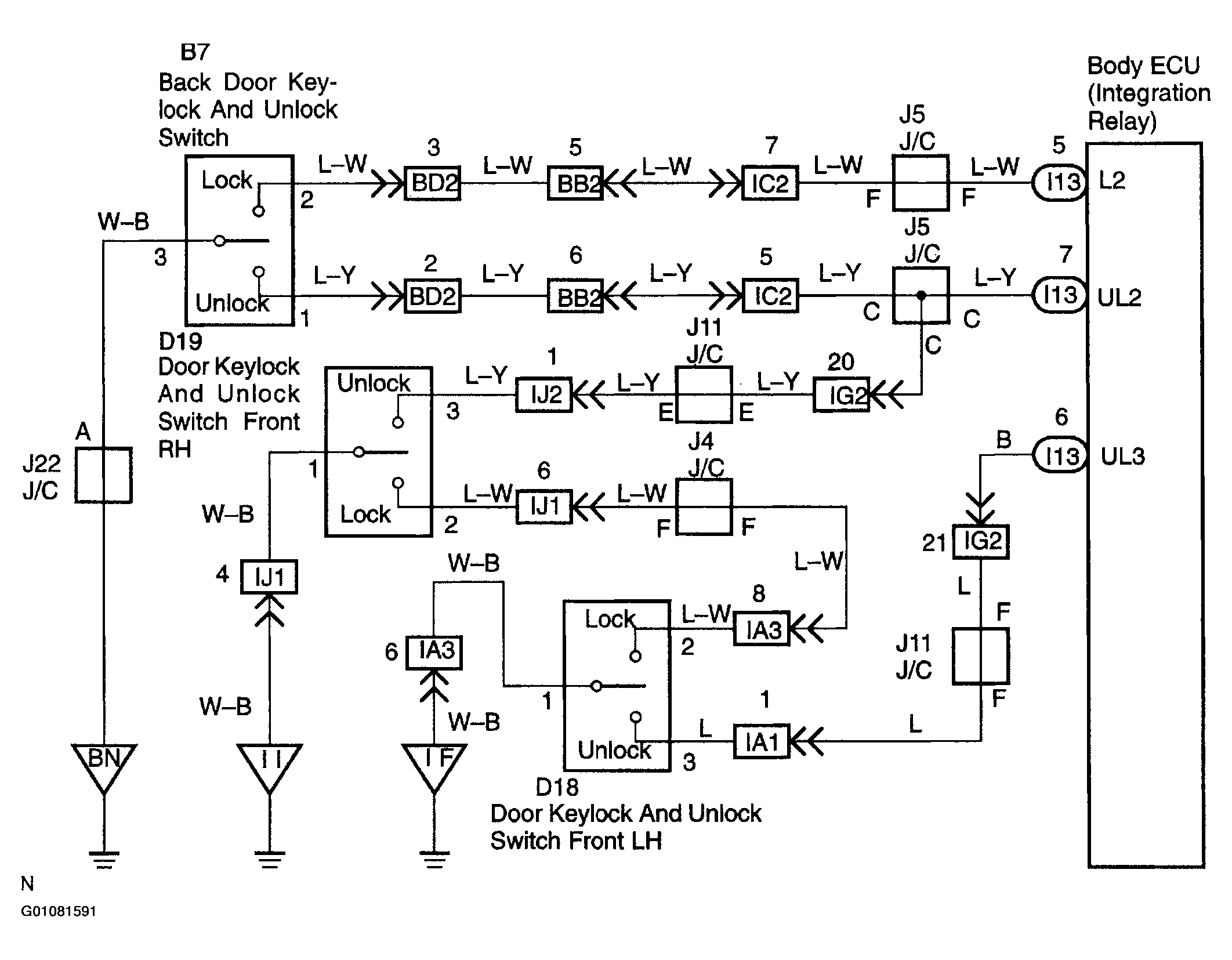

Fig 1: Key Lock And Unlock Switch Circuit
G01081591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
