Light Control Sensor Circuit: Wiring Diagram

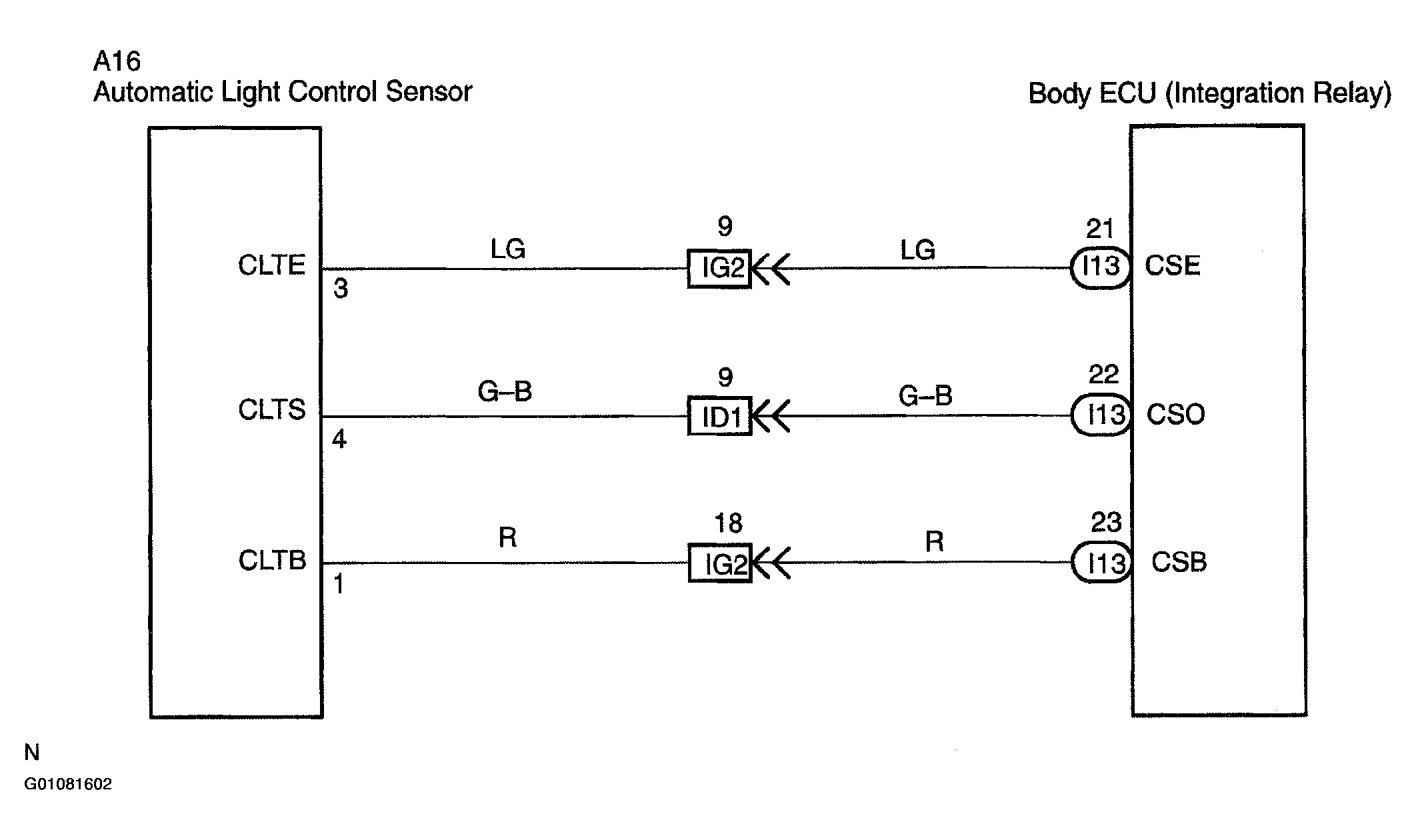

Fig 1: Light Control Sensor Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
