Problem Symptoms Table

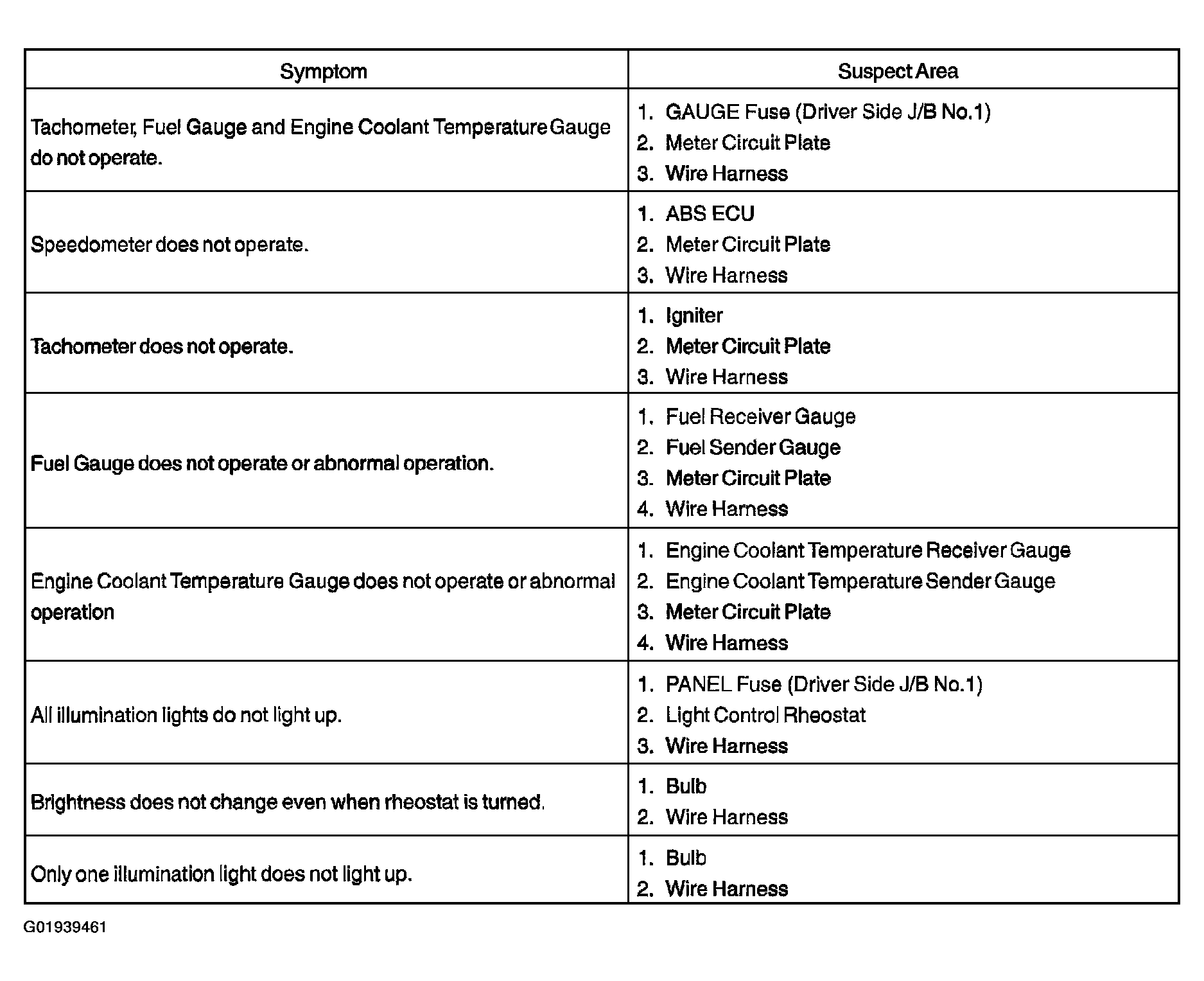

Fig 1: Combination Meter (Gauges And Illumination)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

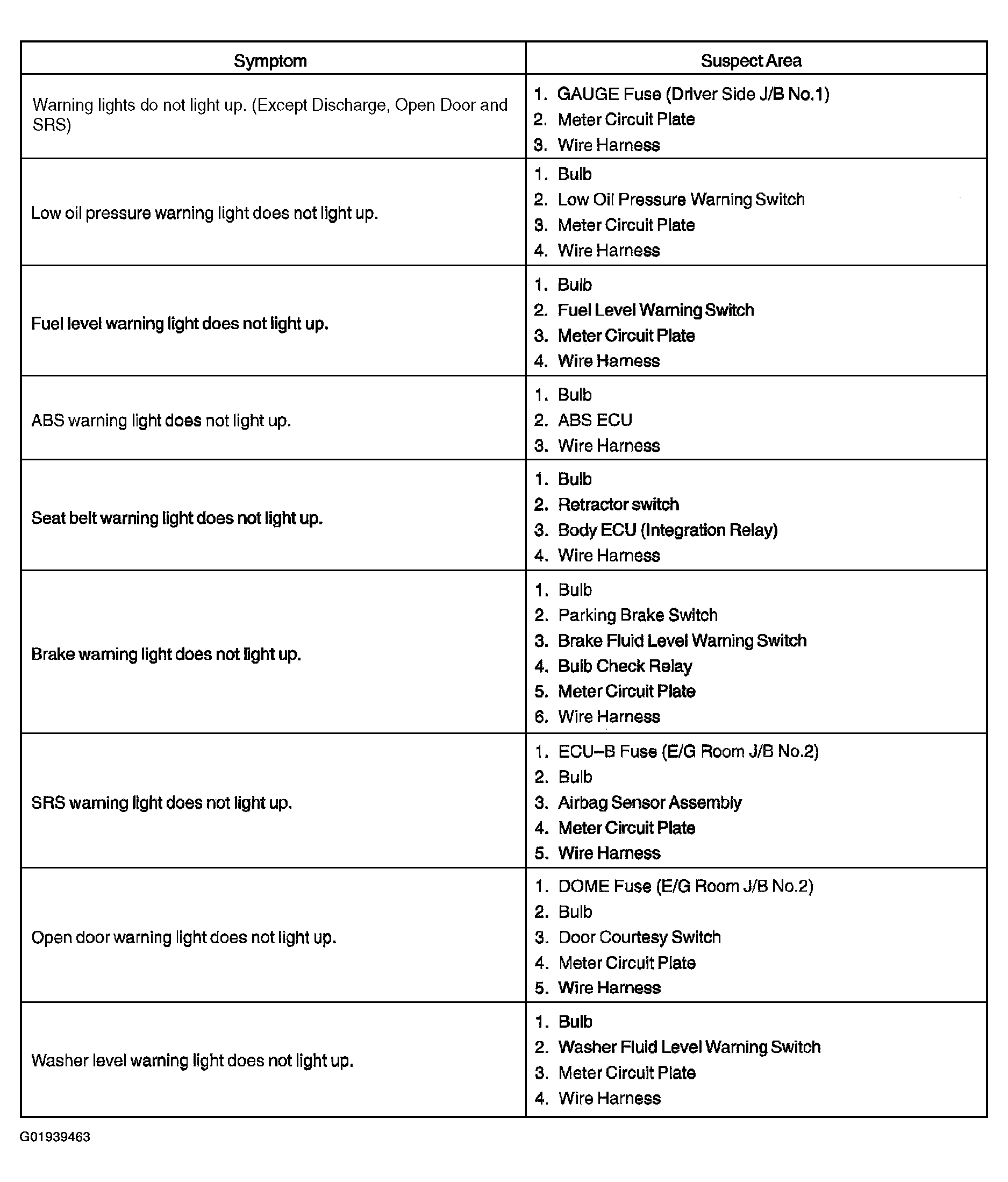

Fig 2: Combination Meter (Warning Light)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

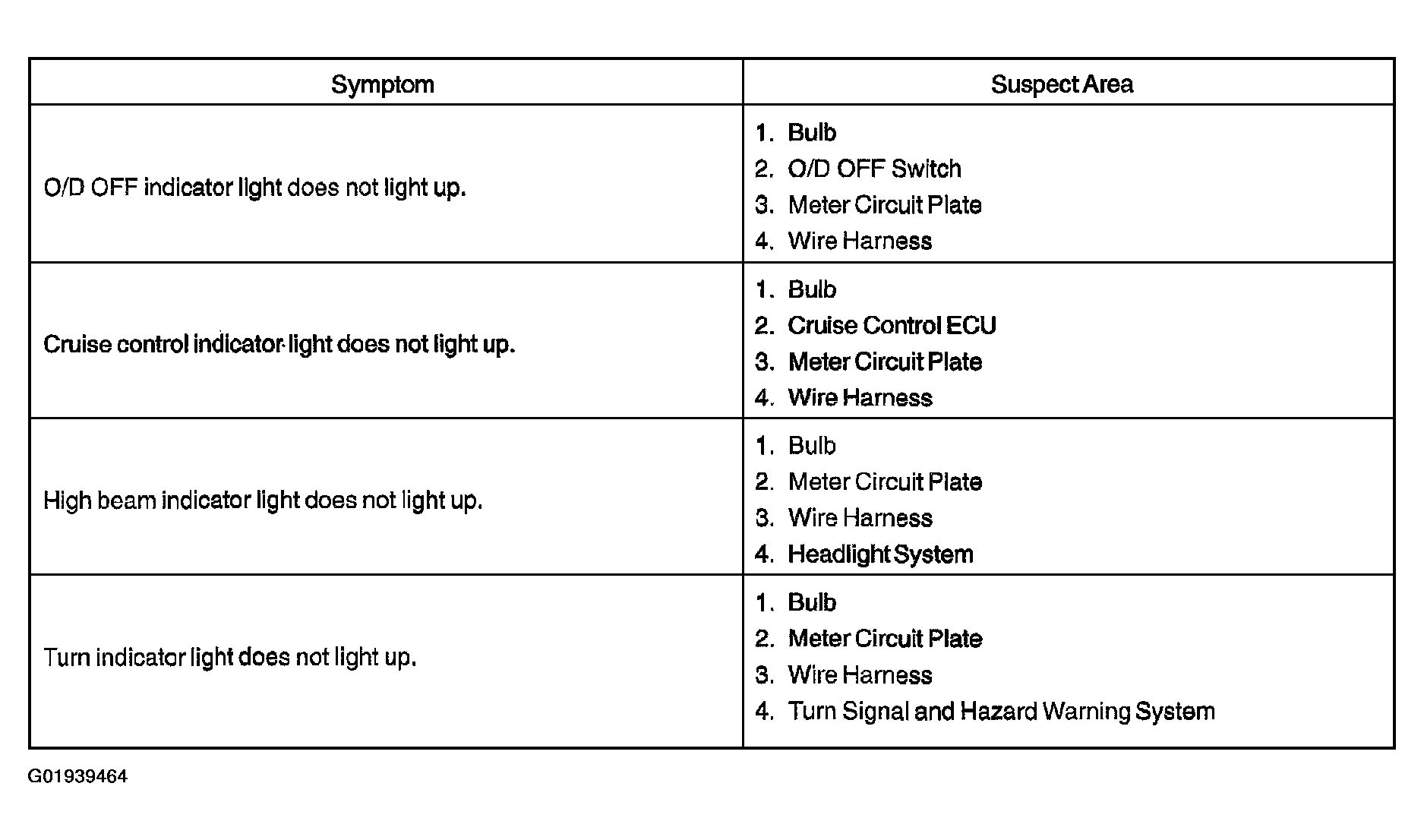

Fig 3: Combination Meter (Indicator Light)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
