Problem Symptoms Table

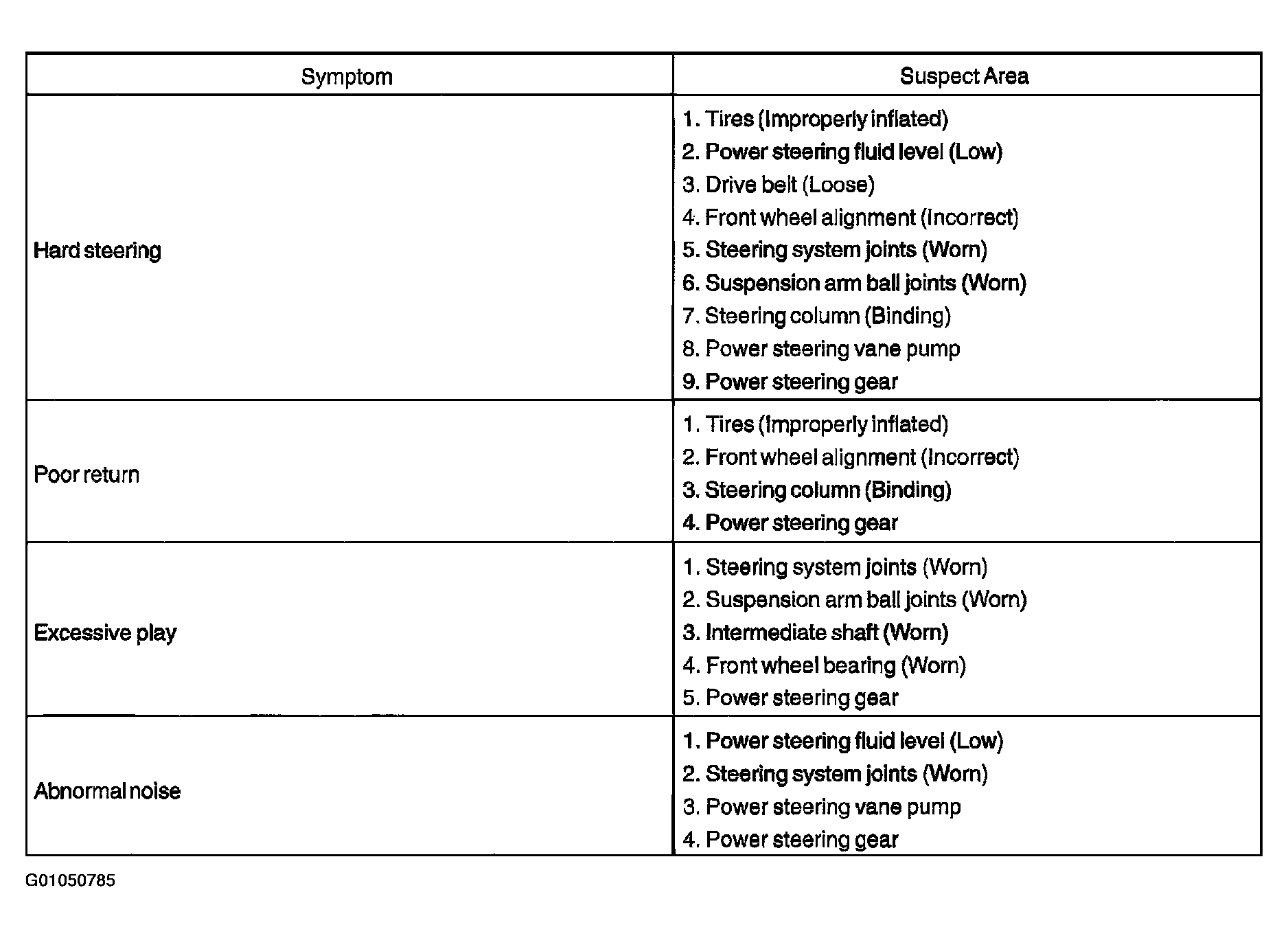

Use Fig 1 to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in the order indicated in Fig 1. If necessary, repair or replace these parts.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
