Circuit Description

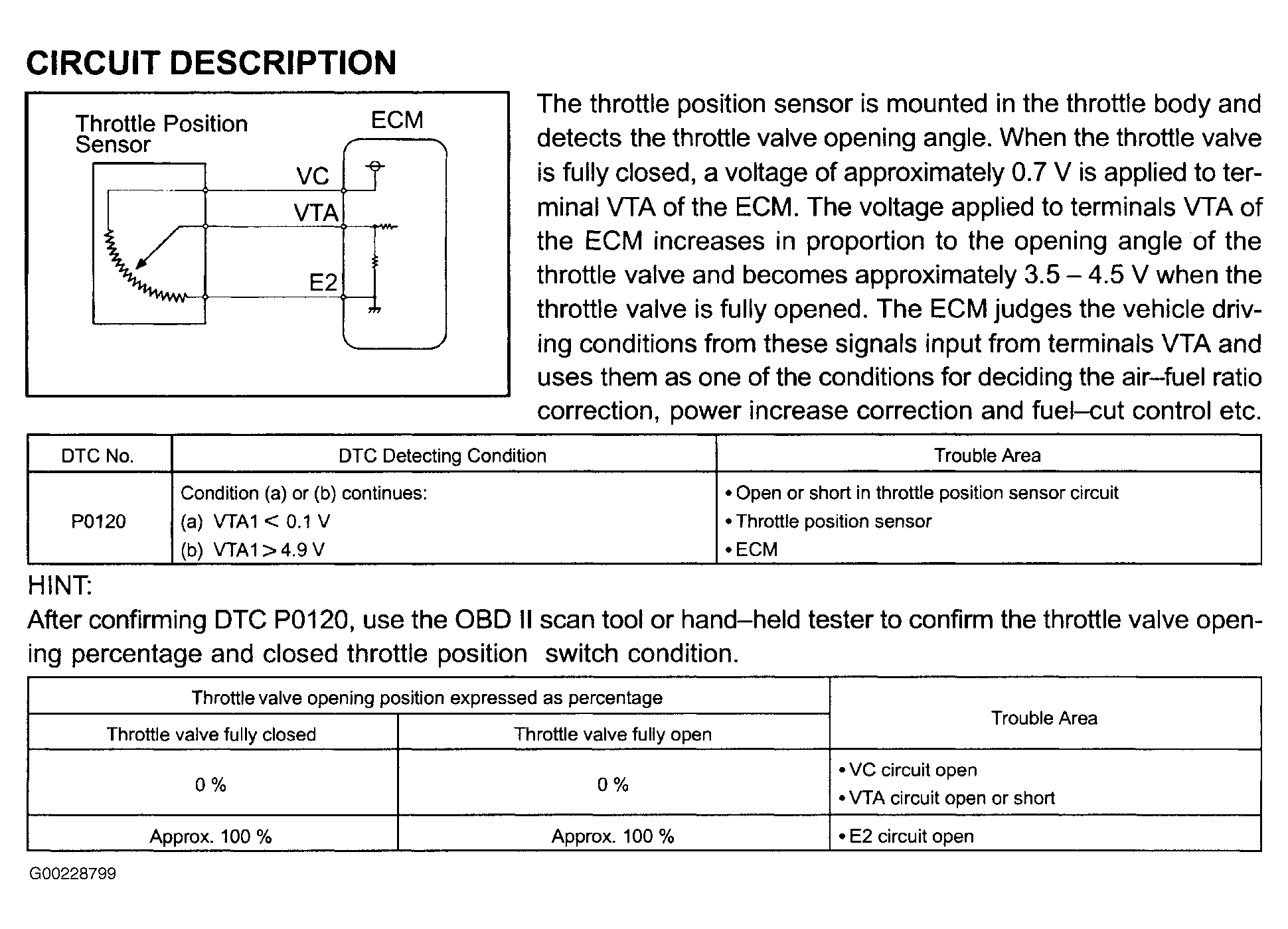

For circuit description, see Fig 1.

Fig 1: DTC P0120 Circuit Description
G00228799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
