Inspection Procedure

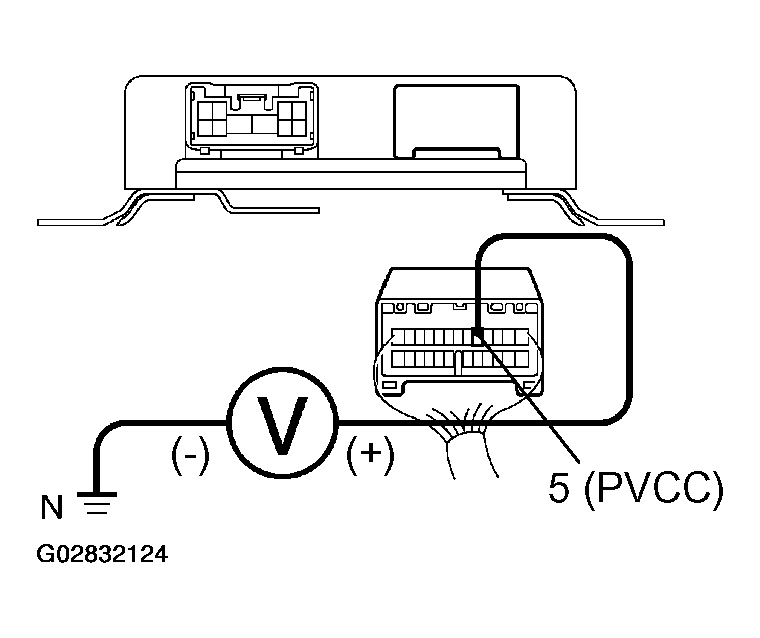

Fig 1: Checking Voltage Between Terminal PVCC Of Seat Position Control ECU Connector & Body Ground

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PREPARATION:

Remove Seat Position Control ECU with connectors still connected.

CHECK:

While operating the Power Seat Control Switch and moving the seat, check voltage between terminal PVCC of Seat Position Control ECU connector and body ground.

OK: Voltage: 7.2-8.8 V

OK: Proceed to next circuit inspection shown on problem symptom table (See  PROBLEM SYMPTOMS TABLE  ).

NG: Go to next step.

CHECK:

Check for open or short in the harness and check connectors for the position sensor power source circuit outlined in the diagram with a thick line (-).

NG: Repair or replace harness or connector.

OK: Check and replace Seat Position Control ECU.
