Actuator Control Cable

For Actuator control cable testing procedure, see Fig 1.

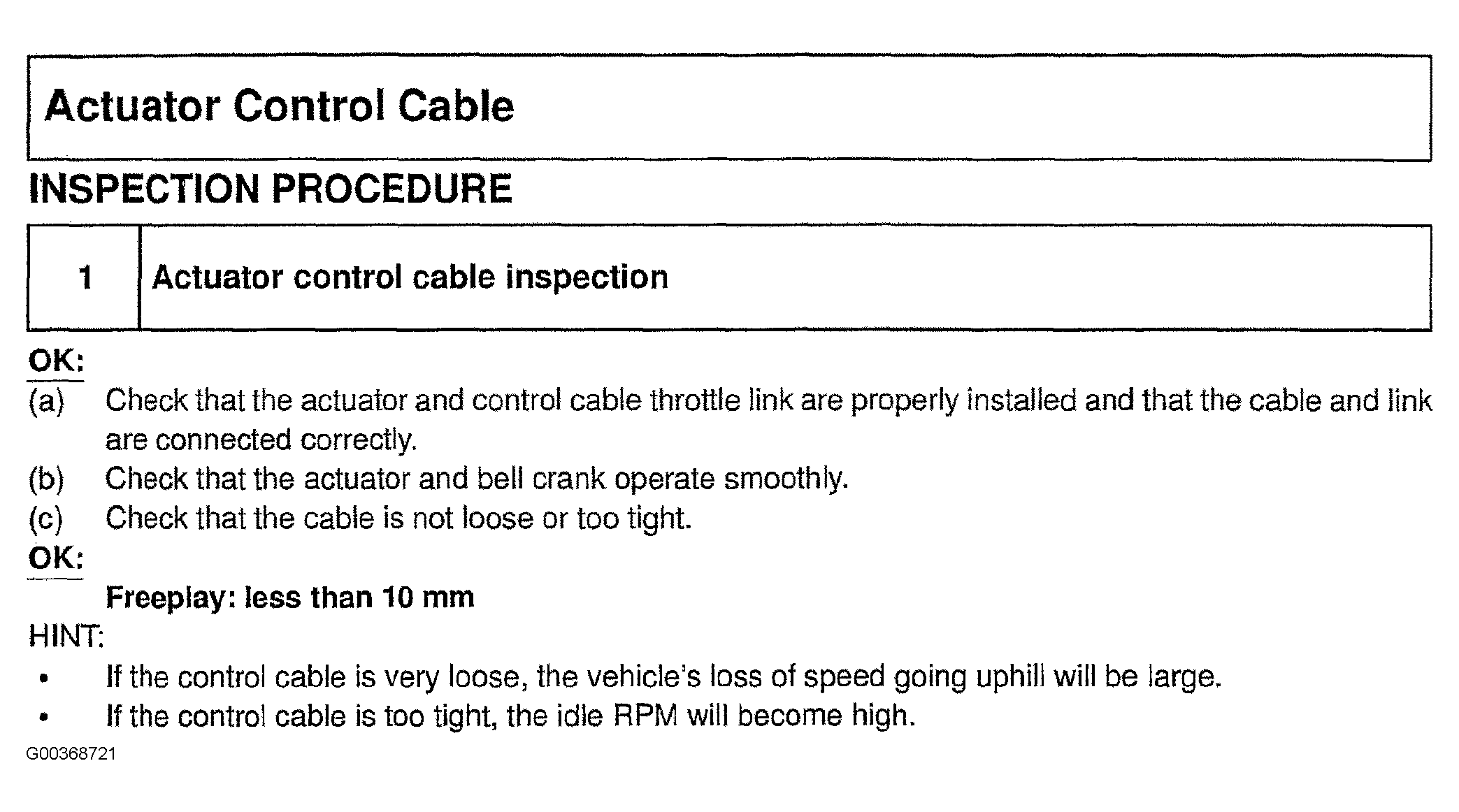

Fig 1: Testing Actuator Control Cable
G00368721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
