Problem Symptoms Table

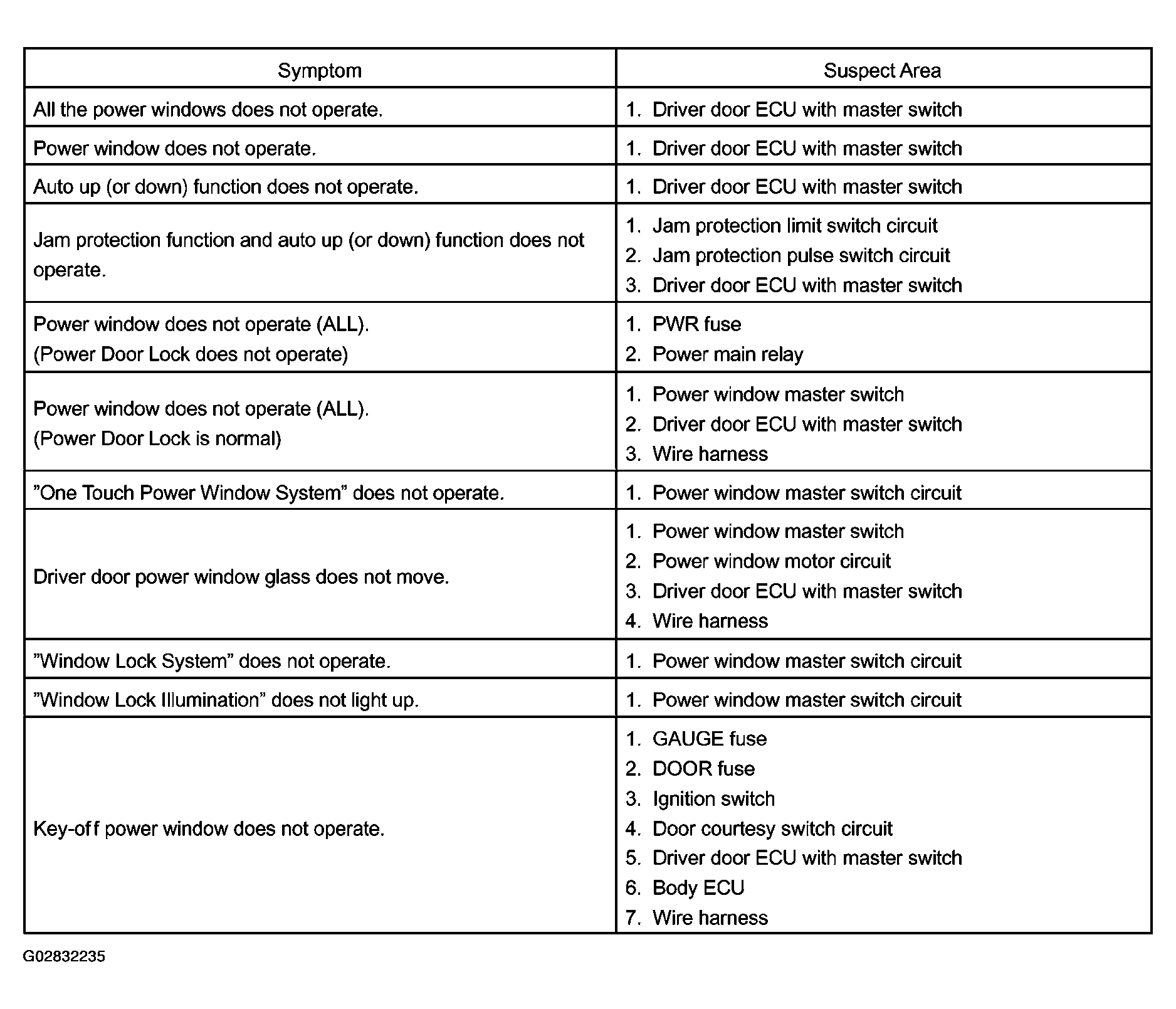

Fig 1: Power Window Control System Problem Symptom Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Power Door Lock Control System Problem Symptom Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

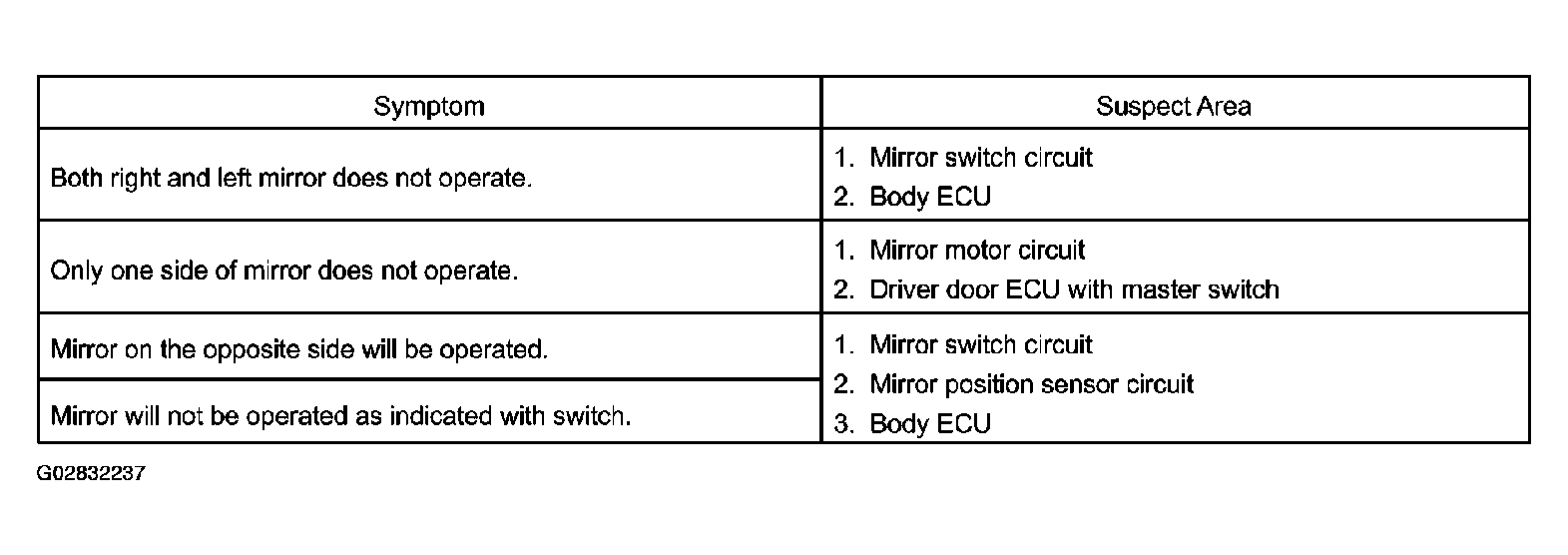

Fig 3: Power Mirror Control System Problem Symptom Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
