Body Clips: Replacement

The removal and installation methods of typical clips used in body parts are shown in the table below.

NOTE: If the clip is damaged during the operation, always replace it with a new clip.

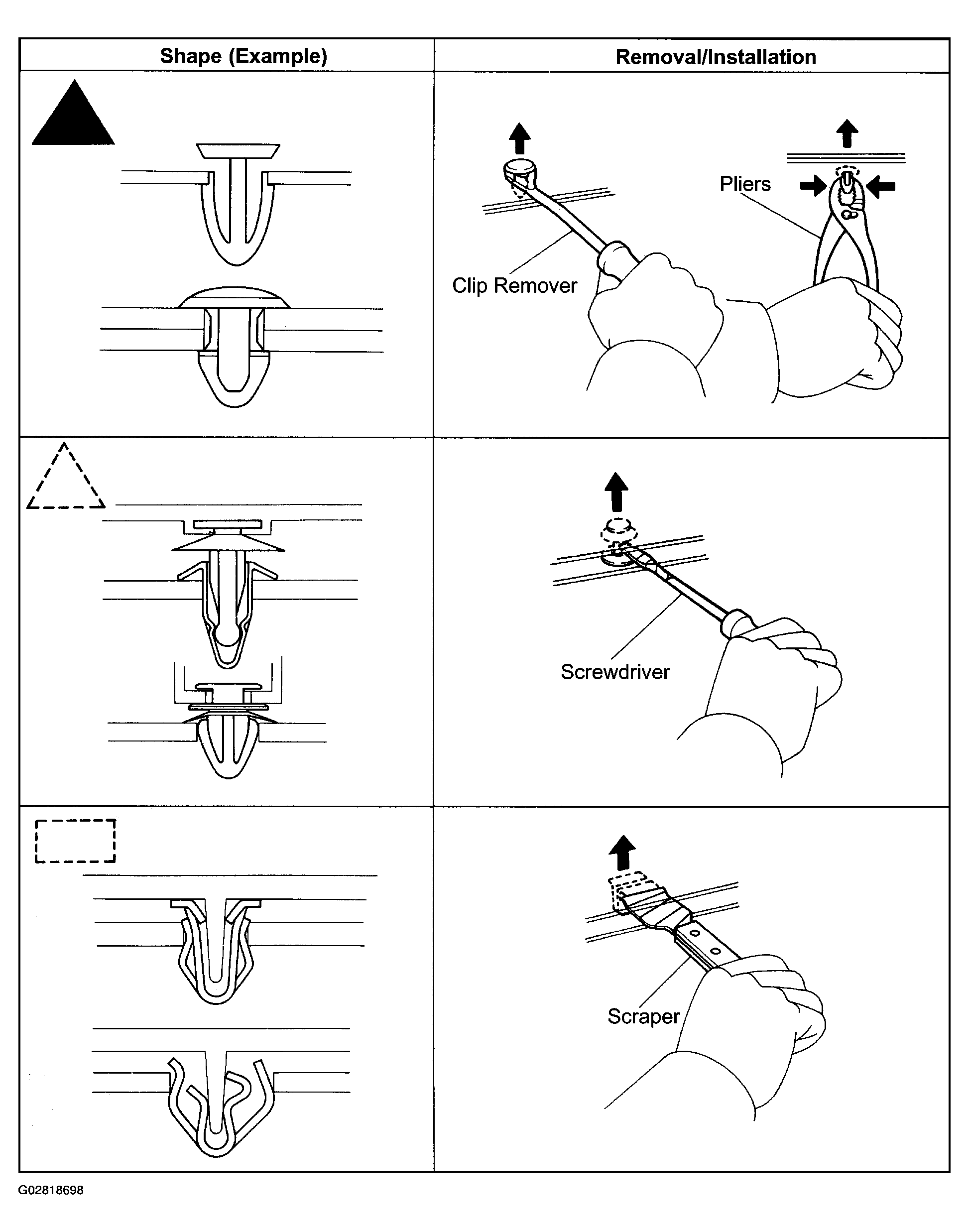

Fig 1: Identifying Removal & Installation Procedure Of Clip (1 Of 2)
G02818698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

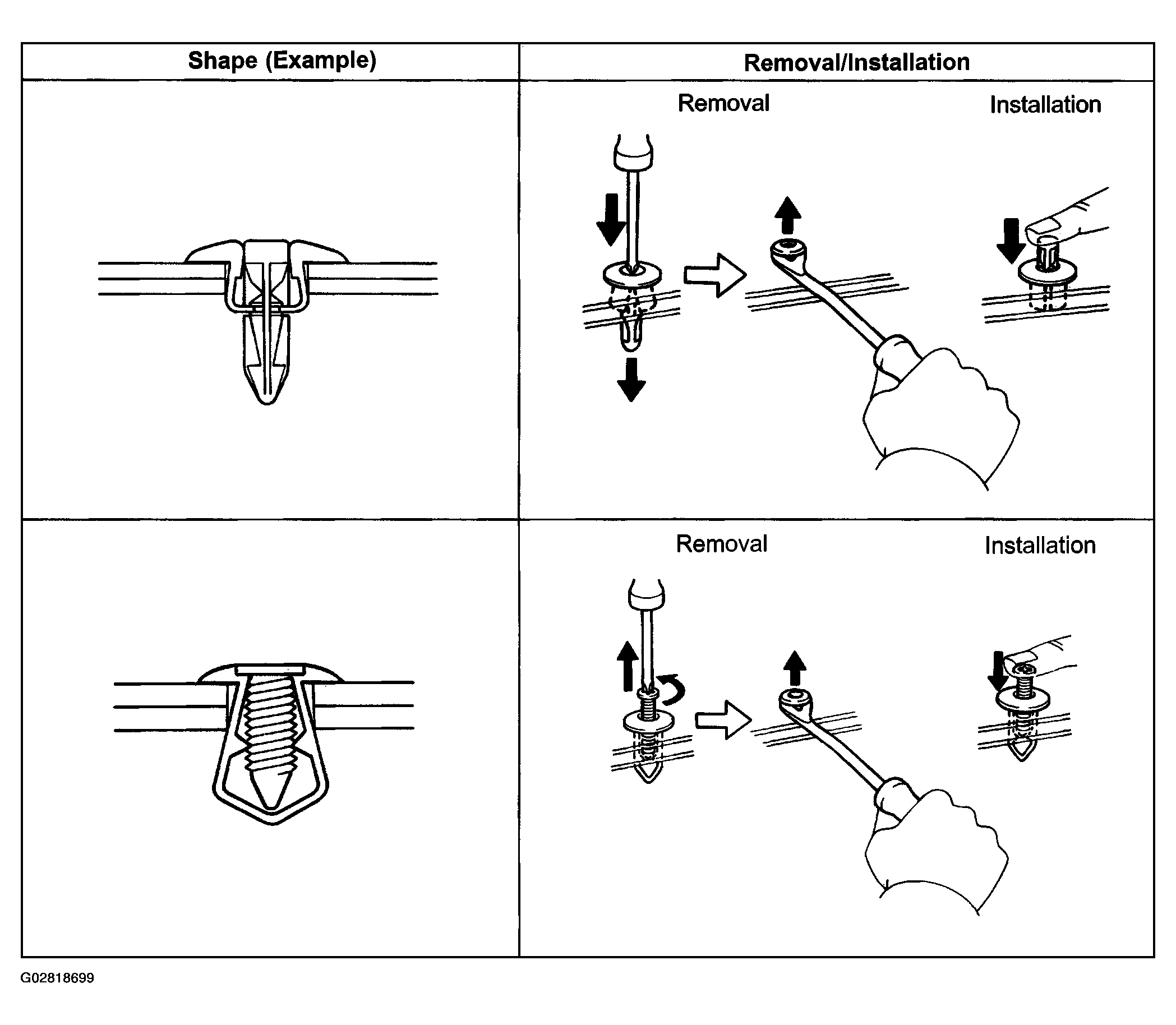

Fig 2: Identifying Removal & Installation Procedure Of Clip (2 Of 2)
G02818699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
