Combination Meter: Circuit

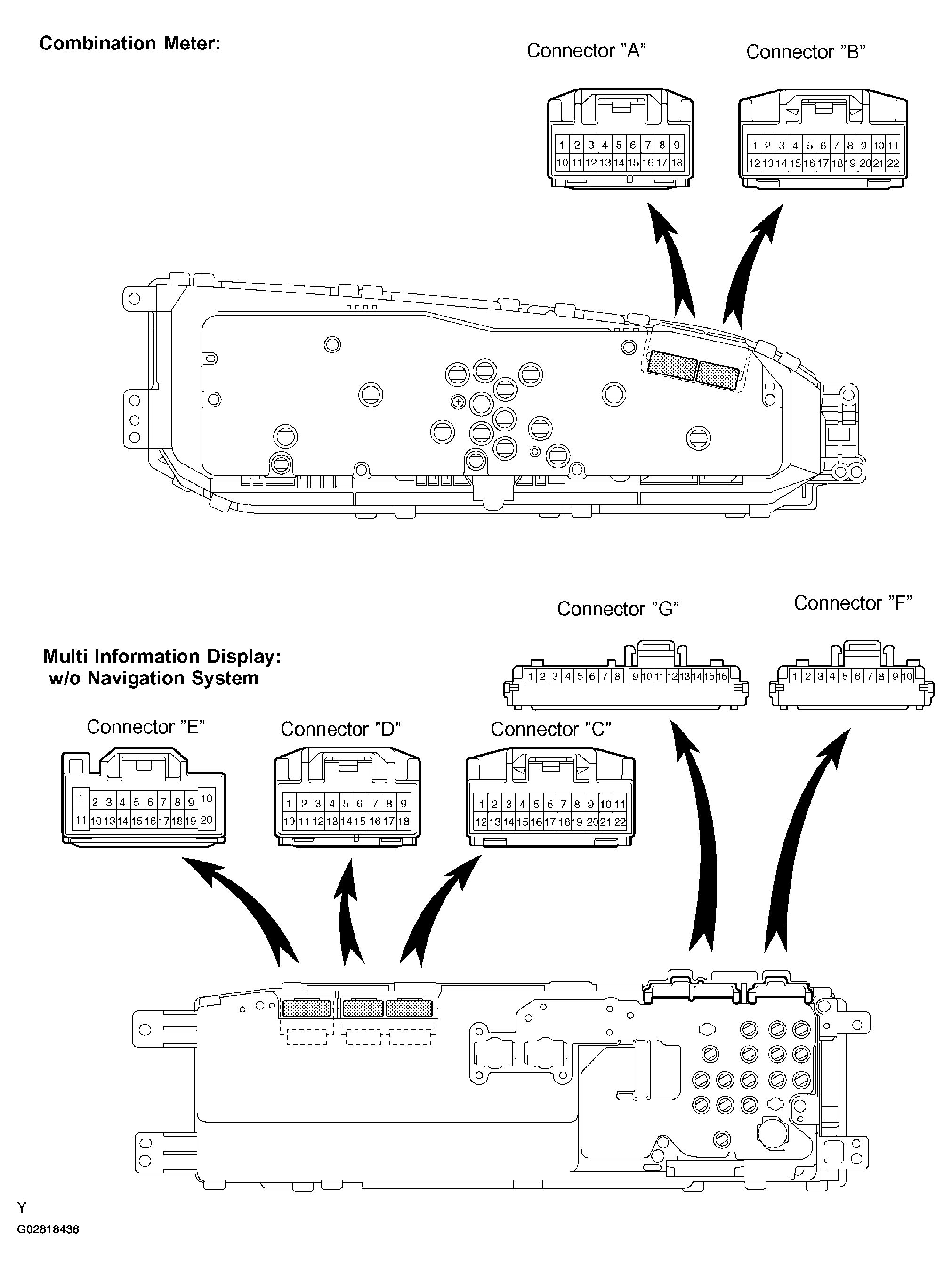

Fig 1: Identifying Combination Meter & Multi Information Display Connectors Location & Terminals View (W/O Navigation System)
G02818436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

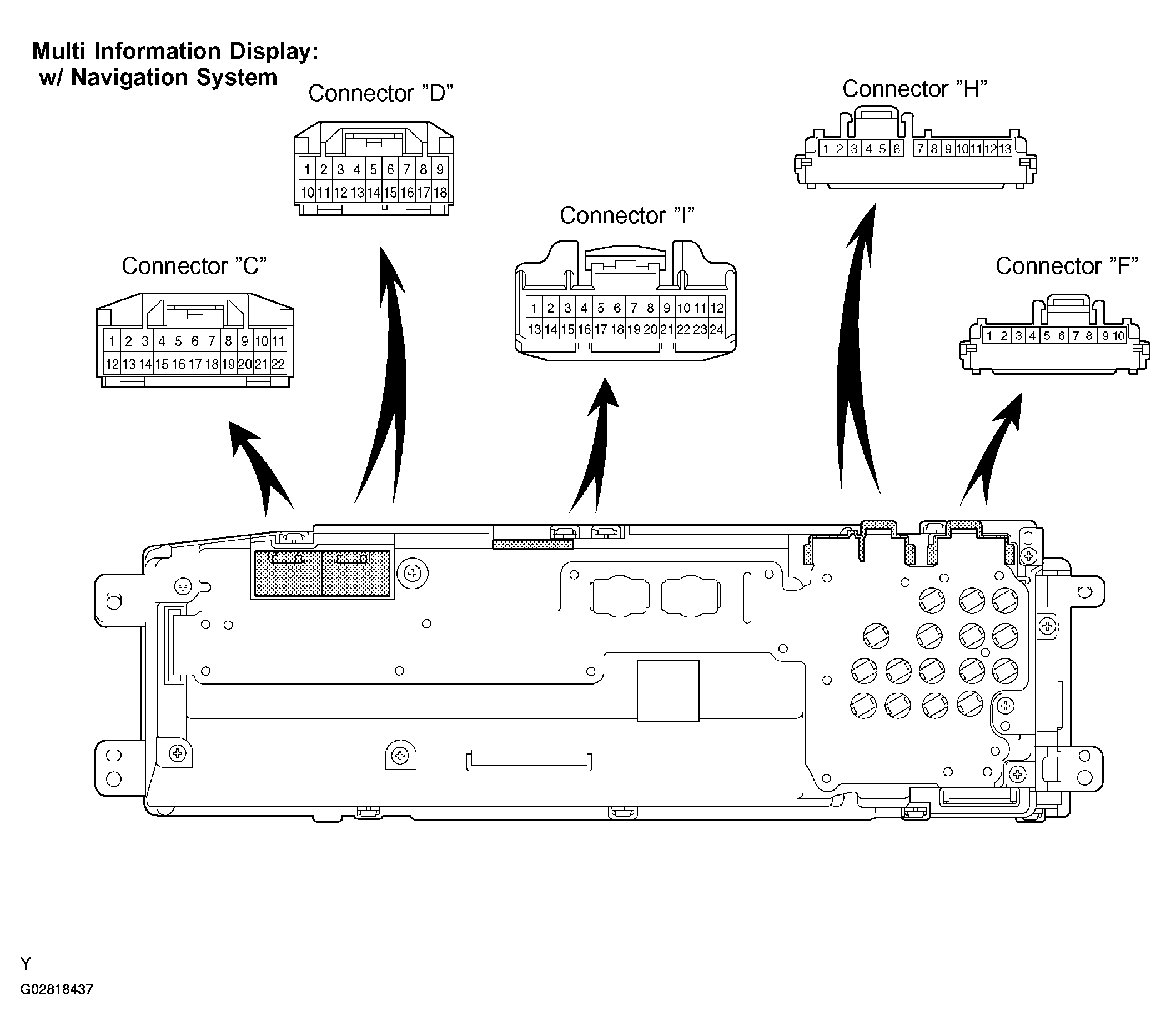

Fig 2: Identifying Multi Information Display Connectors Location & Terminals View (W/ Navigation System)
G02818437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

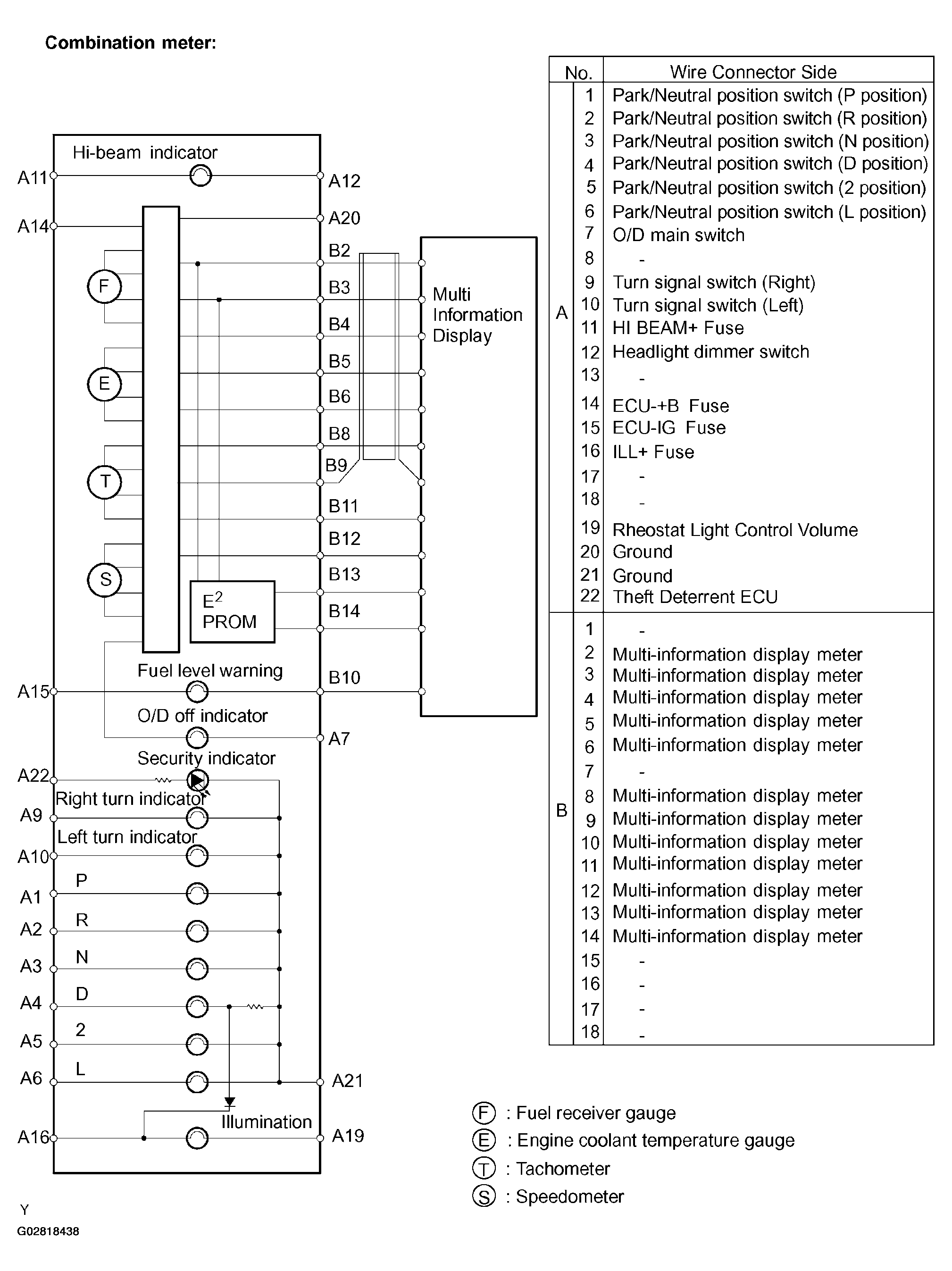

Fig 3: Combination Meter Circuit Diagram
G02818438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

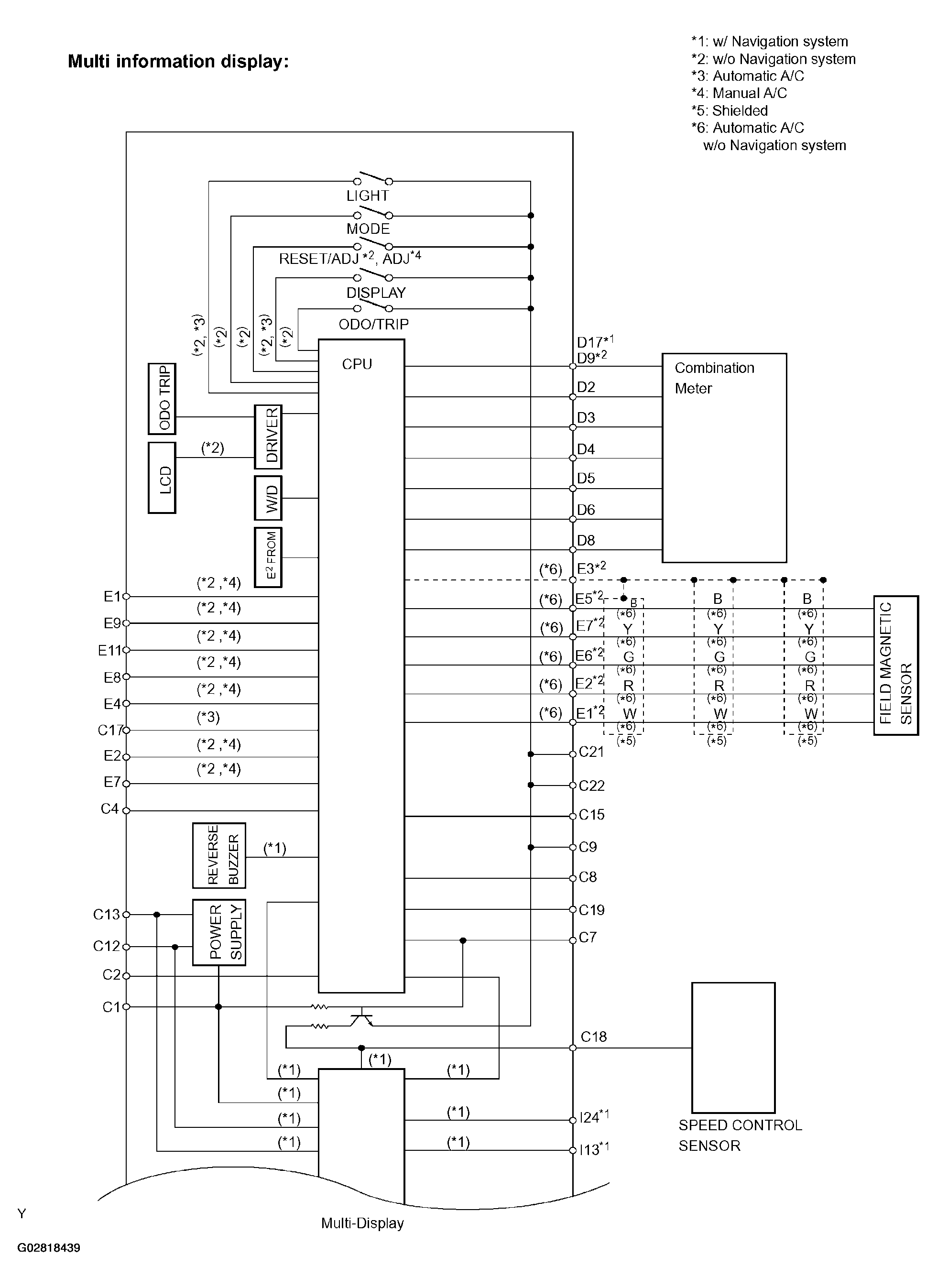

Fig 4: Multi Information Display Circuit Diagram (1 Of 4)
G02818439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

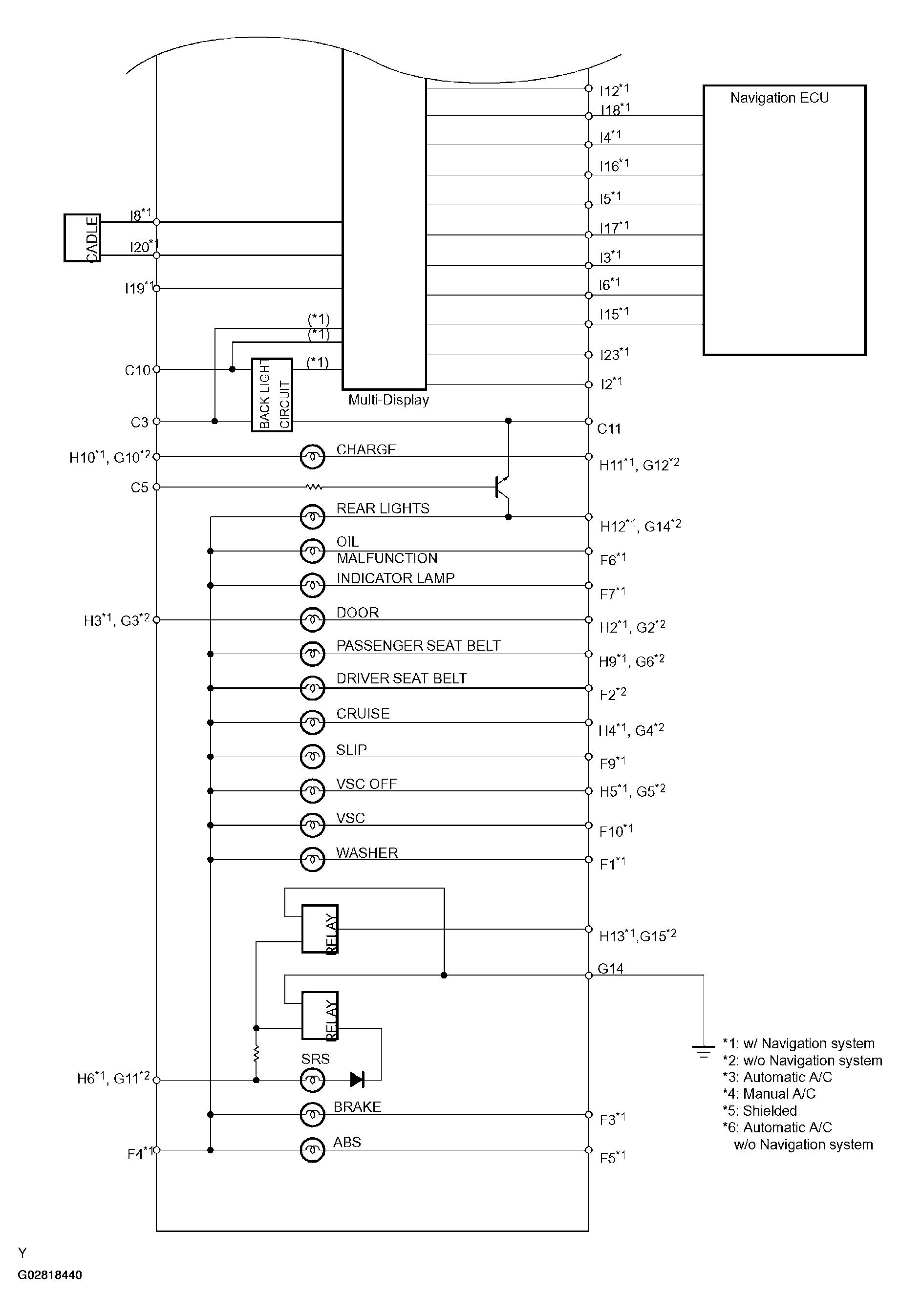

Fig 5: Multi Information Display Circuit Diagram (2 Of 4)
G02818440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

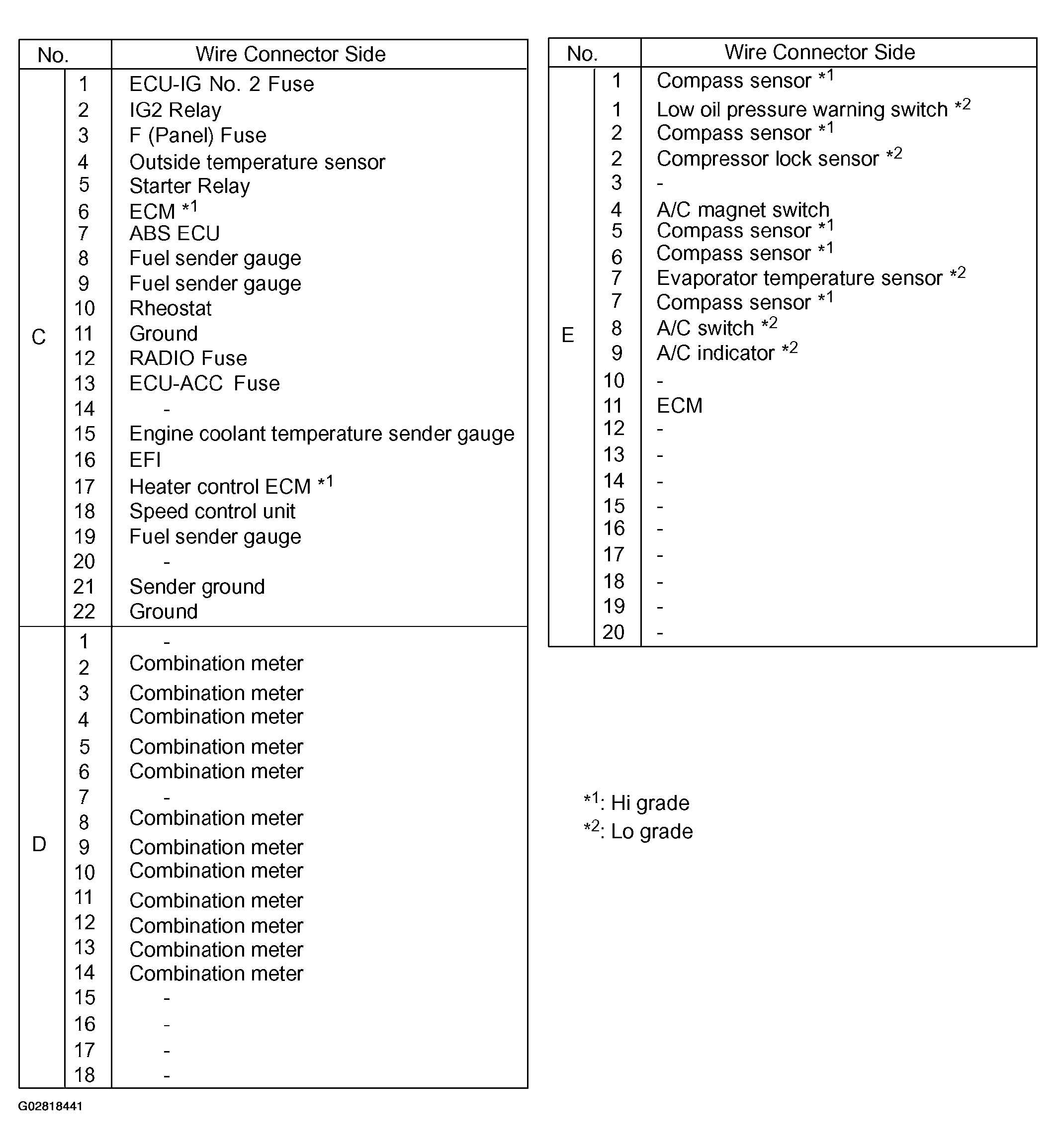

Fig 6: Multi Information Display Circuit Diagram (3 Of 4)
G02818441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

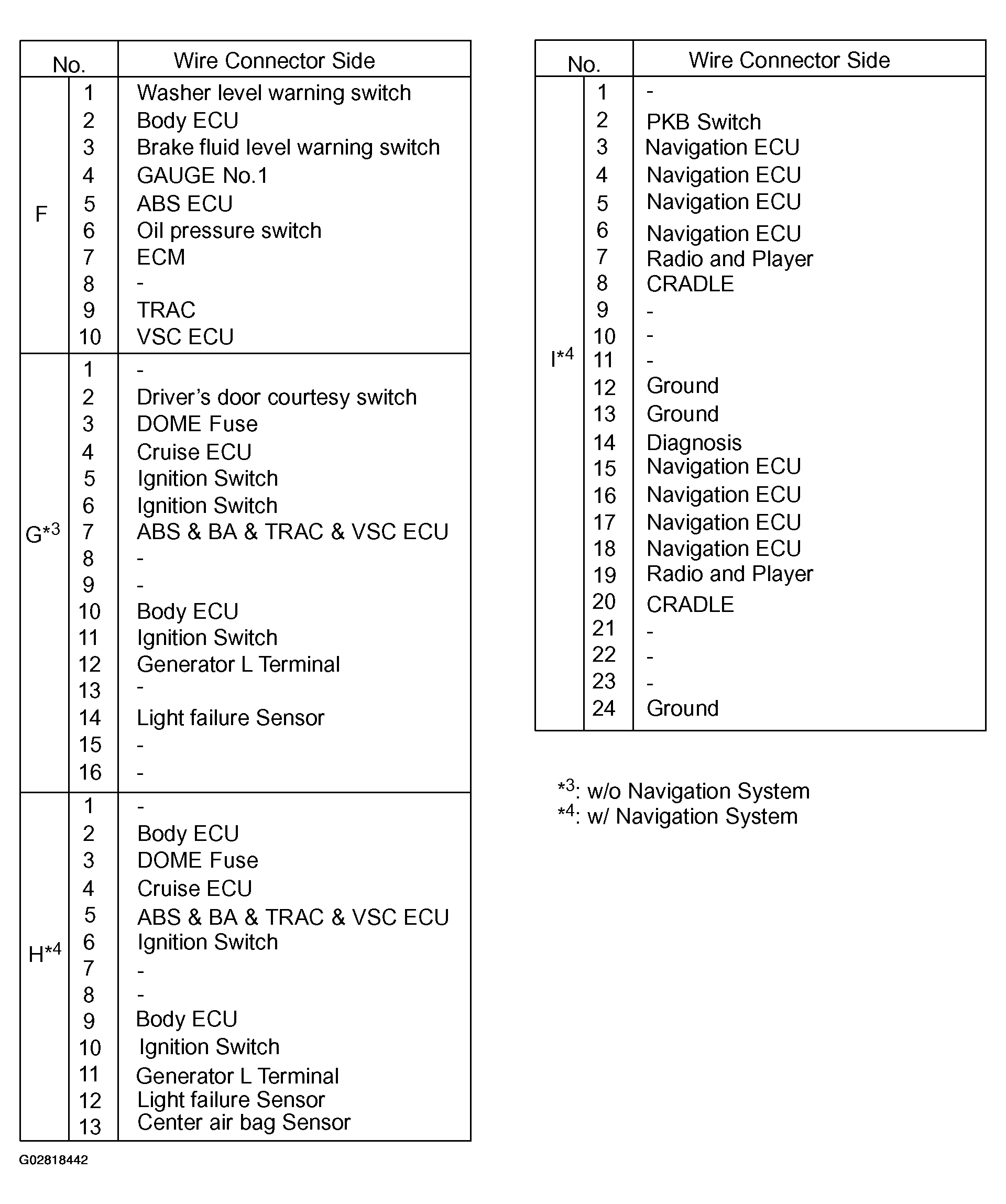

Fig 7: Multi Information Display Circuit Diagram (4 Of 4)
G02818442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
