Diagnosis & Repair

For diagnosis and repair, see Fig 1.

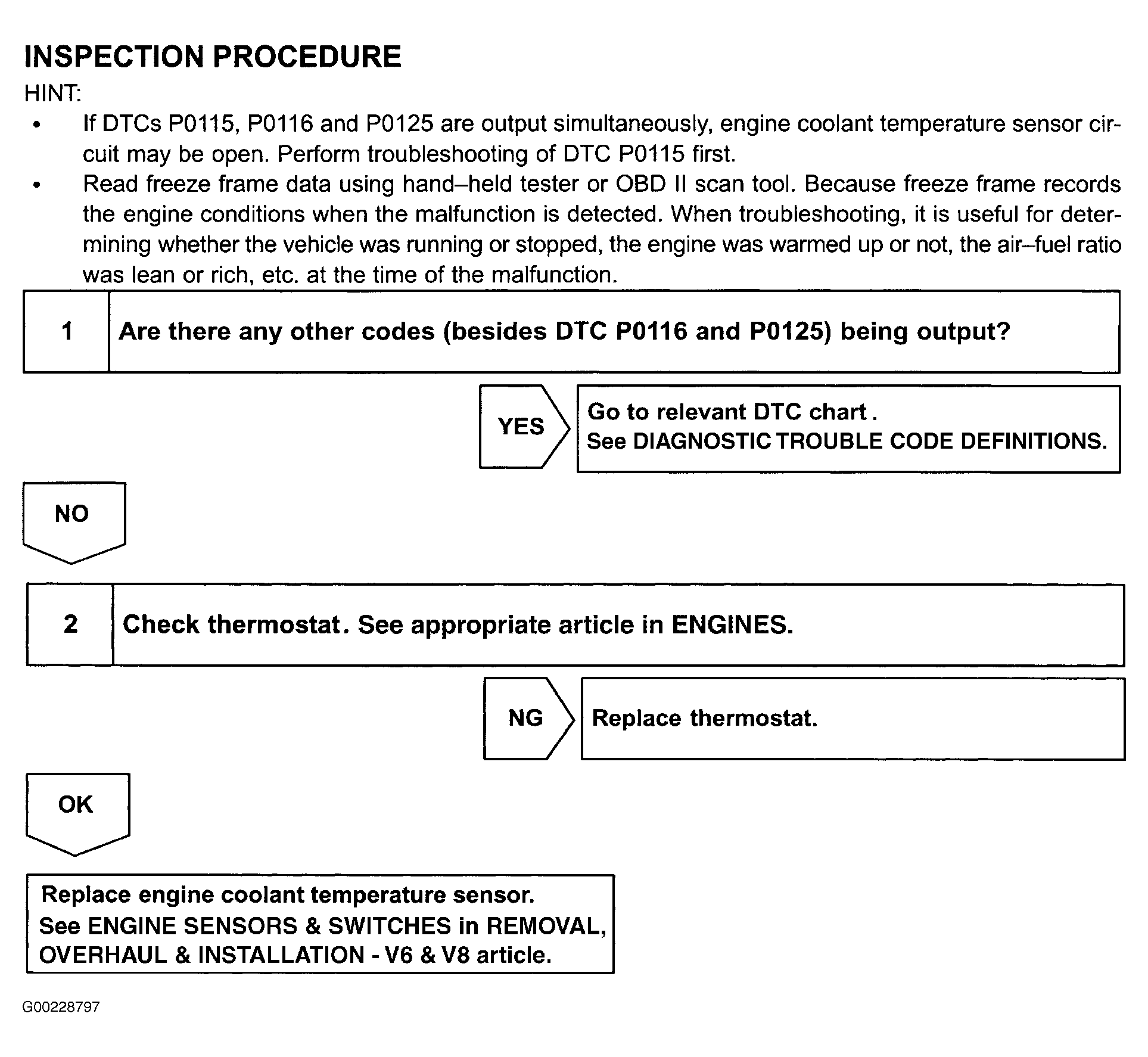

Fig 1: DTC P0116 & P0125 Diagnostic Procedure
G00228797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
