Confirmation Engine Racing Pattern

For confirmation engine racing pattern, see Fig 1.

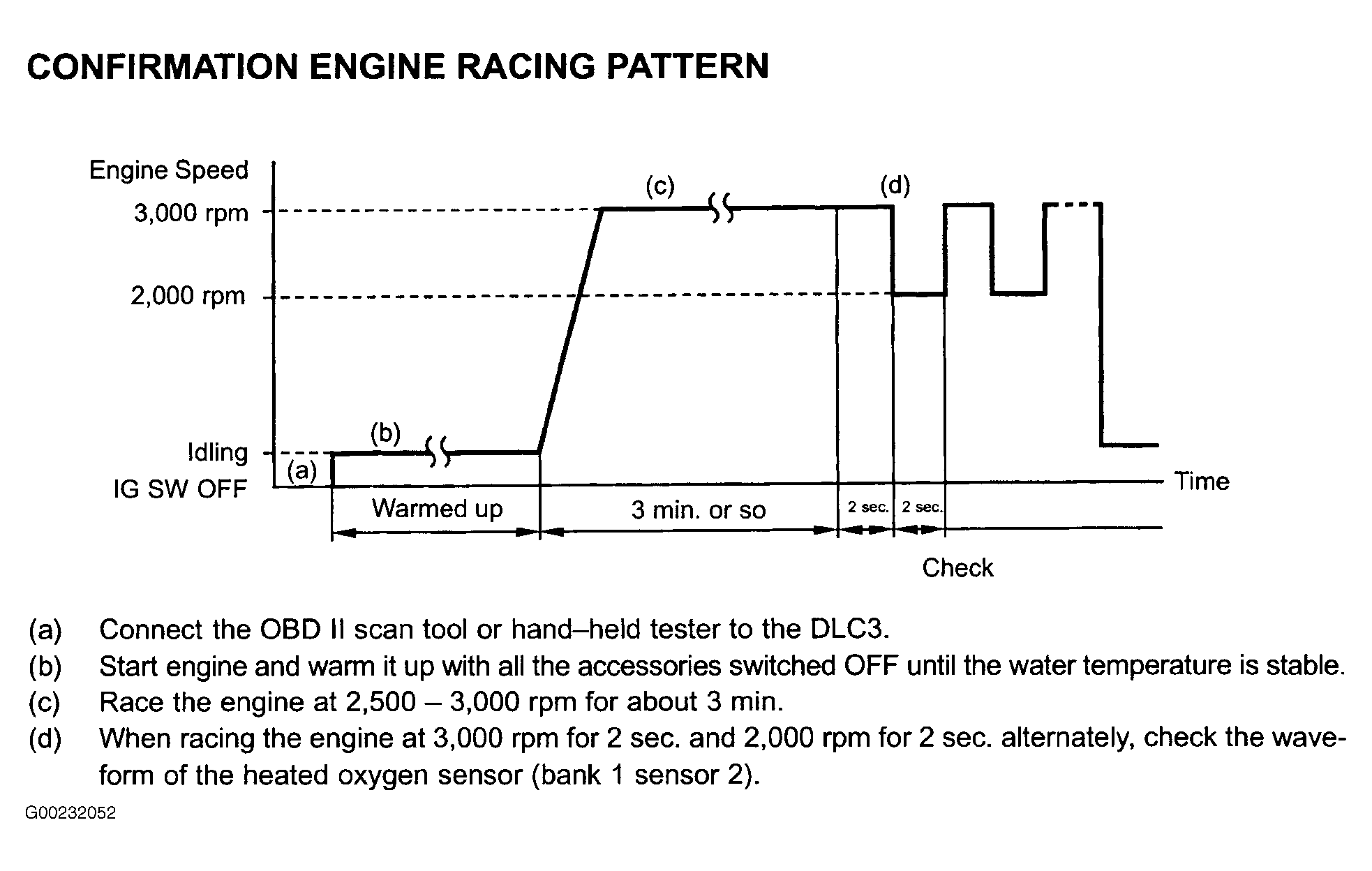

Fig 1: DTC P0420 Confirmation Engine Racing Pattern
G00232052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
