Automatic Transmission Floor Shift Assembly: Removal

REMOVE UPPER REAR CONSOLE PANEL SUB ASSEMBLY (See REMOVAL )
REMOVE FRONT ASH RECEPTACLE ASSEMBLY (See REMOVAL )
REMOVE UPPER CONSOLE PANEL SUB ASSEMBLY (See REMOVAL )
REMOVE CONSOLE BOX PLATE (See REMOVAL )
REMOVE REAR CONSOLE BOX ASSEMBLY (See REMOVAL )
REMOVE LH AND RH SCUFF PLATES (See REMOVAL )
REMOVE LH AND RH COWL SIDE TRIMS (See REMOVAL )
REMOVE LOWER NO.4 INSTRUMENT PANEL SUB ASSEMBLY (See REMOVAL )
REMOVE NO.2 INSTRUMENT PANEL UNDER COVER SUB ASSEMBLY (See REMOVAL )
REMOVE LOWER INSTRUMENT PANEL SUB ASSEMBLY (See REMOVAL )
Taiwan Spec.:
REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB ASSEMBLY (See REMOVAL )
Taiwan Spec.:
REMOVE RADIO TUNER OPENING COVERS WITH HEATER CONSOLE & ACCESSORY ASSEMBLY (See REMOVAL )
Except Taiwan spec.:
REMOVE RADIO ASSEMBLY WITH HEATER CONSOLE & ACCESSORY ASSEMBLY (See REMOVAL )
REMOVE FRONT CONSOLE BOX ASSEMBLY (See REMOVAL )
w/ Rear Heater:
REMOVE REAR CONSOLE NO.1 BOX ASSEMBLY CONSOLE BOX DUCT

Remove the clip and duct.
REMOVE FLOOR SHIFT LEVER ASSEMBLY

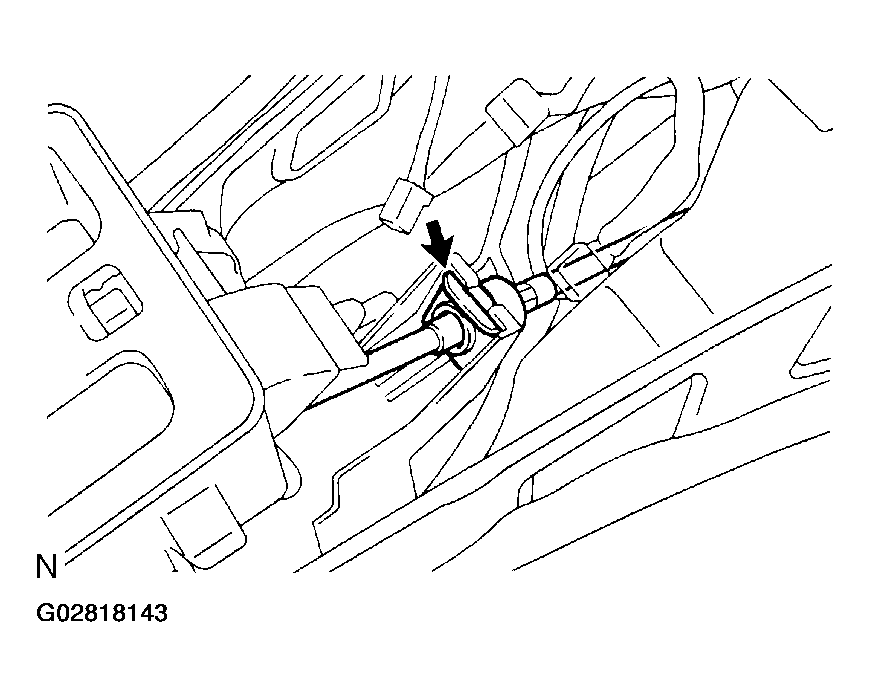

1. Remove the clip and disconnect the shift cable from the floor shift assembly.
2. Disconnect the wire harness from the wire harness clamp.
3. Remove the 2 bolts from the brace.

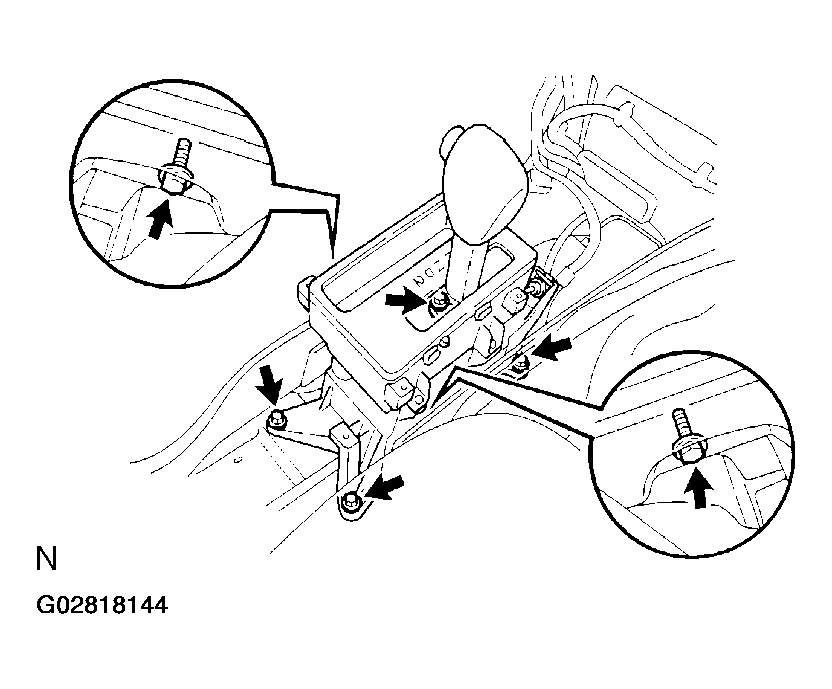

4. Remove the 4 bolts and floor shift assembly.

  Fig 2: Removing Floor Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 12 N.m (120kgf.cm, 9 ft.lbf)
