Fail-Safe Mode Chart
If any of the following codes is recorded, the ECM enters fail-safe mode. See
Fig 1
.

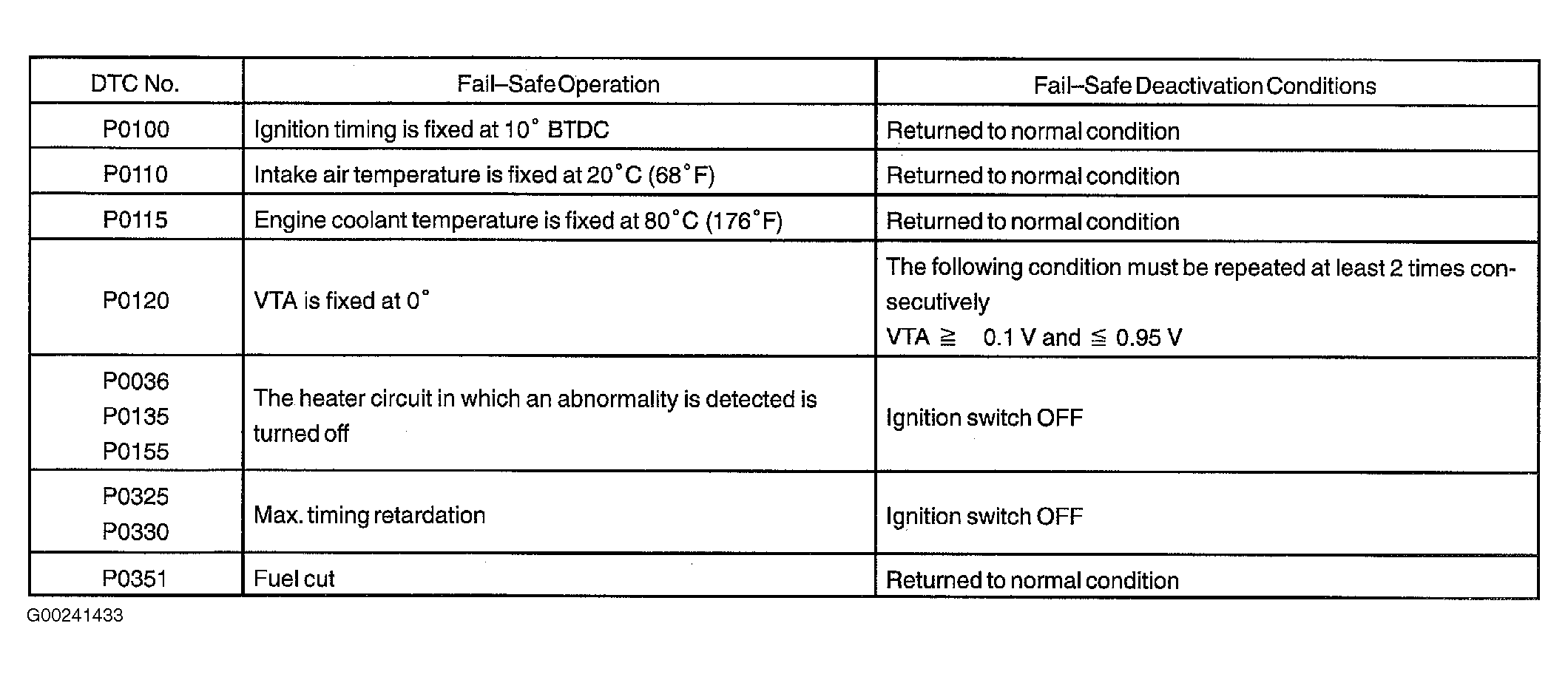

Fig 1: Identifying Fail-Safe Mode Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
