Engine Lubrication System: Components

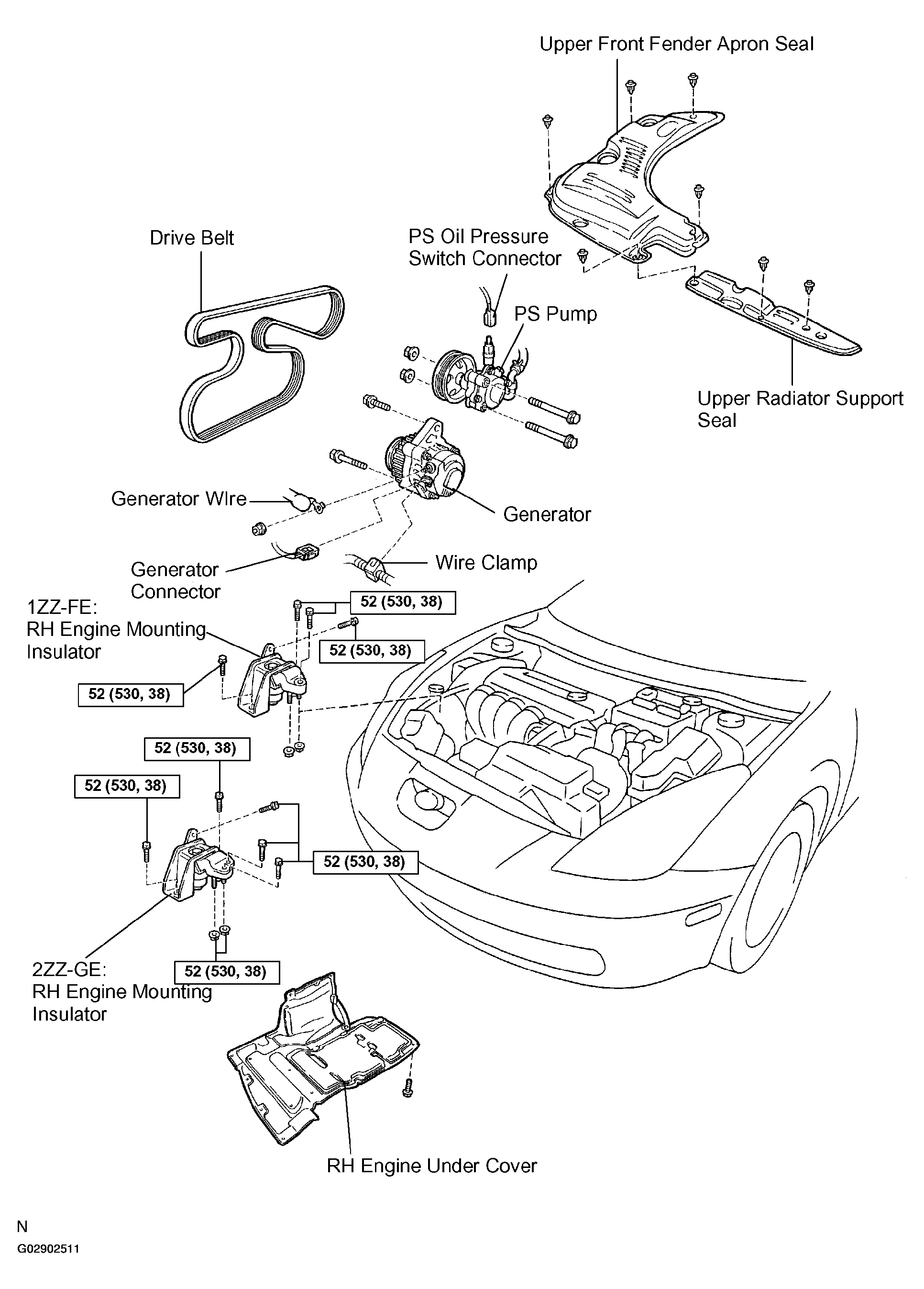

Fig 1: Exploded View Of Oil Pump Components (1 Of 4)
G02902511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

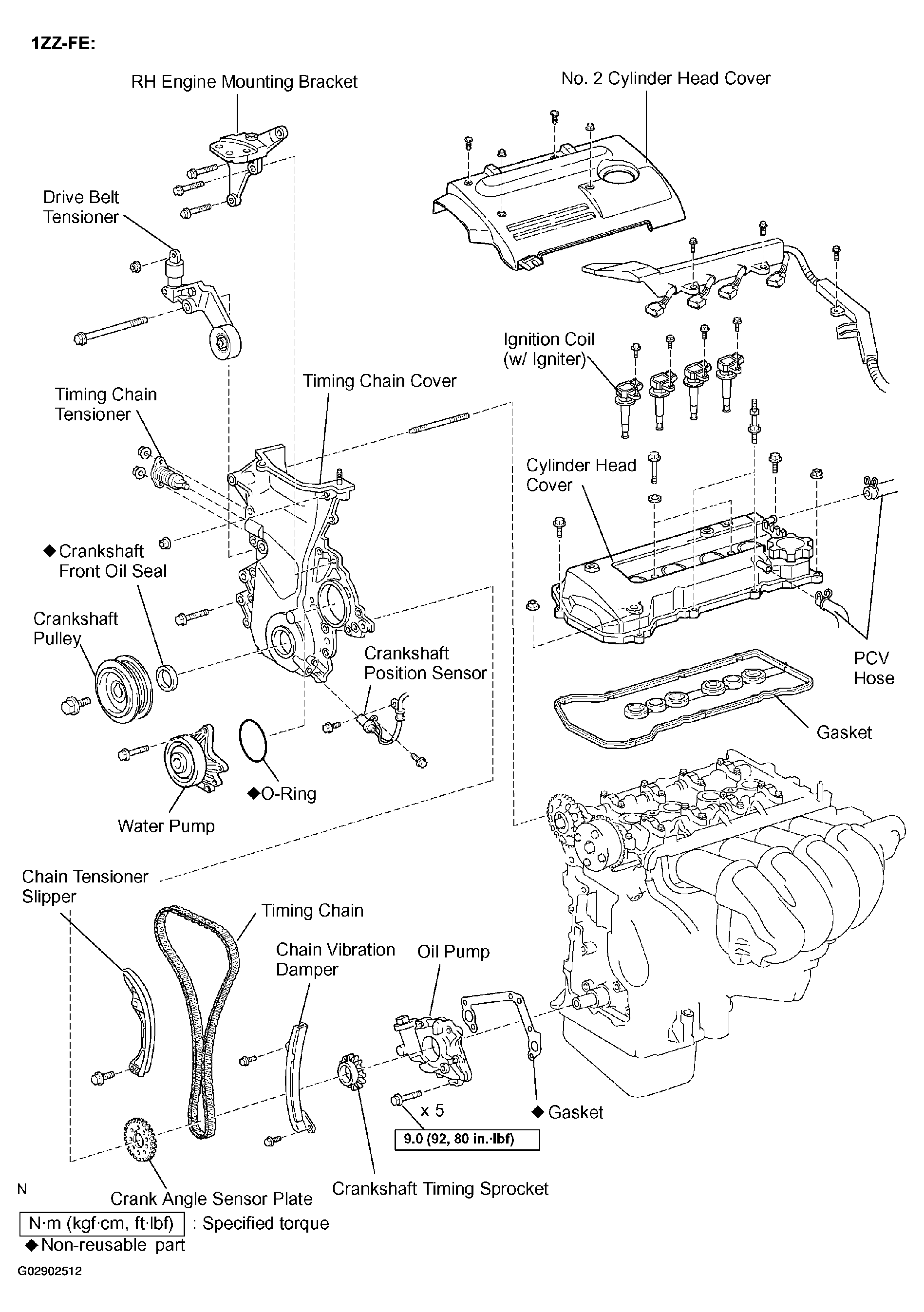

Fig 2: Exploded View Of Oil Pump Components (2 Of 4)
G02902512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

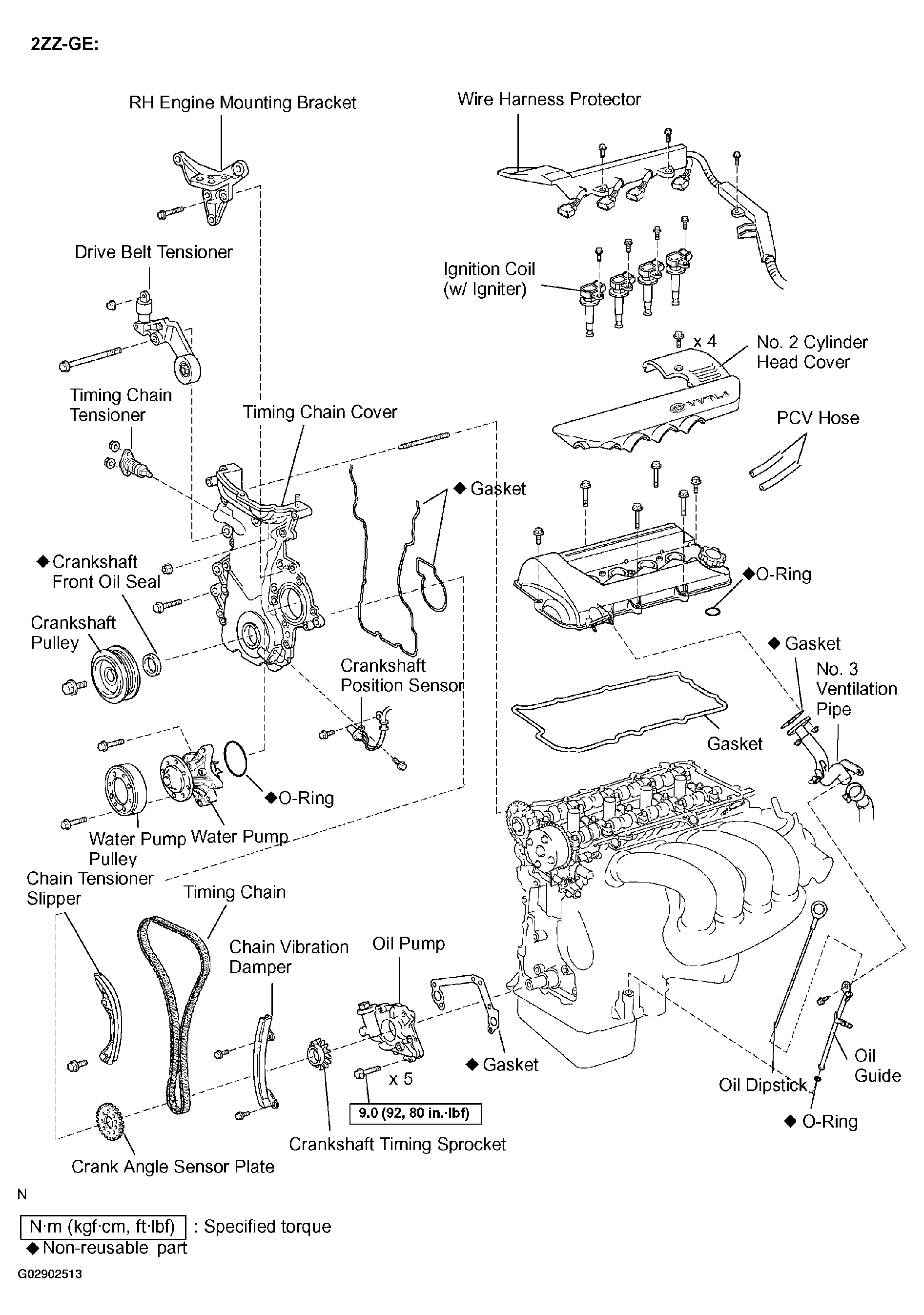

Fig 3: Exploded View Of Oil Pump Components (3 Of 4)
G02902513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

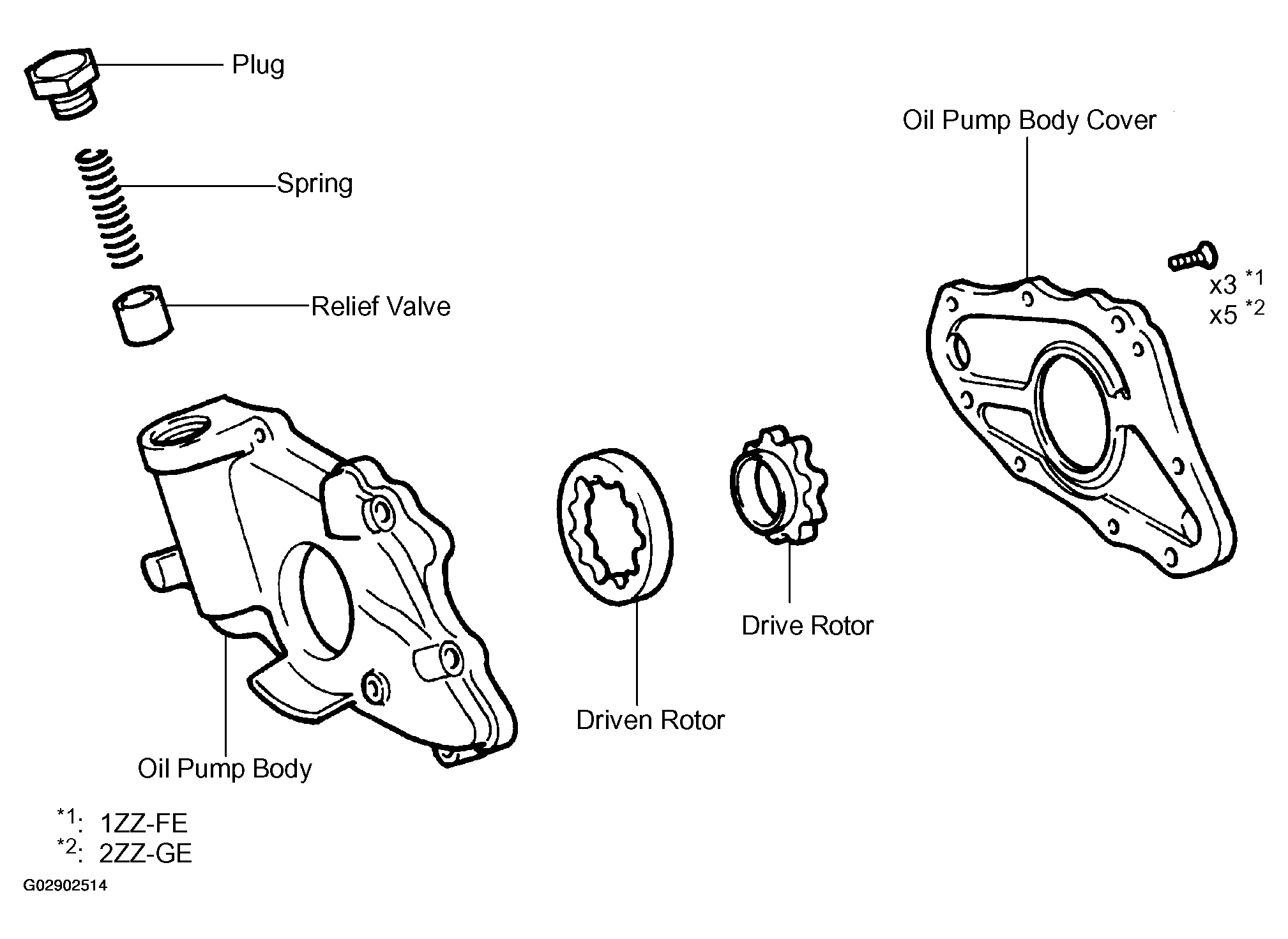

Fig 4: Exploded View Of Oil Pump Components (4 Of 4)
G02902514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

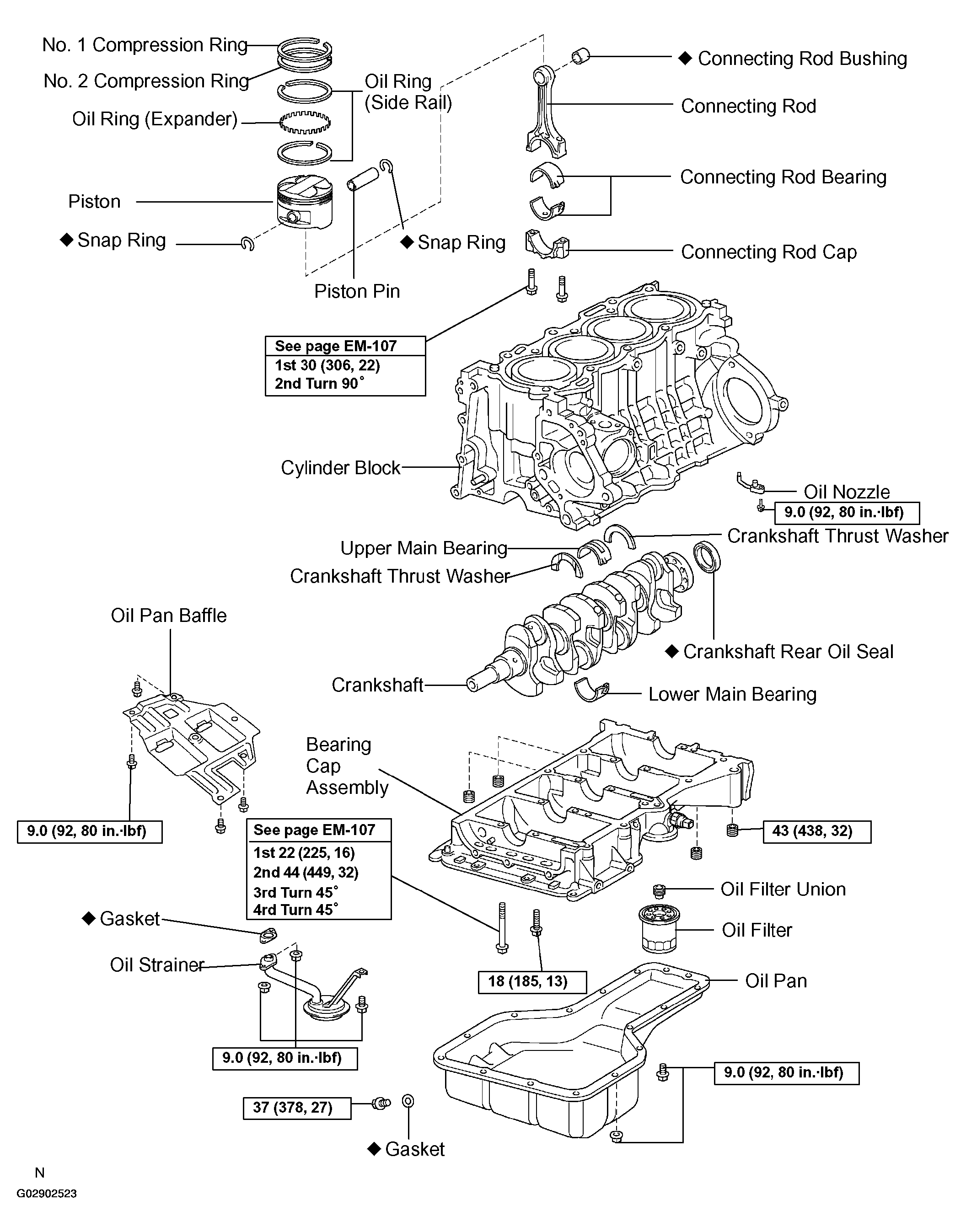

Fig 1: Exploded View Of Engine Assembly
G02902523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
