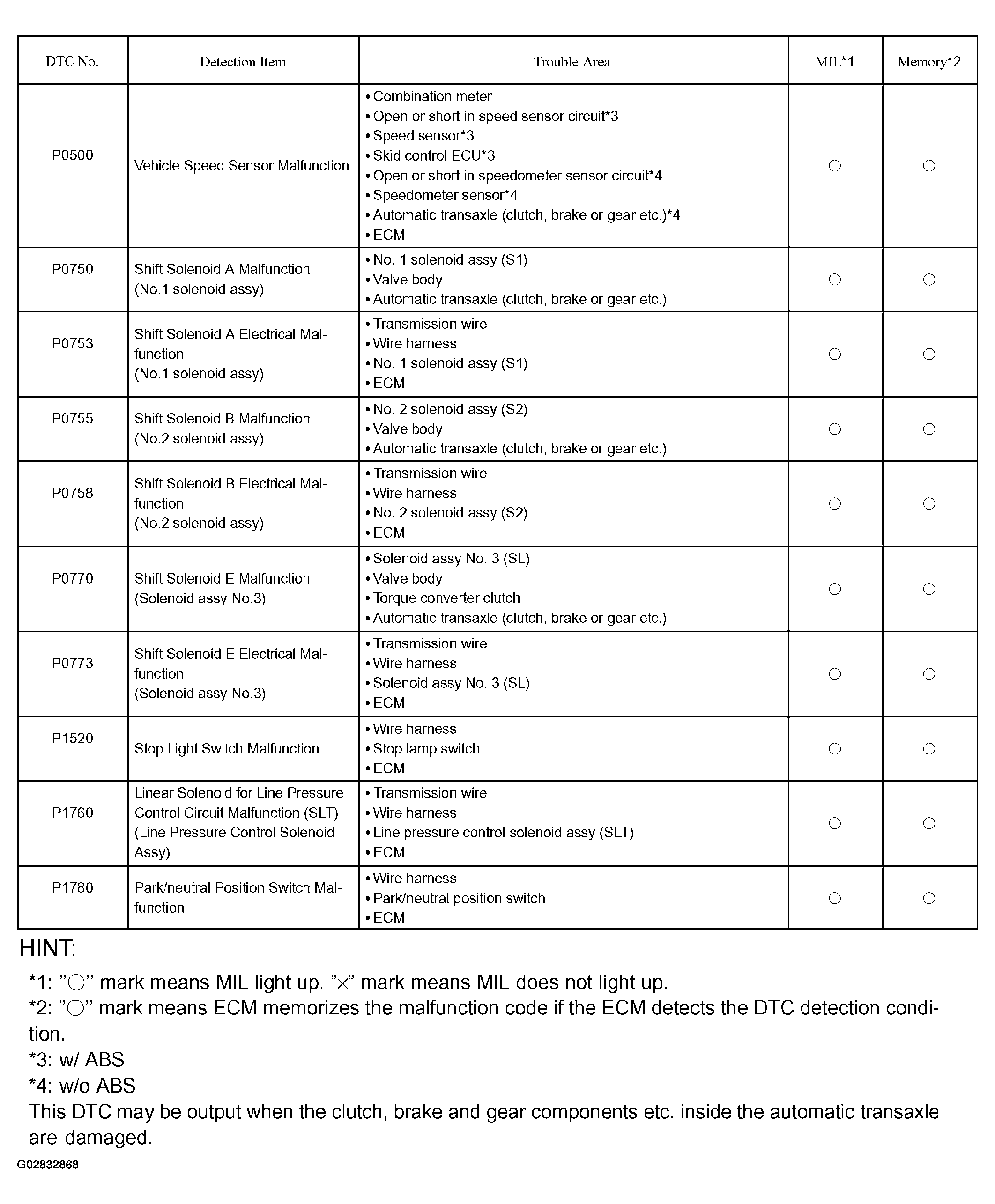

Diagnostic Trouble Code Chart
If a DTC is displayed during the DTC check, check the circuit.
ECT DIAGNOSTIC TROUBLE CODE
| DTC | Detection Item |
|---|---|
| P0500 | See DTC P0500: VEHICLE SPEED SENSOR MALFUNCTION |
| P0750 | Shift Solenoid A Malfunction (No. 1 Solenoid Assembly) |
| P0753 | Shift Solenoid A Electrical Malfunction (No. 1 Solenoid Assembly) |
| P0755 | Shift Solenoid B Malfunction (No. 2 Solenoid Assembly) |
| P0758 | Shift Solenoid B Electrical Malfunction (No. 2 Solenoid Assembly) |
| P0770 | Shift Solenoid E Malfunction (Solenoid Assembly No. 3) |
| P0773 | Shift Solenoid E Electrical Malfunction (Solenoid Assembly No. 3) |
| P1520 | Stop Light Switch Malfunction |
| P1760 | Linear Solenoid For Line Pressure Control Circuit Malfunction (SLT) (Line Pressure Control Solenoid Assy |
| P1780 | Park/Neutral Position Switch Malfunction |
