O/D Main Switch Circuit: Wiring Diagram

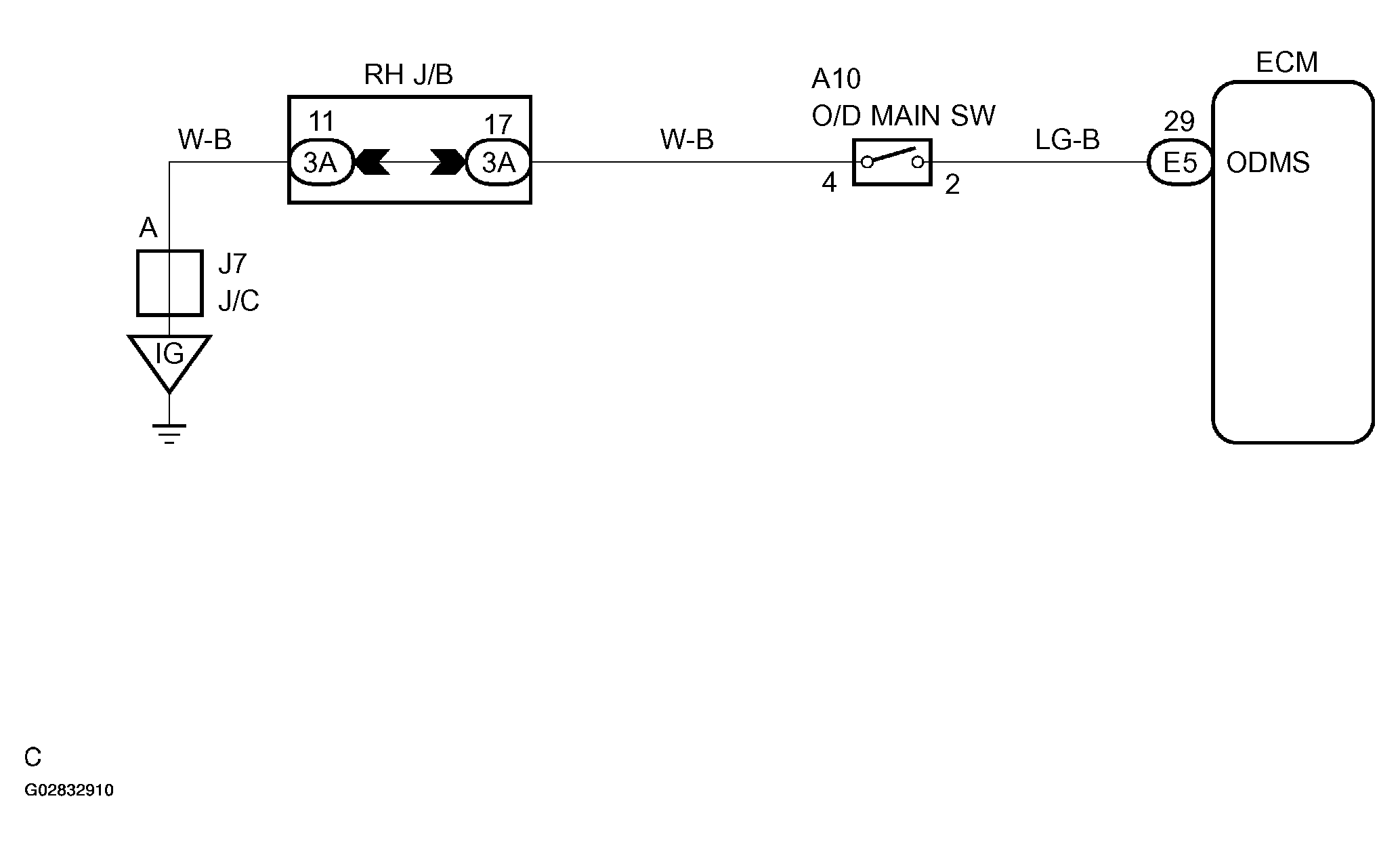

Fig 1: O/D Main Switch Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
