Service Data

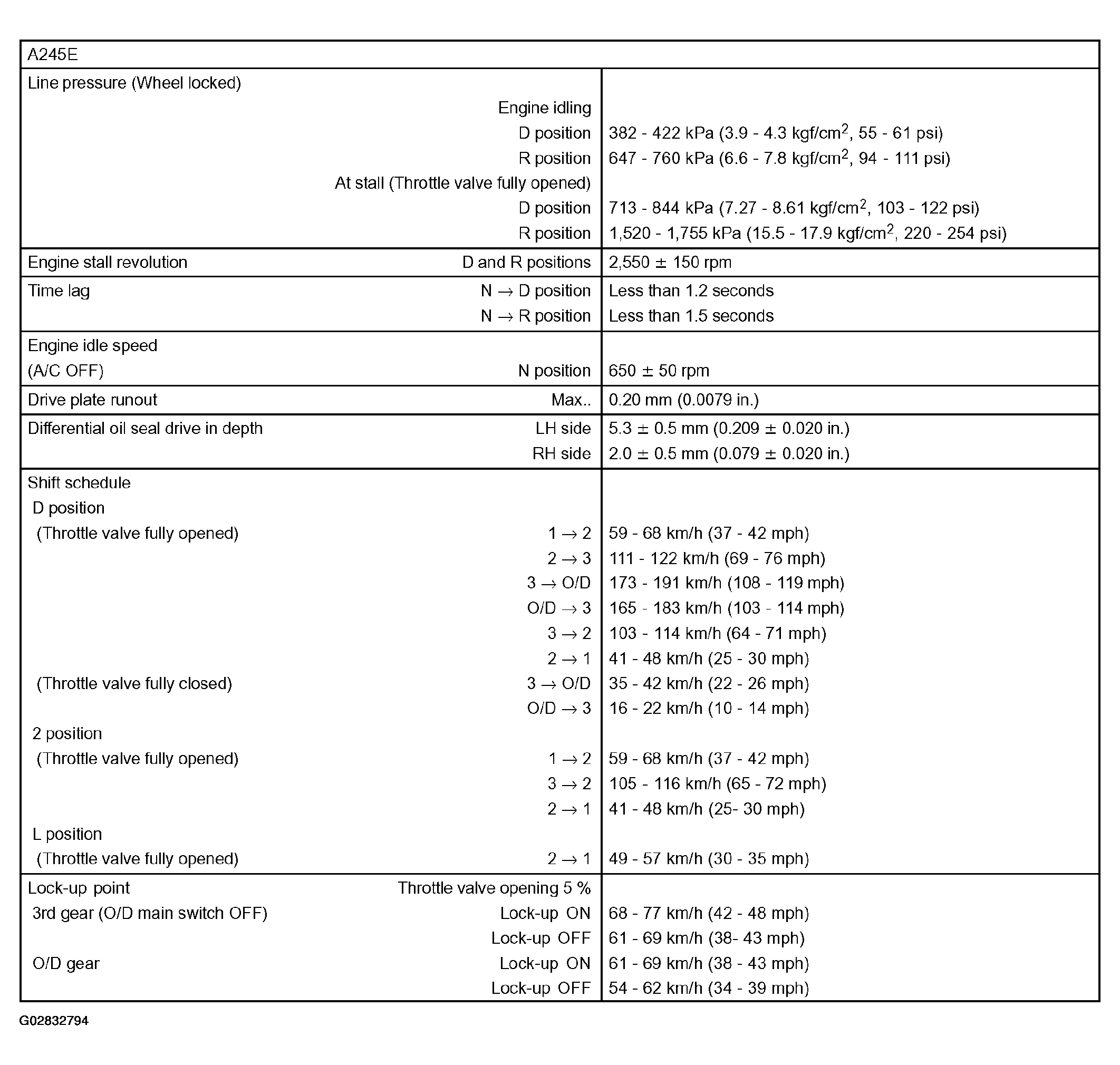

Fig 1: Automatic Transmission/Transaxle Service Specifications Data

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Automatic Transmission/Transaxle Service Specifications Data

A245E
Line pressure (Wheel locked)
		Engine idling
		D position	382 - 422 kPa (3.9 - 4.3 kgf/cm² , 55 - 61 psi)
		R position	647 - 760 kPa (6.6 - 7.8 kgf/cm² , 94 - 111 psi)
		At stall (Throttle valve fully opened)
		D position	713 - 844 kPa (7.27 - 8.61 kgf/cm² , 103 - 122 psi)
		R position	1,520 - 1,755 kPa (15.5 - 17.9 kgf/cm² , 220 - 254 psi)
Engine stall revolution		D and R positions	2,550 ± 150 rpm
Time lag		N - D position	Less than 1.2 seconds
Time lag		N - R position	Less than 1.5 seconds
Engine idle speed
(A/C OFF)		N position	650 ± 50 rpm
Drive plate runout		Max..	0.20 mm (0.0079 in.)
Differential oil seal drive in depth		LH side	5.3 ± 0.5 mm (0.209 ± 0.020 in.)
Differential oil seal drive in depth		RH side	2.0 ± 0.5 mm (0.079 ± 0.020 in.)
Shift schedule
	D position
	(Throttle valve fully opened)	1 - 2	59 - 68 km/h (37 - 42 mph)
		2 - 3	111 - 122 km/h (69 - 76 mph)
		3 - O/D	173 - 191 km/h (108 - 119 mph)
		O/D - 3	165 - 183 km/h (103 - 114 mph)
		3 - 2	103 - 114 km/h (64 - 71 mph)
		2 - 1	41 - 48 km/h (25 - 30 mph)
	(Throttle valve fully closed)	3 - O/D	35 - 42 km/h (22 - 26 mph)
	(Throttle valve fully closed)	O/D - 3	16 - 22 km/h (10 - 14 mph)
	2 position
	(Throttle valve fully opened)	1 - 2	59 - 68 km/h (37 - 42 mph)
		3 - 2	105 - 116 km/h (65 - 72 mph)
		2 - 1	41 - 48 km/h (25 - 30 mph)
	L position
	(Throttle valve fully opened)	2 - 1	49 - 57 km/h (30 - 35 mph)
Lock-up point		Throttle valve opening 5 %
	3rd gear (O/D main switch OFF)	Lock-up ON	68 - 77 km/h (42 - 48 mph)
	3rd gear (O/D main switch OFF)	Lock-up OFF	61 - 69 km/h (38 - 43 mph)
	O/D gear	Lock-up ON	61 - 69 km/h (38 - 43 mph)
	O/D gear	Lock-up OFF	54 - 62 km/h (34 - 39 mph)
