Automatic Transmission Floor Shift Assembly: Overhaul
- REMOVE CONSOLE PANEL UPPER (See CONSOLE PANEL UPPER ).
- REMOVE CONSOLE BOX CARPET (See CONSOLE BOX CARPET ).
- REMOVE PARKING BRAKE HOLE COVER SUB-ASSY (See PARKING BRAKE HOLE COVER SUB-ASSY ).
- REMOVE CONSOLE BOX SUB-ASSY REAR (See CONSOLE BOX SUB-ASSY REAR ).
- DISCONNECT FLOOR SHIFT CABLE TRANSMISSION CONTROL SHIFT

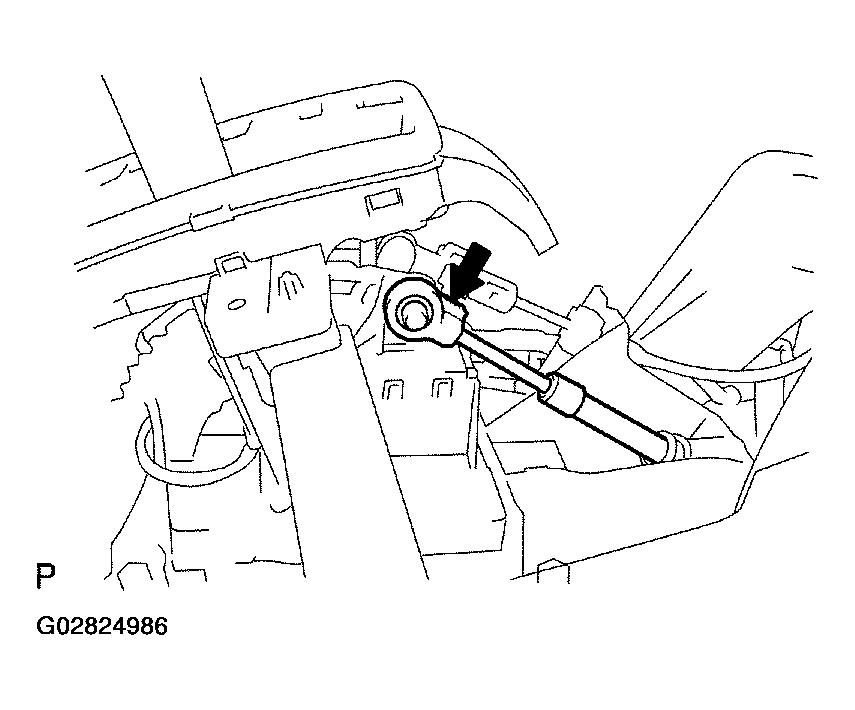

- Remove the cable end from the rod of the floor shift assembly.
- Using a screw driver, disconnect the control cable from the shift lever plate.
- DISCONNECT FLOOR SHIFT PARKING LOCK CABLE ASSY

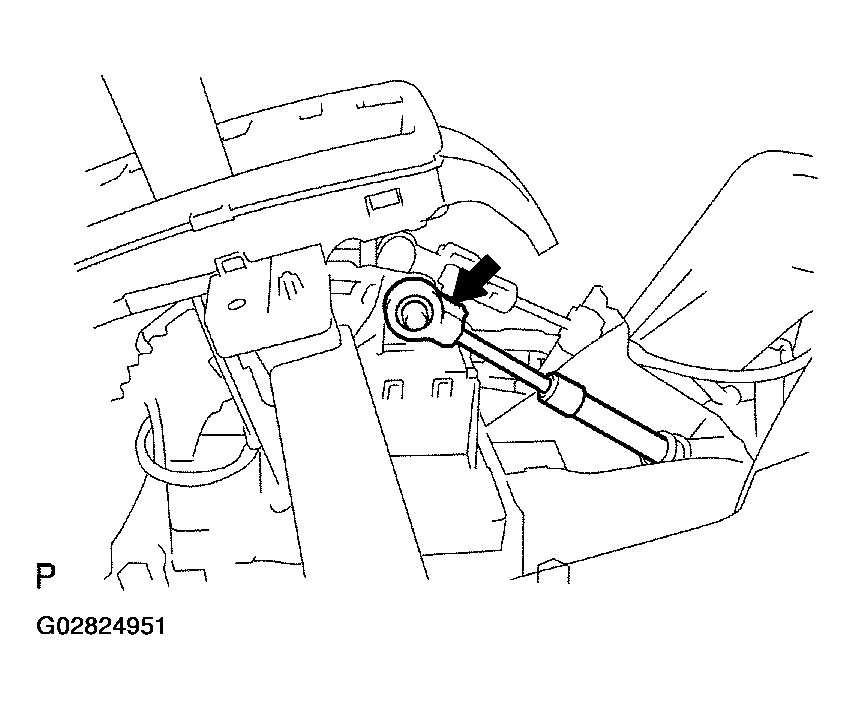

- Remove the cable end from the lever pin of the floor shift assembly.
- Using a screw driver, disconnect the parking lock cable from the floor shift assembly.
- REMOVE FLOOR SHIFT ASSY
- Disconnect the 2 connector.
- Disconnect the 2 wire harness clamps from the shift lever Assy.

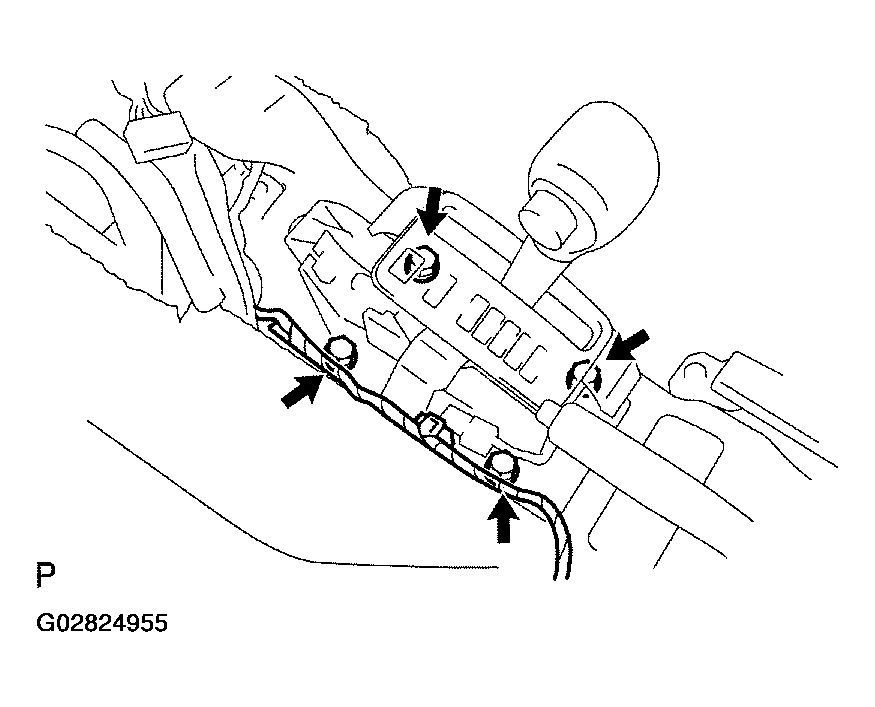

- Remove the 4 bolts and floor shift Assy.
- REMOVE FLOOR SHIFT LEVER KNOB SUB-ASSY

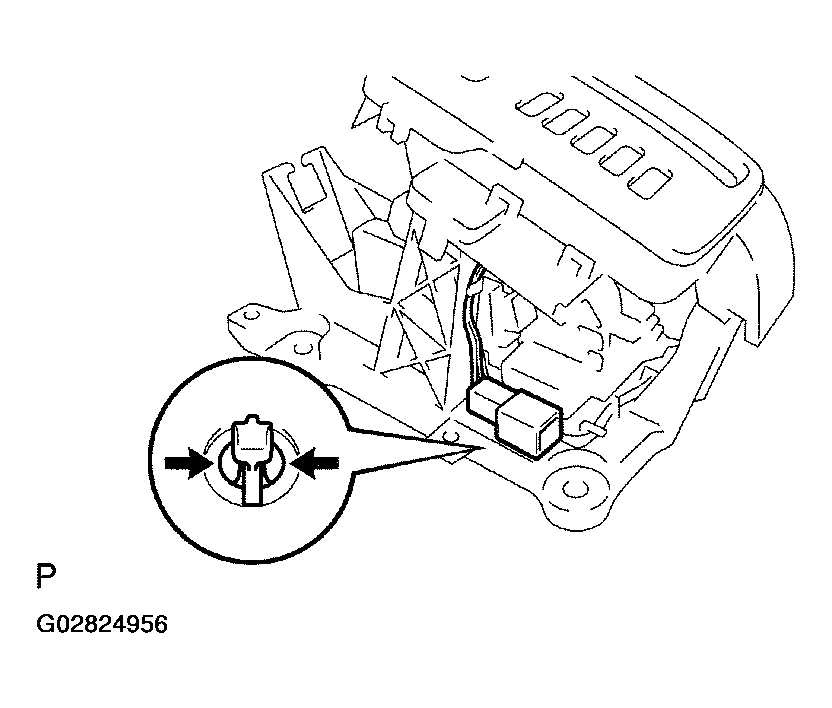

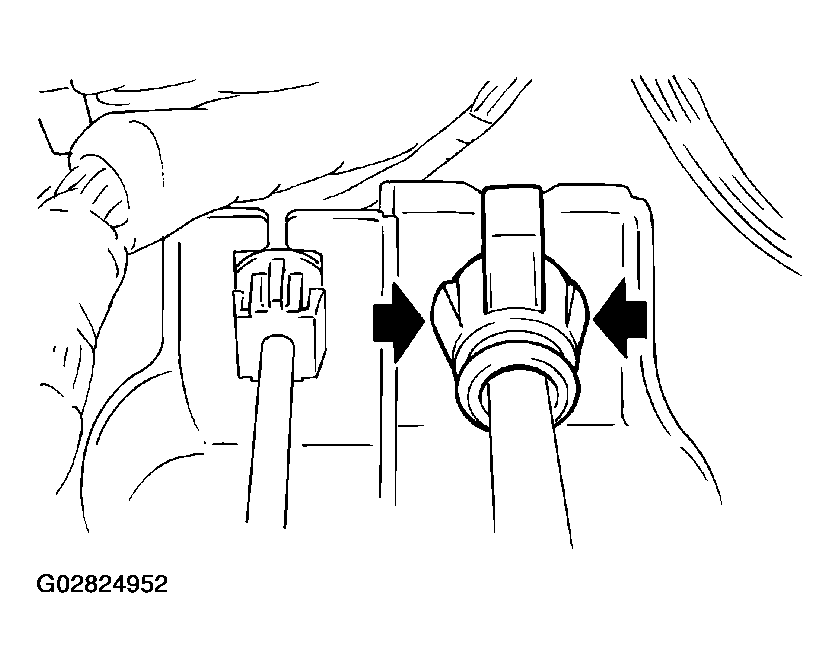

- Releasing the lock by pressing the slick, disconnect the indicator lamp wire connector from the shift lever plate.
- Disengage the secondary locking device.
- Using a small screwdriver, disengage the locking lug of the terminals 2 and 4, and pull the terminals out from the rear.
- Disconnect the wire harness from the clamps.

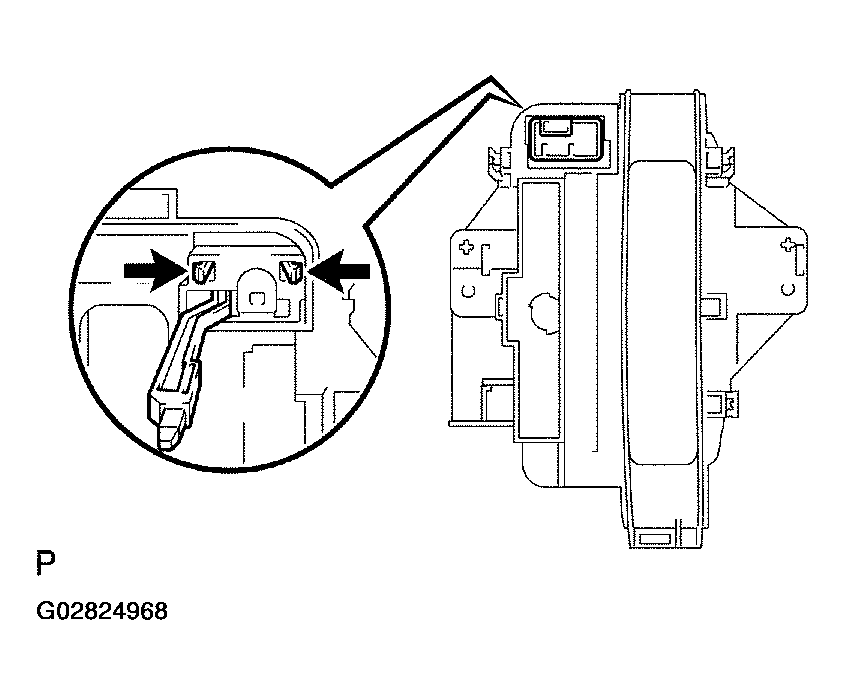

- Remove the 2 screws and shift lever knob sub-assembly.
NOTE: Pay attention not to apply unnatural load to transmission control switch wire harness. - REMOVE FLOOR SHIFT LEVER KNOB COVER
- Remove the shift lever knob cover.
- REMOVE TRANSMISSION CONTROL SWITCH
- Using a small screw driver, remove the transmission control switch.
- REMOVE SHIFT LEVER KNOB BUTTON
- Remove the shift lever knob button and spring.
- REMOVE INDICATOR LAMP WIRE SUB-ASSY
- Remove the indicator lamp wire sub-assy.
- Remove the cap and bulb from the indicator lamp wire sub-assy.
- REMOVE SHIFT LOCK RELEASE BUTTON COVER
- Using a screwdriver, remove the shift lock release button cover.
- REMOVE POSITION INDICATOR HOUSING UPPER

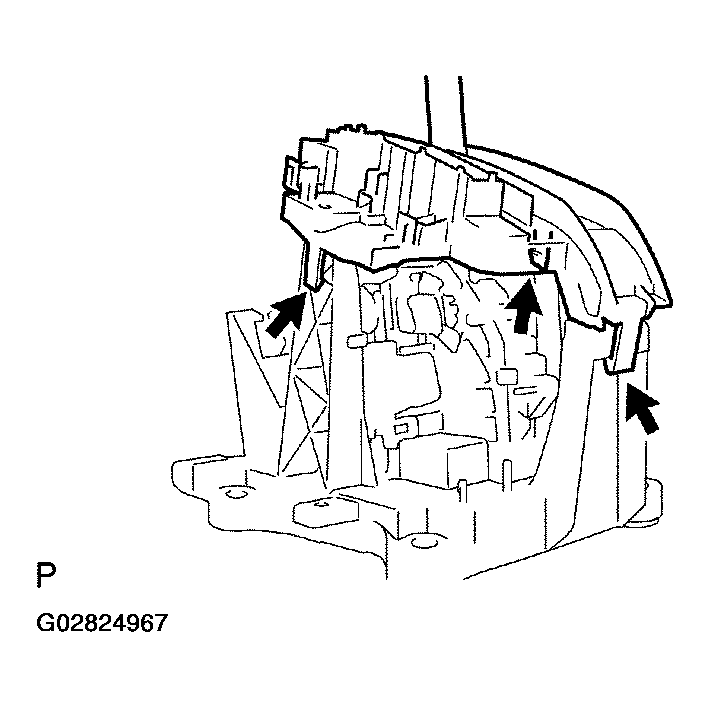

- Using a screwdriver, release the 4 claws and remove the position indicator housing upper.
- REMOVE CONTROL POSITION INDICATOR PLATE
- Remove the position indicator plate from the position indicator housing upper.
- REMOVE POSITION INDICATOR SLIDE COVER
- Remove the position indicator slide cover.
- REMOVE POSITION INDICATOR HOUSING LOWER

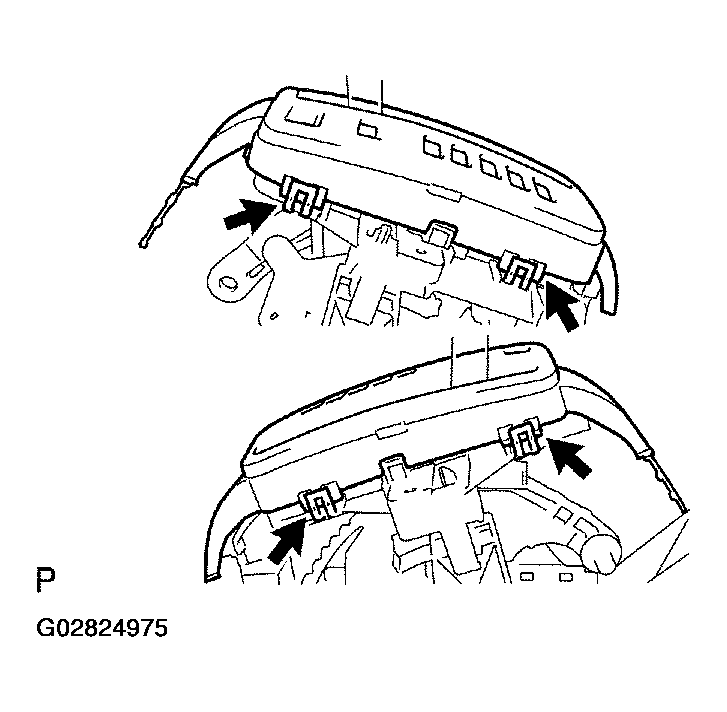

- Using a screwdriver, release the 3 claws and remove the position indicator housing lower.
- REMOVE SHIFT LOCK RELEASE BUTTON
- Remove the shift lock release button and spring.
- REMOVE SHIFT LOCK CONTROL UNIT ASSY
- Using a screwdriver, remove the toggle lever support pin and shift lock control unit Assy.

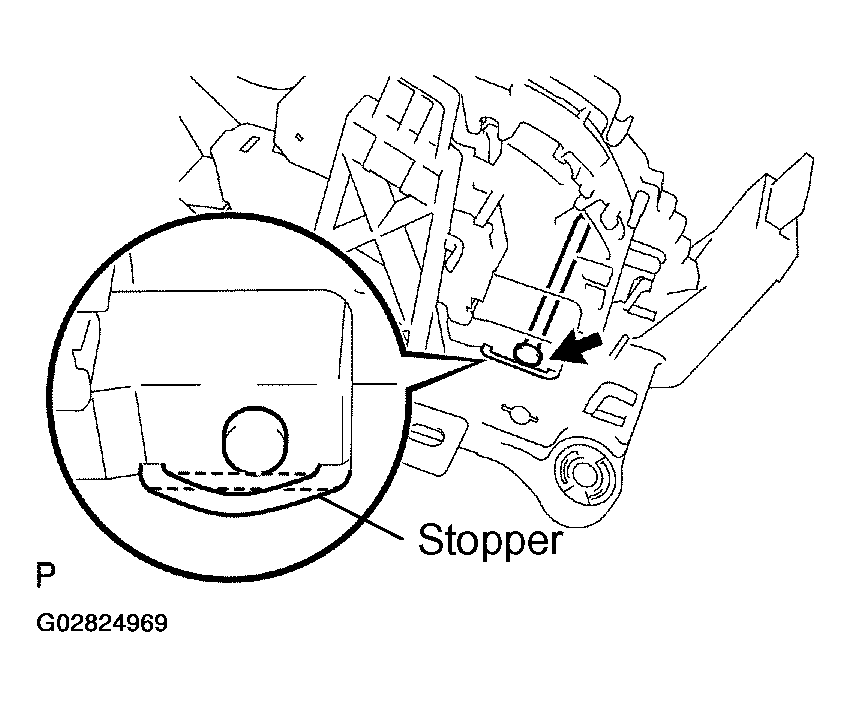

NOTE: Work so as not to damage the stopper position. - REMOVE SHIFT LEVER INSERT NO. 1
- INSTALL SHIFT LEVER INSERT NO. 1
- INSTALL SHIFT LOCK CONTROL UNIT ASSY
- Install the shift lock control unit Assy and toggle lever support pin.
NOTE: Work so as not to damage the stopper position. - INSTALL SHIFT LOCK RELEASE BUTTON

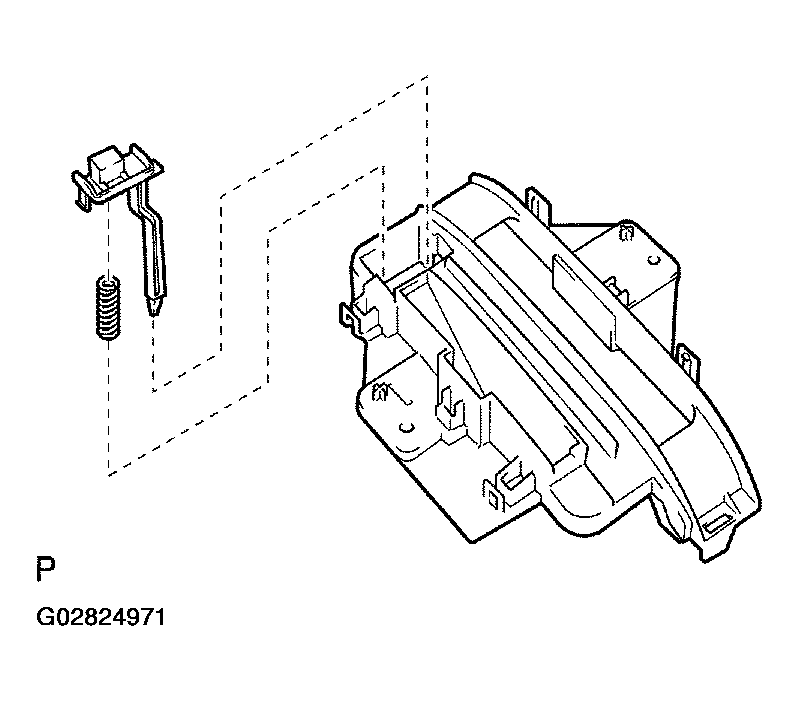

- Apply MP grease on the shift lock release spring and shift lock release button.
- Install the shift lock release button and shift lock release spring to the position indicator housing lower.
HINT:
Fit the claws securely.
- INSTALL POSITION INDICATOR HOUSING LOWER
- Install the position indicator housing lower.
HINT:
Fit the claws securely.
- INSTALL POSITION INDICATOR SLIDE COVER
- Install the position indicator slide cover.
- INSTALL CONTROL POSITION INDICATOR PLATE
- Install the position indicator plate to the position indicator housing upper.
- INSTALL POSITION INDICATOR HOUSING UPPER
- Install the position indicator housing upper.
HINT:

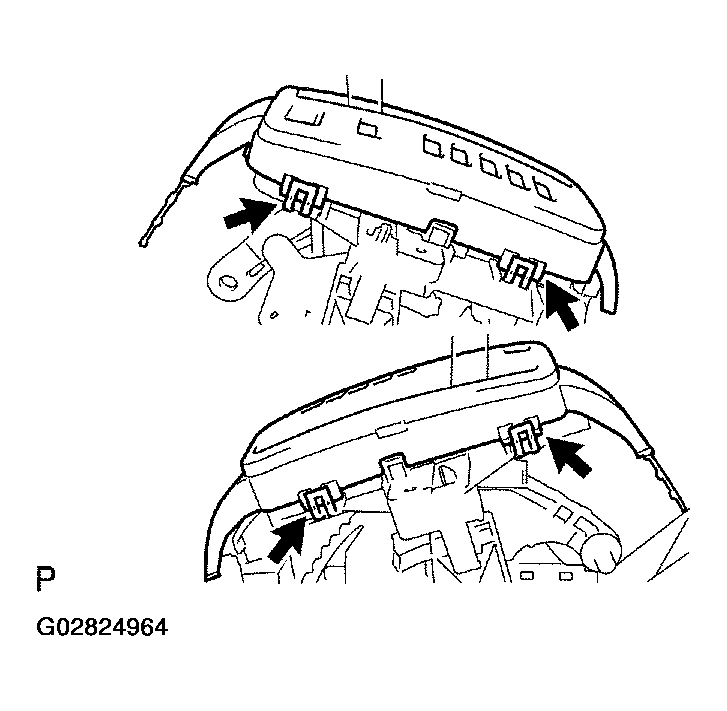

Fit the claws securely.
- INSTALL SHIFT LOCK RELEASE BUTTON COVER
- Install the shift lock release button cover to the position indicator housing upper.
- INSTALL INDICATOR LAMP WIRE SUB-ASSY
- Install the bulb and cap to the indicator lamp wire sub-assy.
- Install the indicator lamp wire sub-assy.
- INSTALL SHIFT LEVER KNOB BUTTON
- Apply MP grease to the spring and shift lever knob button.
- Install the spring and shift lever knob button.
HINT:
Fit the claws securely.
- INSTALL TRANSMISSION CONTROL SWITCH
- Insert the wire harness into the shift lever knob from the part shown by the arrow, and install the transmission control switch to the shift lever knob.
HINT:
Fit the claws securely.
- INSTALL FLOOR SHIFT LEVER KNOB COVER
- Install the shift lever knob cover.
- INSTALL FLOOR SHIFT LEVER KNOB SUB-ASSY
- Install the shift lever knob sub-assembly with the 2 screws.
HINT:
Coat the threads of screws with sealant.
Sealant:
Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent
NOTE: Make sure not to catch wire harness. - Install the 2 terminals into the indicator lamp wire connector.

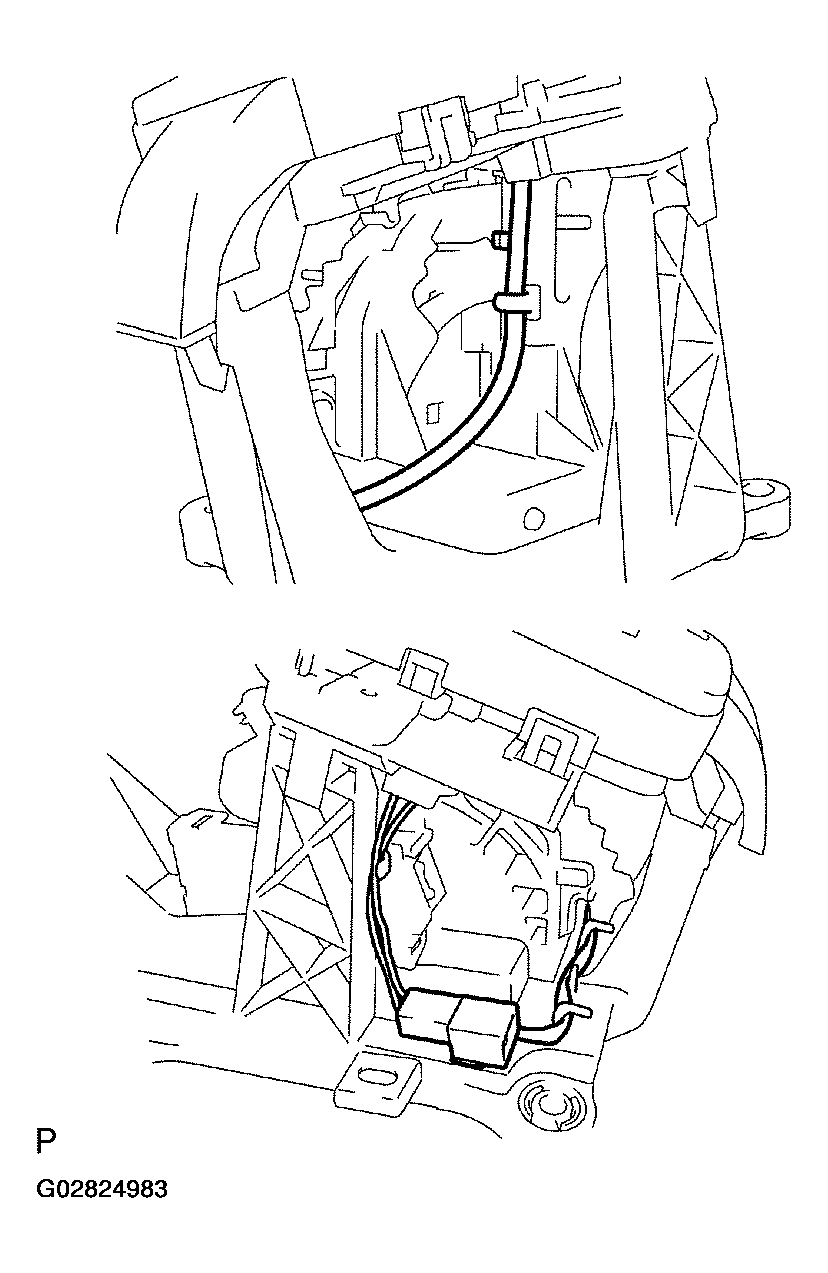

- Install the wire harness and connector as shown in the illustration.
- Install the shift lever knob sub-assembly with the 2 screws.
- INSTALL FLOOR SHIFT ASSY
- Install the floor shift Assy with the 4 bolts.
Torque: 12 N.m (122 kgf.cm, 9 ft.lbf)
HINT:

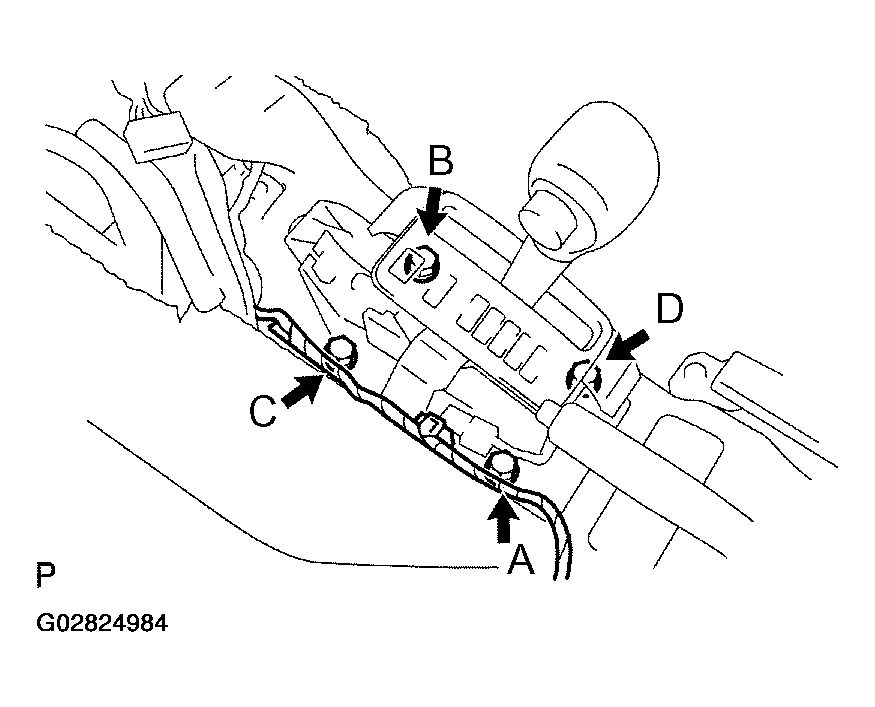

Tighten them in the order, A, B, C and D.
- Connect the 2 wire harness clamps to the shift lever plate.
- Connect the 2 connector.
- Install the floor shift Assy with the 4 bolts.
- CONNECT FLOOR SHIFT CABLE TRANSMISSION CONTROL SHIFT
- Install the control cable to the shift lever plate.
HINT:
Fit the claws securely.
- Install the cable end to the rod of the floor shift Assy.
HINT:
Install it with the uneven surface facing upward.
- Install the control cable to the shift lever plate.
- CONNECT FLOOR SHIFT PARKING LOCK CABLE ASSY
- Set the accessory tool.
- Shift the shift lever to N position and turn the ignition switch to ACC or ON.

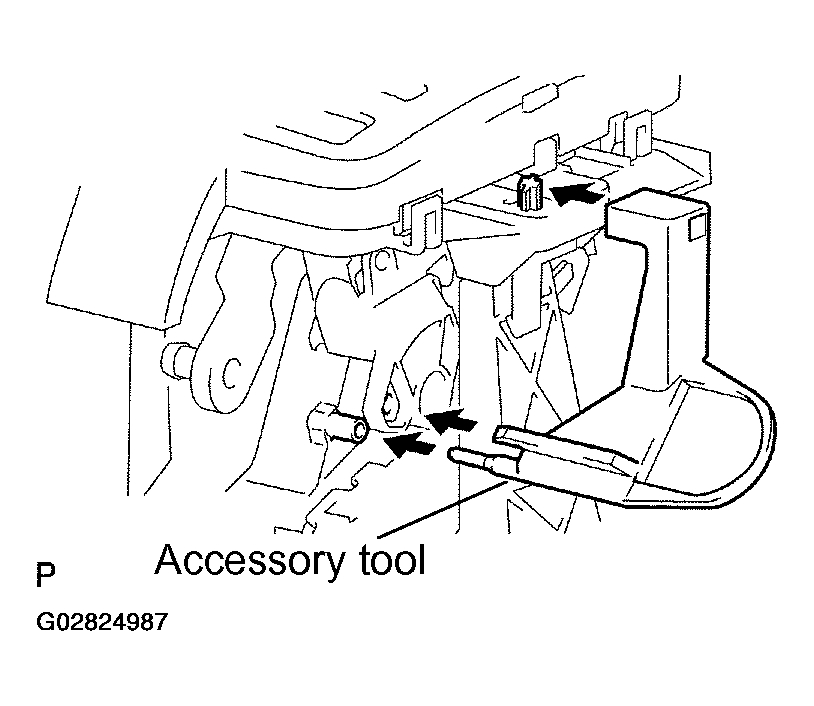

- Set the accessory tool to the shift lock control unit Assy as shown in the illustration.
Accessory tool parts No.: 33693-02010
HINT:
Only in the case of reusing the shift lock control unit Assy.
- Using a screwdriver, unlock the claw of the lock key of automatic adjustment parts.
- Insert the slide cap into the through hole and install.
HINT:
Fit the claws securely.
- Insert the lever pin into the hole in the cable end.
HINT:
Fit the claws securely.
- Lock the lock key.
HINT:
At this time, the shift lever should be in N position and the ignition key should be set to ACC or ON.
- Remove the accessory tool.
Accessory tool parts No.: 33693-02010
- Set the accessory tool.
- CHECK KEY INTERLOCK OPERATION (See ON-VEHICLE INSPECTION )
- CHECK SHIFT LOCK OPERATION (See ON-VEHICLE INSPECTION )
- CHECK SHIFT LOCK RELEASE BUTTON OPERATION (See ON-VEHICLE INSPECTION )
