Cruise Control Main Switch ASSY: Replacement

  1. DISCONNECT BATTERY NEGATIVE TERMINAL
  2. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  3. REMOVE HORN BUTTON ASSY (see  REMOVAL & INSTALLATION  )
  4. REMOVE STEERING WHEEL ASSY (see  OVERHAUL  )

    SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

  5. REMOVE CRUISE CONTROL MAIN SWITCH ASSY
    1. Remove the 2 screws and cruise control main switch assy.

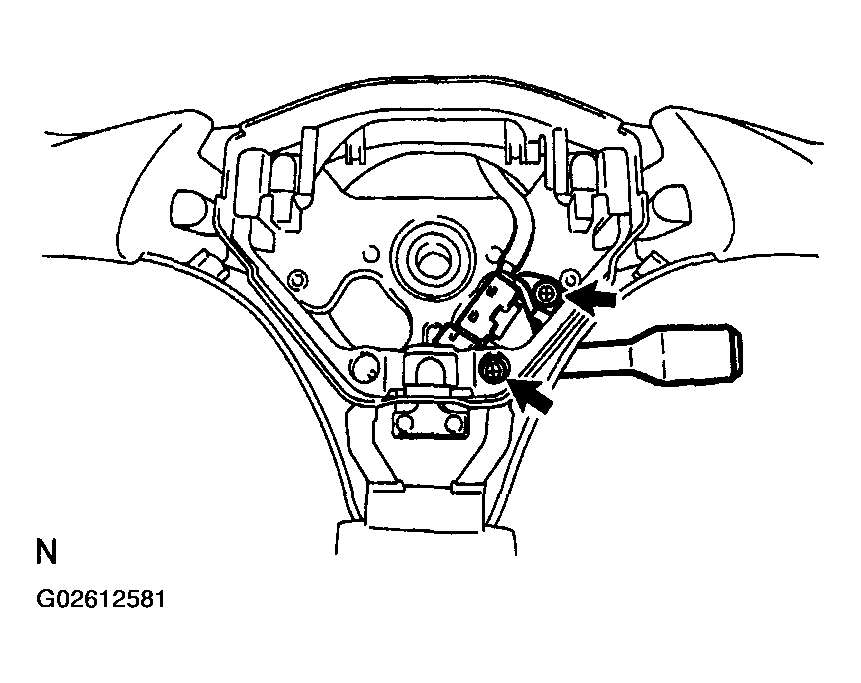

    Fig 1: Removing 2 Screws And Cruise Control Main Switch Assembly
    G02612581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. CENTER SPIRAL CABLE (see  OVERHAUL  )
  7. INSTALL STEERING WHEEL ASSY (see  OVERHAUL  )
  8. INSPECT STEERING WHEEL CENTER POINT (see  OVERHAUL  )
  9. INSPECT HORN BUTTON ASSY (see  OVERHAUL  )
  10. INSTALL HORN BUTTON ASSY (see  REMOVAL & INSTALLATION  )
