Power Door Lock Control System - Diagnostics
>>
Problem Symptoms
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Problem Symptoms

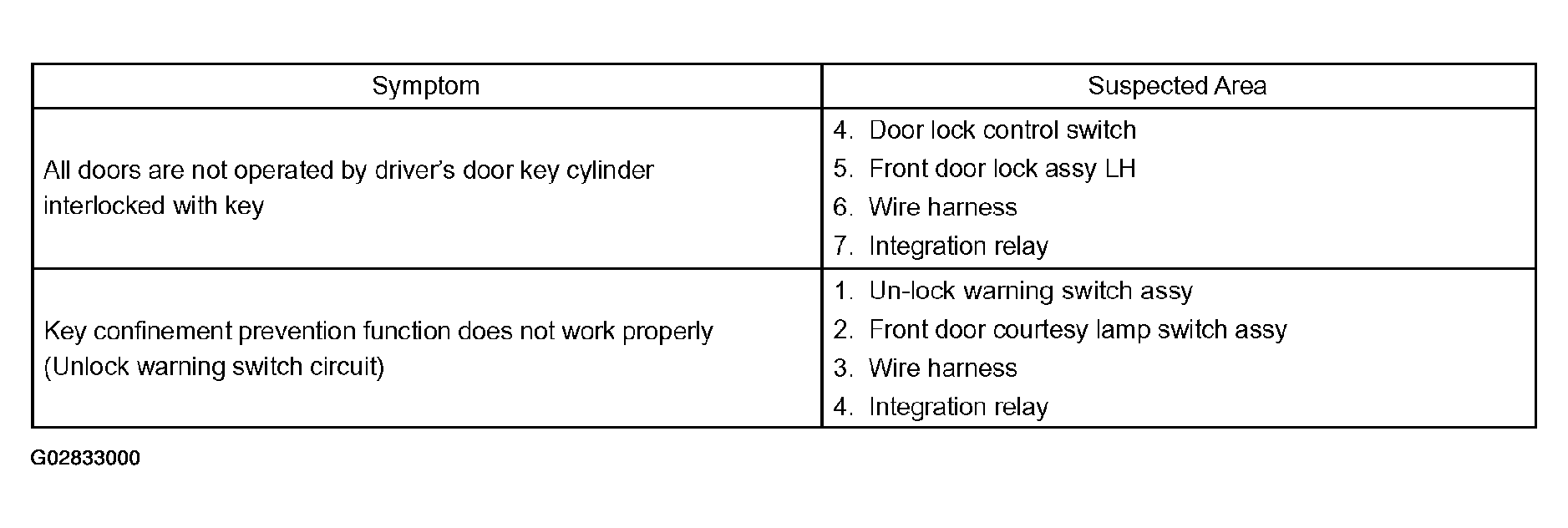

Fig 1: Problem Symptoms
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
