Windshield Glass: Components

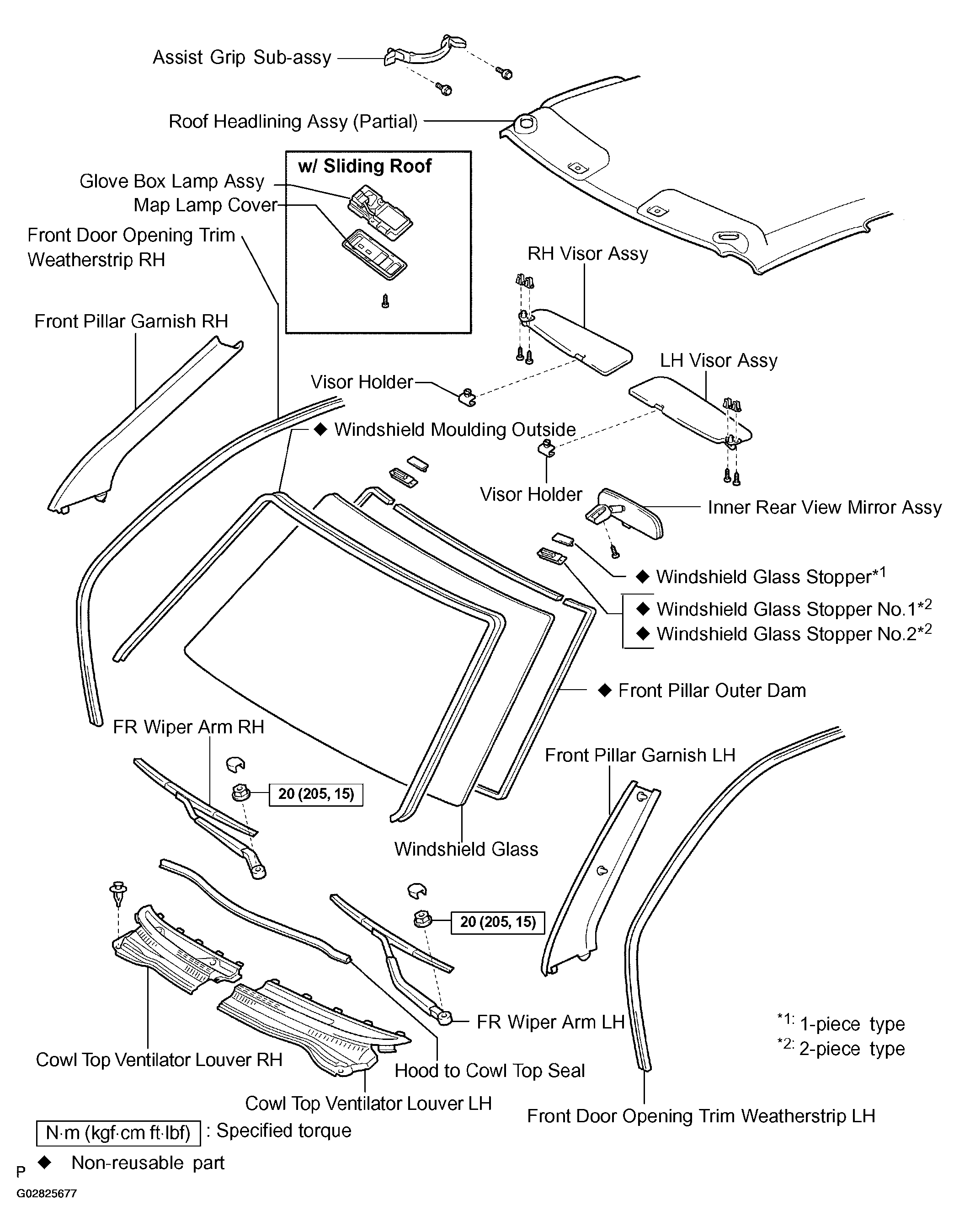

Fig 1: Locating Windshield Glass Components
G02825677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
