Power Steering: Components

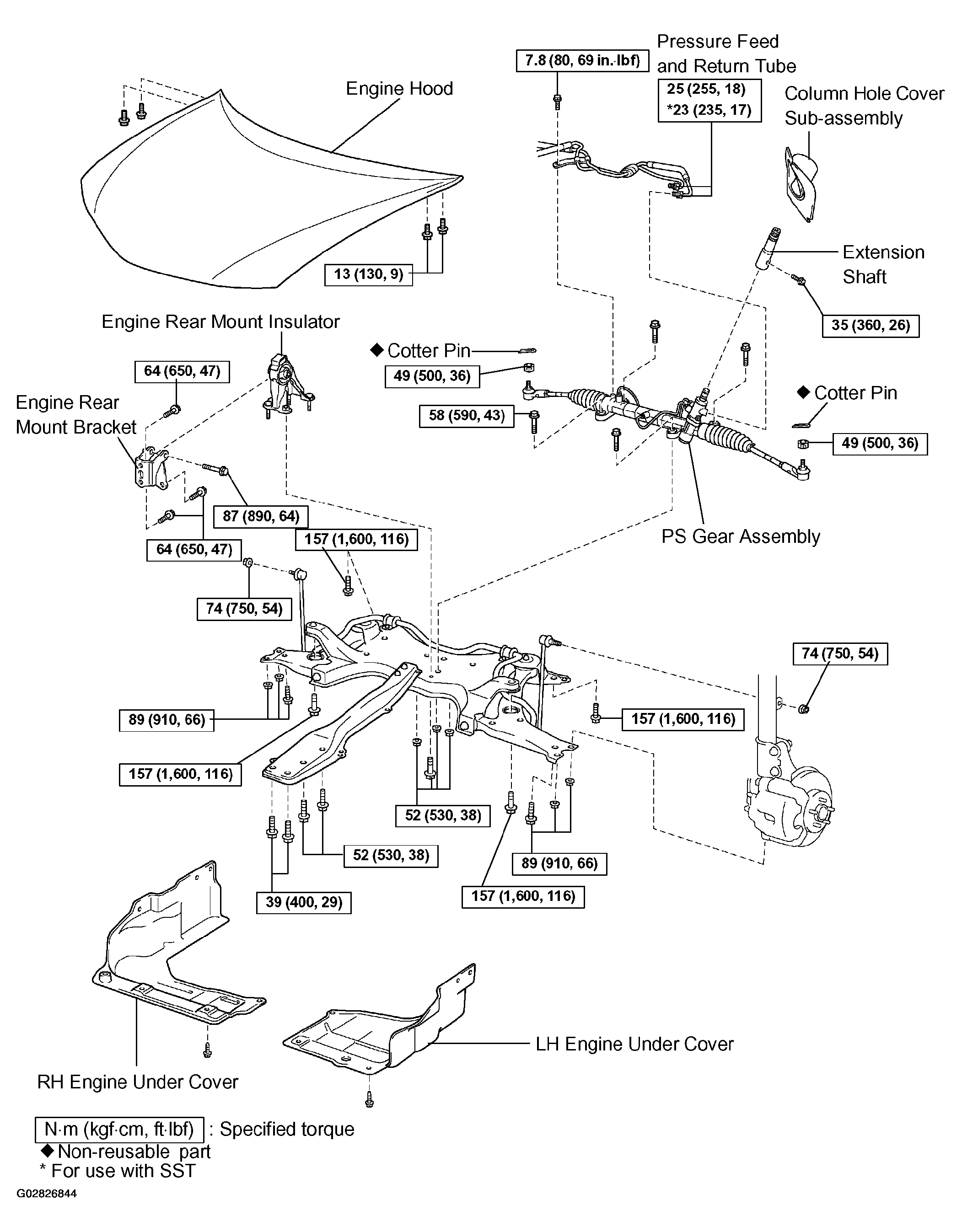

Fig 1: Exploded View Of Pinion Power Steering Gear Assembly (1 Of 3)
G02826844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

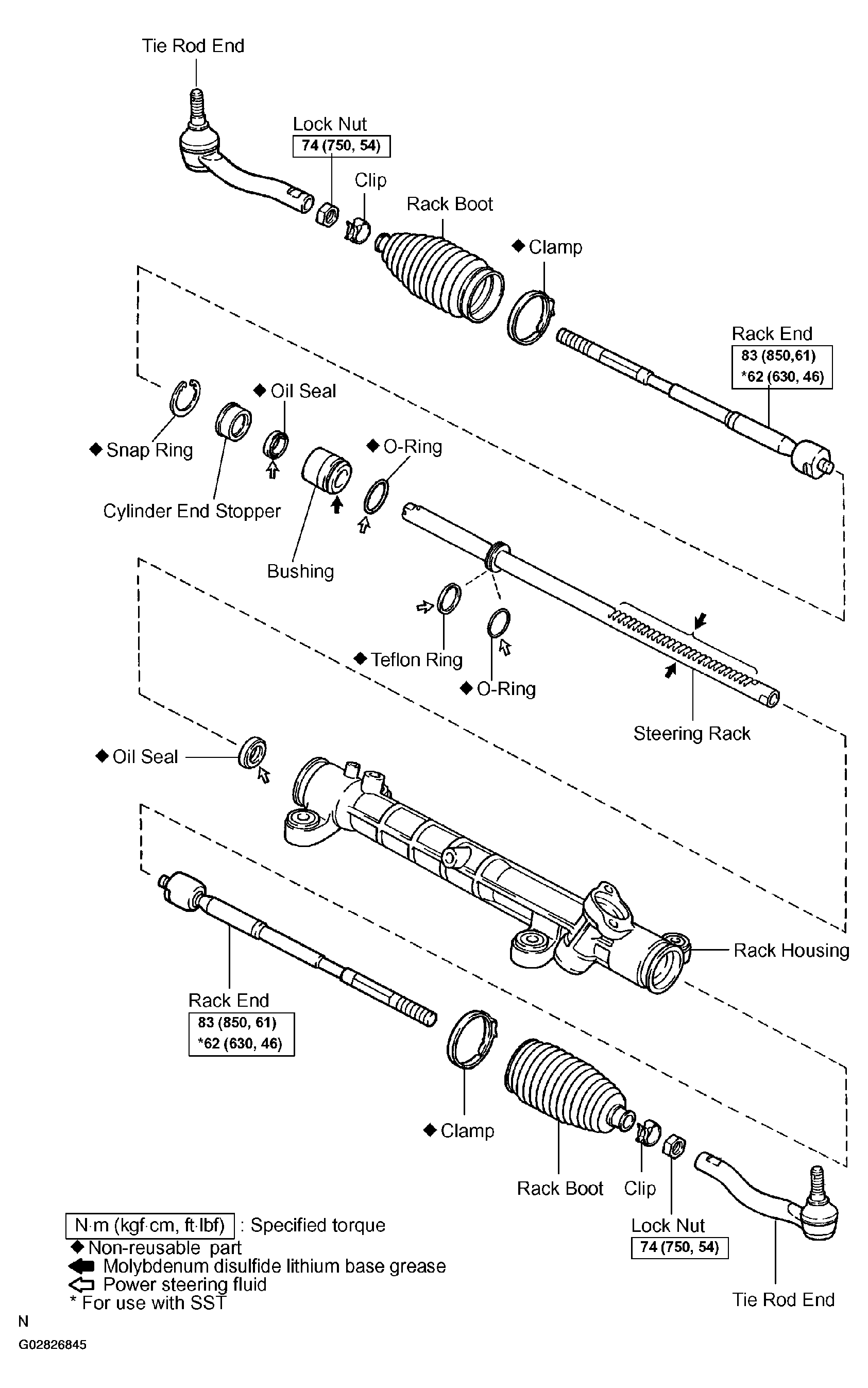

Fig 2: Exploded View Of Pinion Power Steering Gear Assembly (2 Of 3)
G02826845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

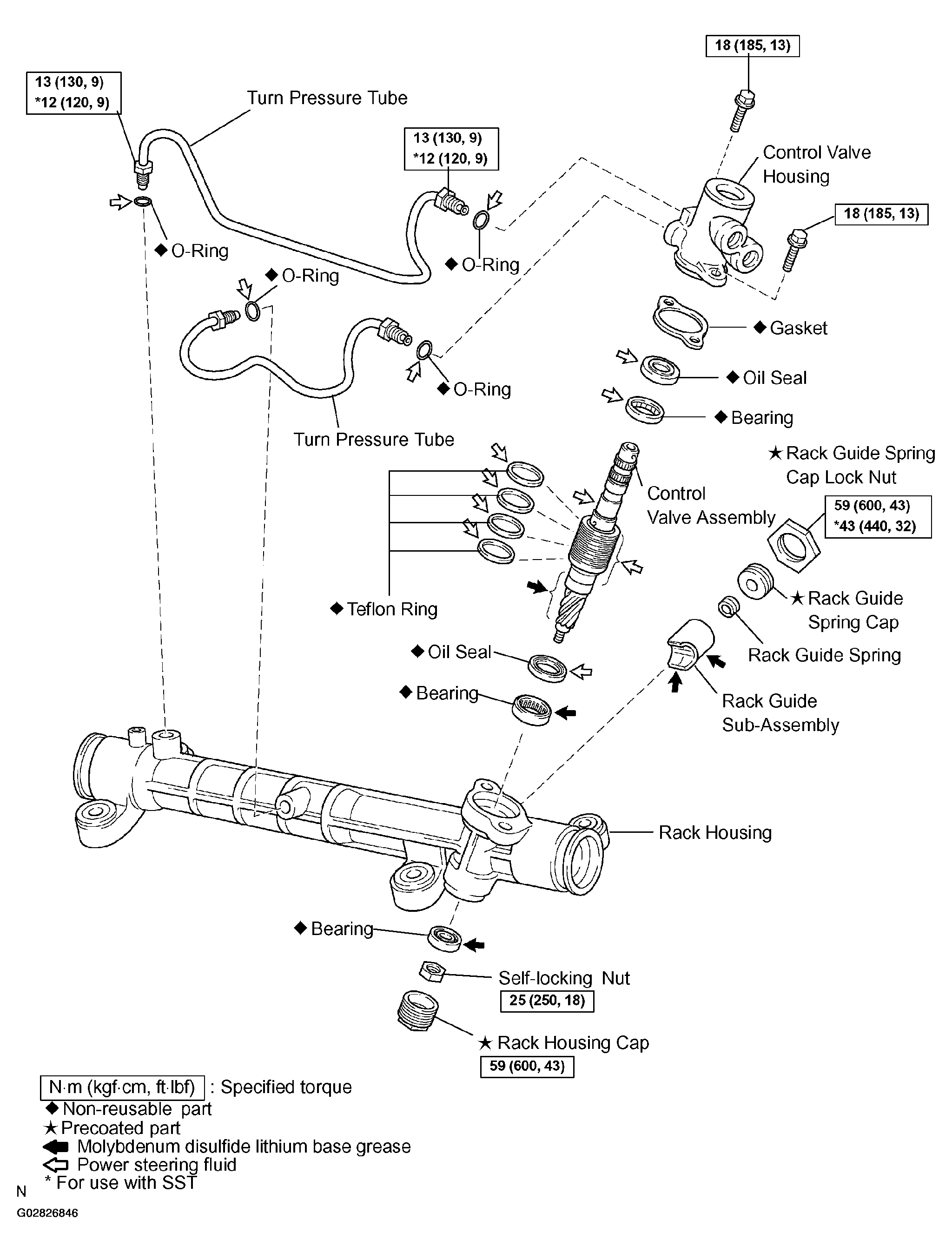

Fig 3: Exploded View Of Pinion Power Steering Gear Assembly (3 Of 3)
G02826846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
