Problem Symptoms Table

HINT:

Use the table below to help you find the cause of the problem. The numbers indicate the probability of the cause of the problem. Check each part in the order shown. If necessary, repair or replace these parts.

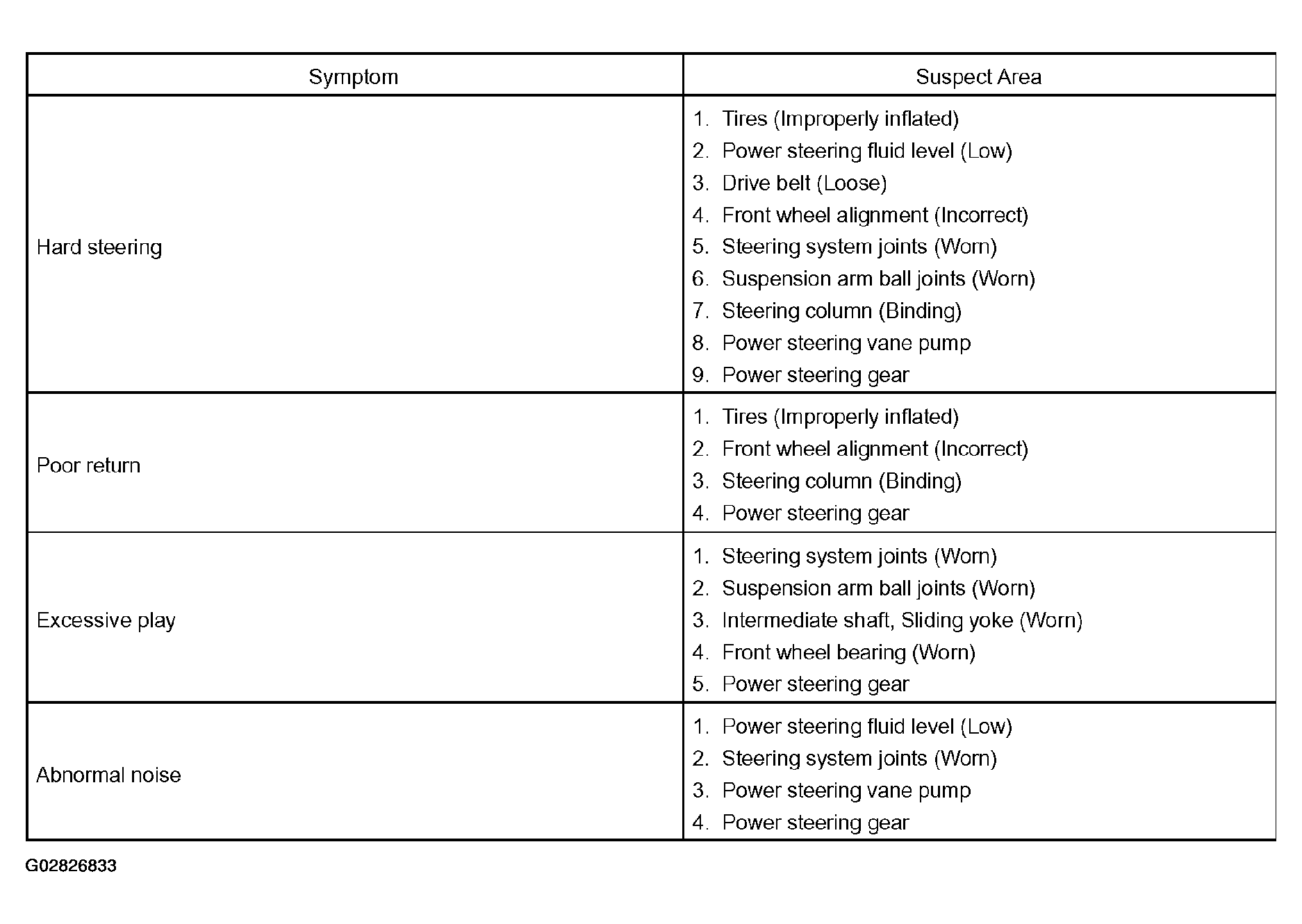

Fig 1: Problem Symptom Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
