Power Window Control System: Inspection
- 2 door models:

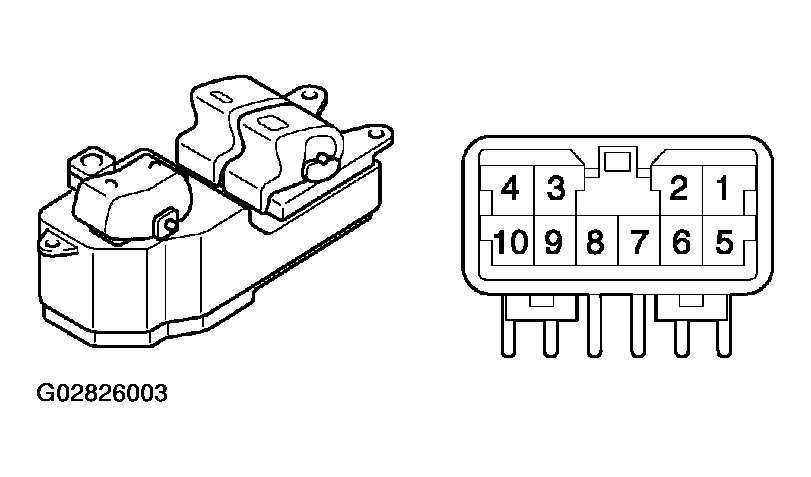

INSPECT POWER WINDOW MASTER SWITCH CONTINUITY
Driver's switch:
POWER WINDOW MASTER SWITCH CONTINUITYSwitch position Tester connection Specified condition UP 1 - 4, 3 - 9 Continuity OFF 1 - 3, 1 - 4 Continuity DOWN 1 - 3, 4 - 9 Continuity Passenger's switch (Window unlock):
PASSENGER'S WINDOW SWITCH CONTINUITYSwitch position Tester connection Specified condition UP 1 - 10, 8 - 9 Continuity OFF 1 - 8, 1 - 10 Continuity DOWN 1 - 8, 9 - 10 Continuity Passenger's switch (Window lock):
PASSENGER'S WINDOW SWITCH CONTINUITYSwitch position Tester connection Specified condition UP 8 - 9 Continuity OFF 8 - 10 Continuity DOWN 9 - 10 Continuity If continuity is not as specified, replace the switch.
- 4 door models:

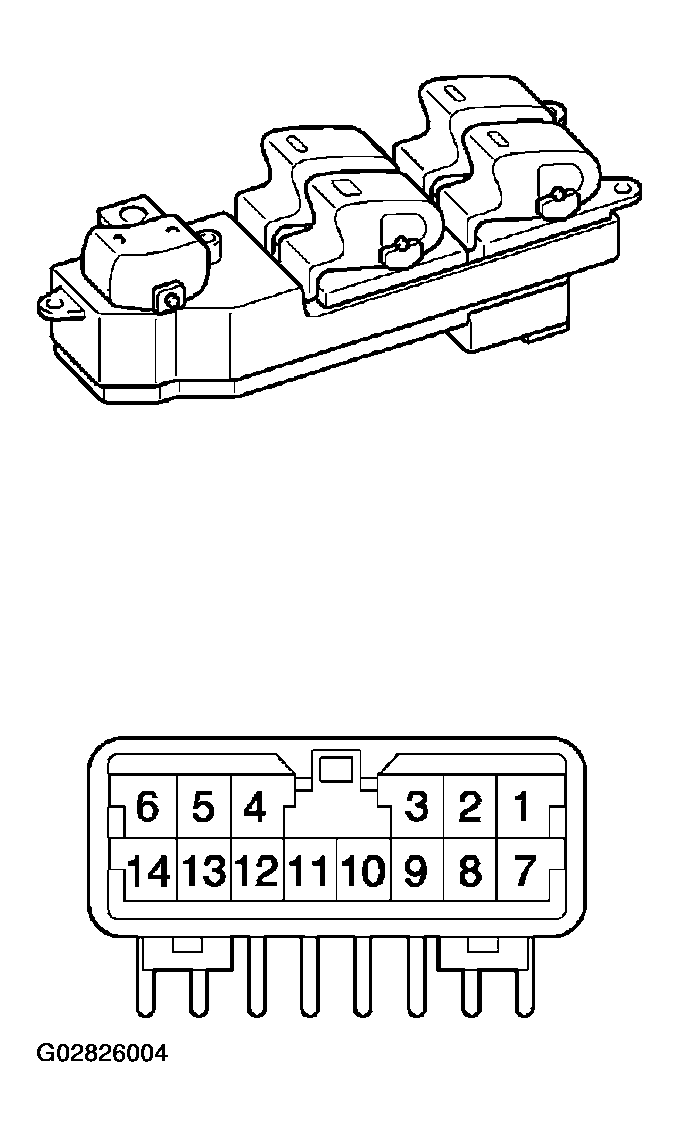

INSPECT POWER WINDOW MASTER SWITCH CONTINUITY
Front driver's switch:
FRONT DRIVER'S SWITCH CONTINUITYSwitch position Tester connection Specified condition UP 1 - 10, 1 - 11, 3 - 5, 4 - 5 Continuity OFF 1 - 3, 1 - 4, 3 - 5, 4 - 5 Continuity DOWN 5 - 10, 5 - 11, 1 - 3, 1 - 4 Continuity Front passenger's switch (Window unlock):
FRONT PASSENGER'S SWITCH CONTINUITYSwitch position Tester connection Specified condition UP 10 - 14, 11 - 14, 3 - 6, 4 - 6 Continuity OFF 3 - 14, 4 - 14, 3 - 6, 4 - 6 Continuity DOWN 6 - 10, 6 - 11, 3 - 14, 4 - 14 Continuity Front passenger's switch (Window lock):
FRONT PASSENGER'S SWITCH CONTINUITYSwitch position Tester connection Specified condition UP 10 - 14, 11 - 14 Continuity OFF 6 - 14 Continuity DOWN 6 - 10, 6 - 11 Continuity Rear left switch (Window unlock):
REAR LEFT SWITCH CONTINUITYSwitch position Tester connection Specified condition UP 9 - 10, 9 - 11 3 - 12, 4 - 12 Continuity OFF 3 - 9, 4 - 9 3 - 12, 4 - 12 Continuity DOWN 10 - 12, 11 - 12 3 - 9, 4 - 9 Continuity Rear left switch (Window lock):
REAR SWITCH CONTINUITYSwitch position Tester connection Specified condition UP 9 - 10, 9 - 11 Continuity OFF 9 - 12 Continuity DOWN 10 - 12, 11 - 12 Continuity Rear right switch (Window unlock):
REAR RIGHT SWITCH CONTINUITYSwitch position Tester connection Specified condition UP 8 - 10, 8 - 11 3 - 13, 4 - 13 Continuity OFF 3 - 8, 4 - 8 3 - 13, 4 - 13 Continuity DOWN 10 - 13, 11 - 13 3 - 8, 4 - 8 Continuity Rear right switch (Window lock):
REAR RIGHT SWITCH CONTINUITYSwitch position Tester connection Specified condition UP 8 - 10, 8 - 10 Continuity OFF 8 - 13 Continuity DOWN 10 - 13, 11 - 13 Continuity If continuity is not as specified, replace the master switch.
- 2 door models:

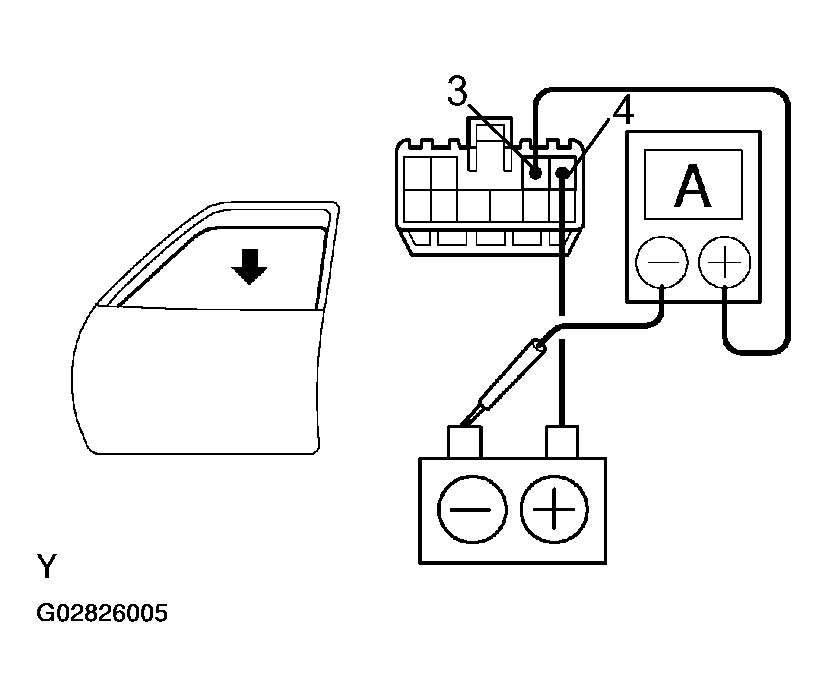

INSPECT ONE TOUCH POWER WINDOW SYSTEM (Using an ammeter)
- Disconnect the connector from the master switch.

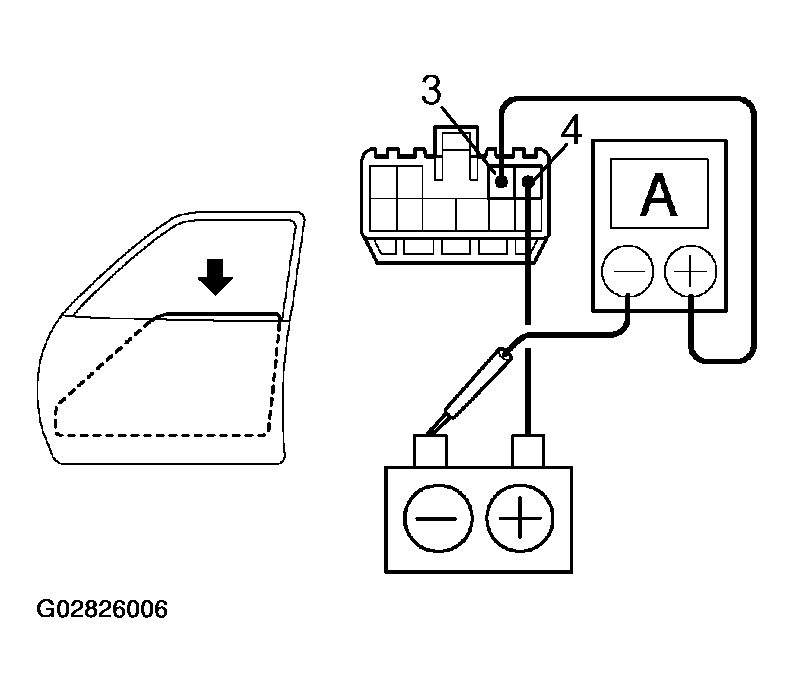

- Connect the positive (+) lead from the ammeter to terminal 3 on the wire harness side connector and the negative (-) lead to the negative (-) terminal of the battery.
- Connect the positive (+) lead from the battery to terminal 4 on the wire harness side connector.
- As the window goes down, check that the current is approximately 7 A.
- Check that the current increases up to approximately 14.5 A or more when the window stops going down.
HINT:
The circuit breaker opens for 7 - 13 seconds after the window stops going down, so that check must be made before the circuit breaker operates.
If operation is not as specified, replace the master switch.
- 2 door models:
INSPECT ONE TOUCH POWER WINDOW SYSTEM (Using an ammeter with a current - measuring probe)
- Remove the master switch with connector connected.

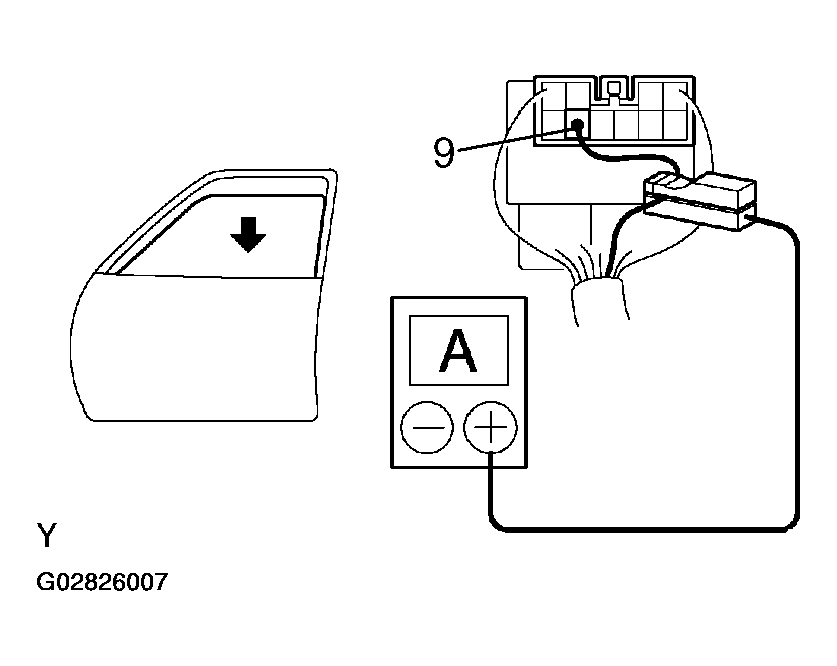

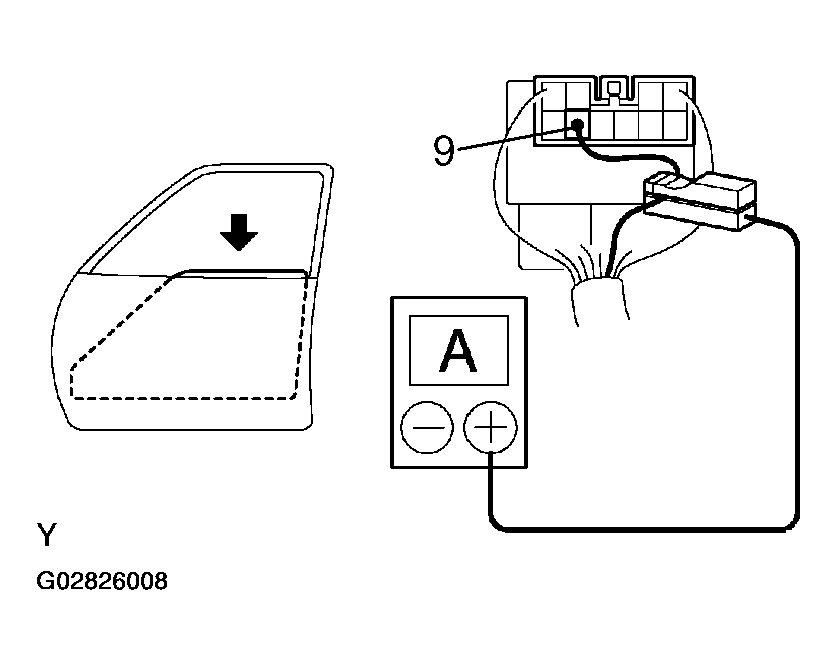

- Attach a current - measuring probe to terminal 9 of the wire harness.
- Turn the ignition switch ON, and set the power window switch in the down position.
- As the window goes down, check that the current is approximately 7 A.
- Check that the current increases up to approximately 14.5 A or more when the window stops going down.
HINT:
The circuit breaker opens for 7 - 13 seconds after the window stops going down, so that check must be made before the circuit breaker operates.
If operation is not as specified, replace the master switch.
- 4 door models:

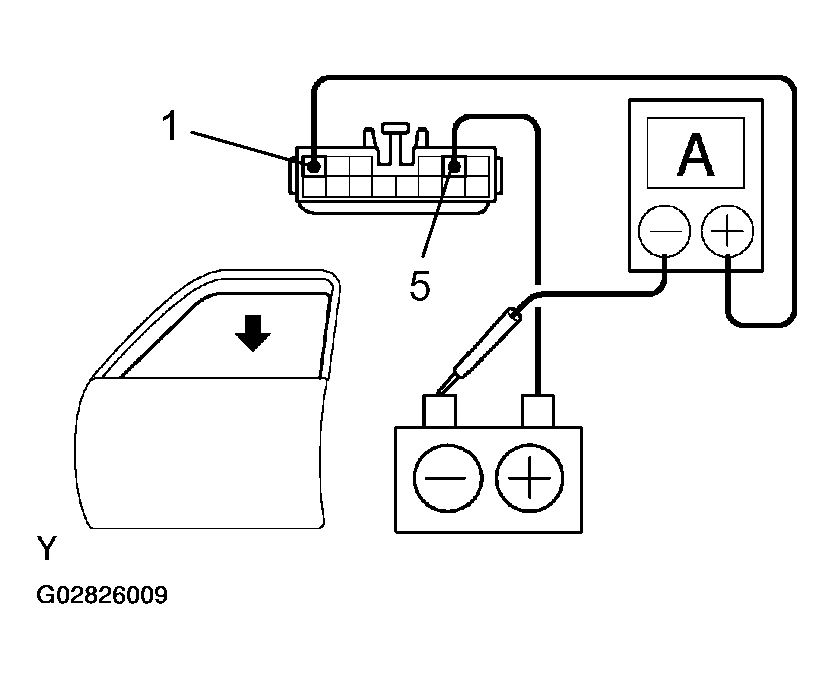

INSPECT ONE TOUCH POWER WINDOW SYSTEM (Using an ammeter)
- Disconnect the connector from the master switch.

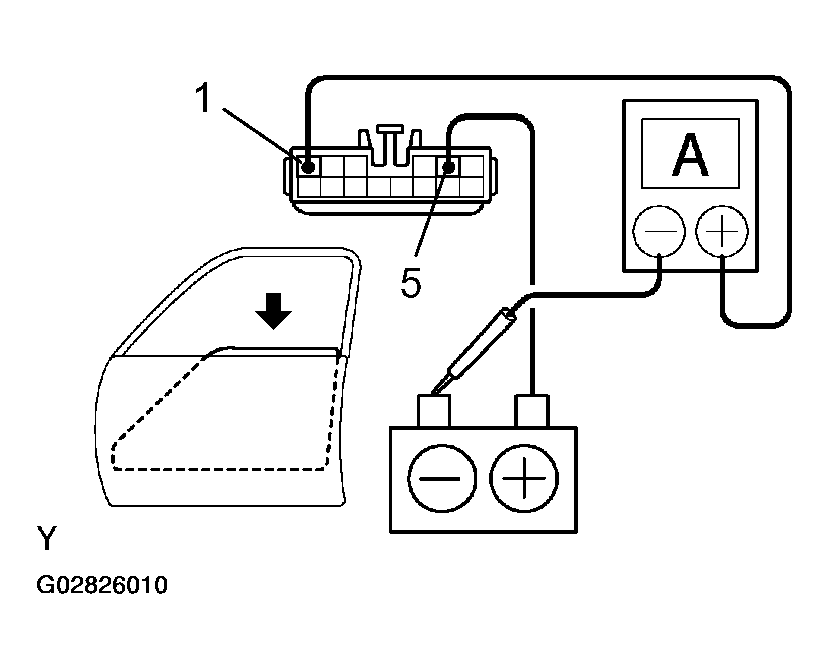

- Connect the positive (+) lead from the ammeter to terminal 1 on the wire harness side connector and the negative (-) lead to the negative terminal of the battery.
- Connect the positive (+) lead from the battery to terminal 5 on the wire harness side connector.
- As the window goes down, check that the current flow is approximately 7 A.
- Check that the current increases up to approximately 14.5 A or more when the window stops going down.
HINT:
The circuit breaker opens some 4 - 40 seconds after the window stops going down, so that check must be made before the circuit breaker operates.
If the operation is as specified, replace the master switch.
- 4 door models:

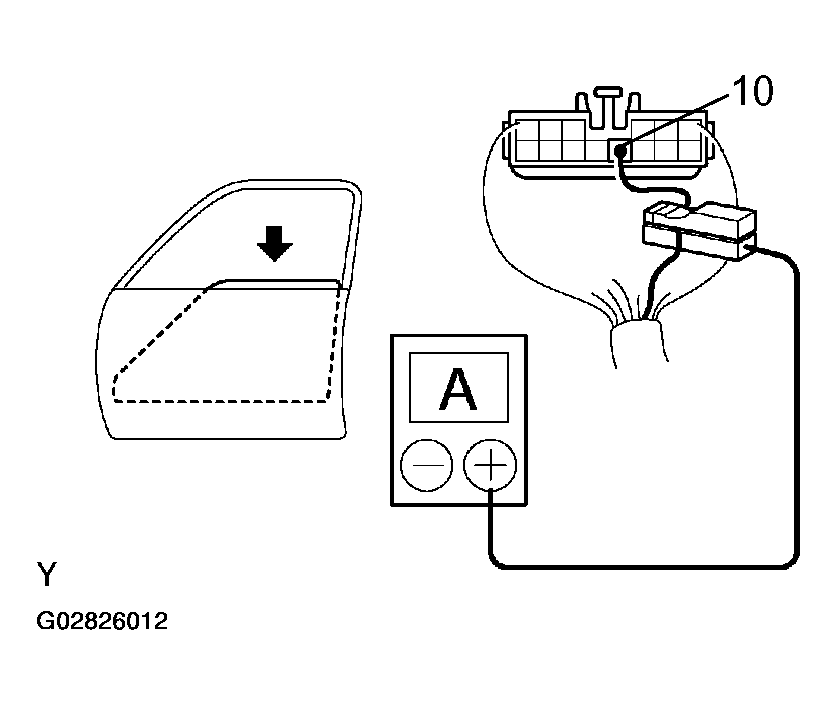

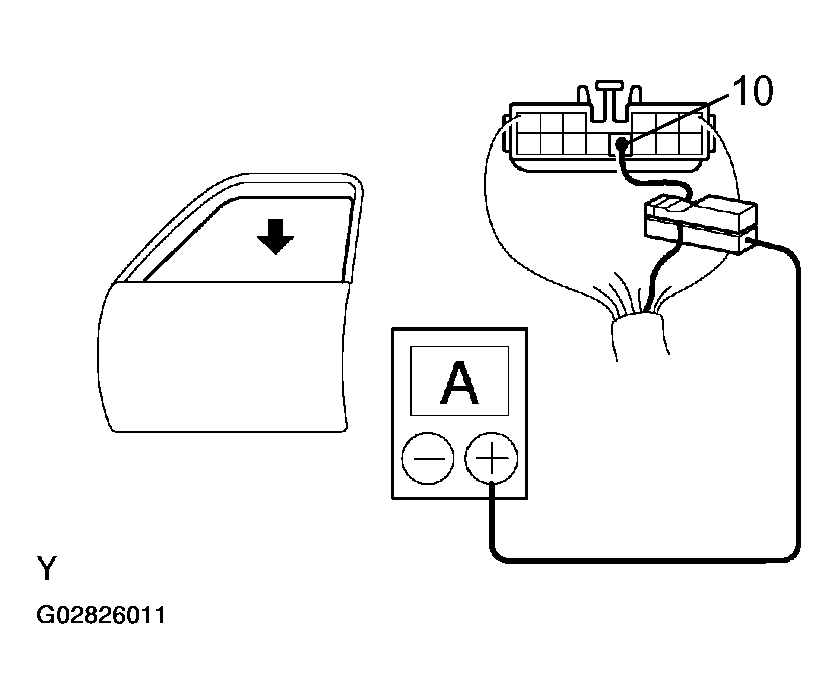

INSPECT ONE TOUCH POWER WINDOW SYSTEM (Using an ammeter with a current - measuring probe)
- Remove the master switch with connector connected.
- Attach a current - measuring probe to terminal 10 of the wire harness.
- Turn the ignition switch ON and set the power window switch in the down position.
- As the window goes down, check that the current flow is approximately 7 A.
- Check that the current increases up to approximately 14.5 A or more when the window stops going down.
HINT:
The circuit breaker opens for 4 - 40 seconds after the window stops going down, so that check must be made before the circuit breaker operates.
If operation is as specified, replace the master switch.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

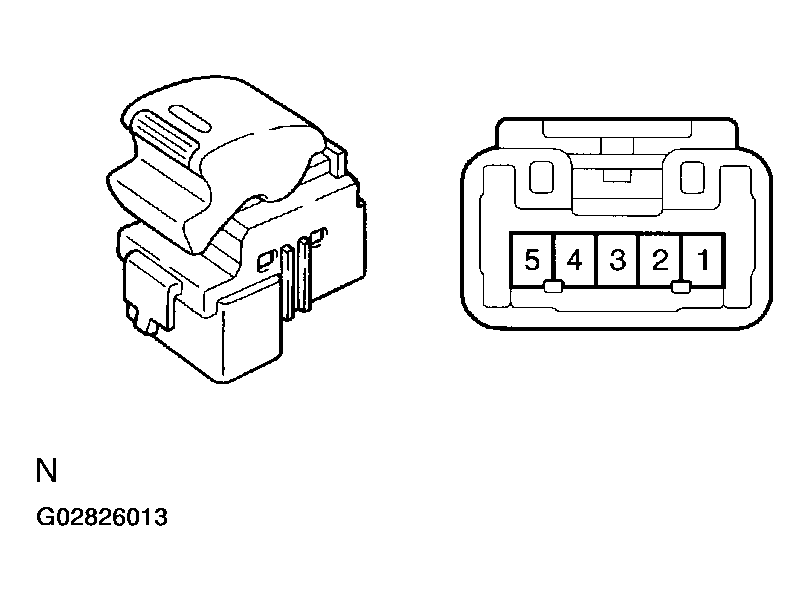

- INSPECT PASSENGER'S POWER WINDOW SWITCH CONTINUITY PASSENGER'S POWER WINDOW SWITCH CONTINUITY

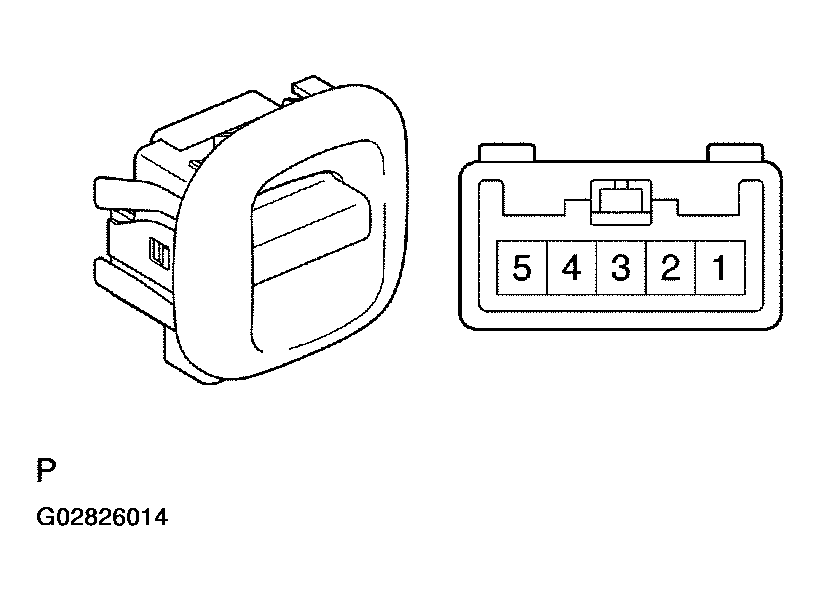

Switch position Tester connection Specified condition UP 1 - 2, 3 - 4 Continuity OFF 1 - 2, 3 - 5 Continuity DOWN 1 - 4, 3 - 5 Continuity If continuity is not as specified, replace the switch.
- 4 door models:
INSPECT REAR DOOR POWER WINDOW SWITCH CONTINUITY
REAR DOOR POWER WINDOW SWITCH CONTINUITYSwitch position Tester connection Specified condition UP 1 - 2, 3 - 4 Continuity OFF 1 - 2, 4 - 5 Continuity DOWN 2 - 3, 4 - 5 Continuity If continuity is not as specified, replace the switch.

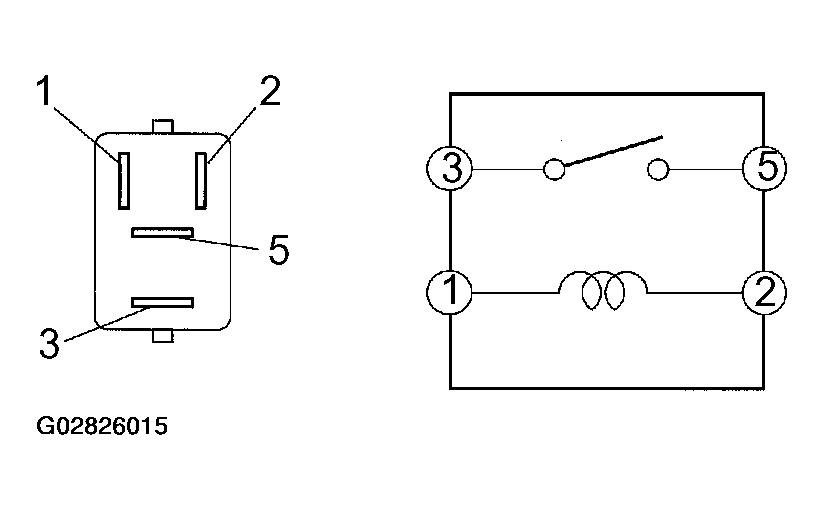

- INSPECT POWER MAIN RELAY CONTINUITY POWER MAIN RELAY CONTINUITY
Condition Tester connection Specified condition Constant 1 - 2 Continuity Apply B + between terminals 1 and 2 3 - 5 Continuity If continuity is not as specified, replace the switch.
- Front left side door:
INSPECT POWER WINDOW MOTOR OPERATION

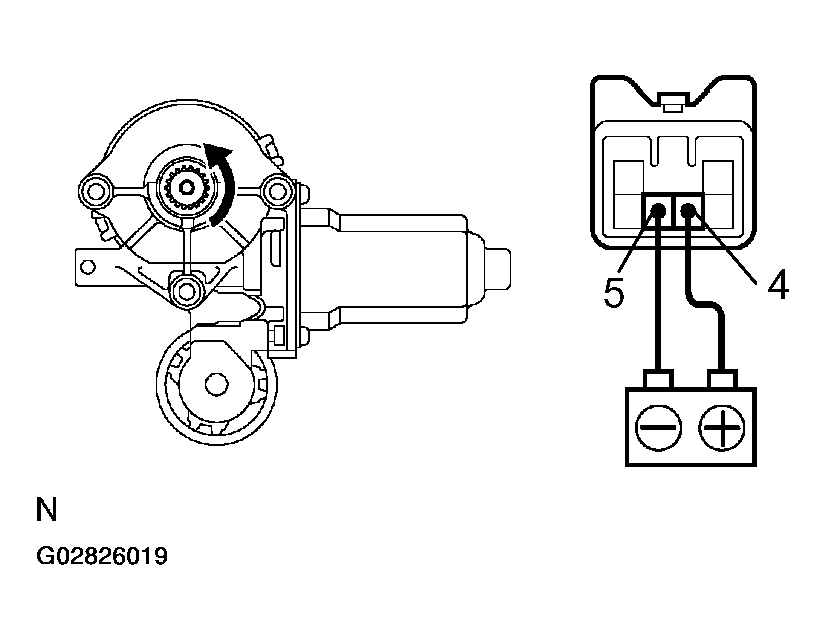

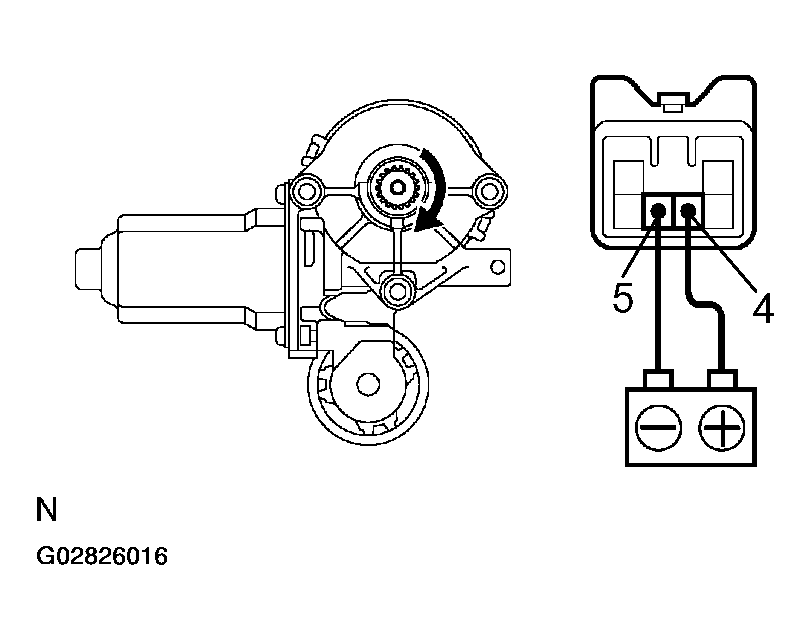

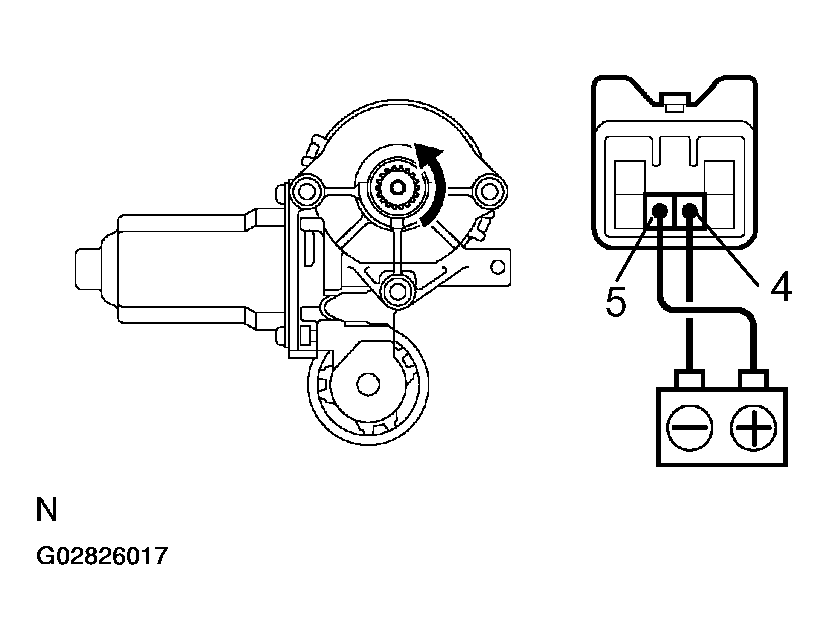

- Connect the positive (+) lead from the battery to terminal 4 and the negative (-) lead to terminal 5, and check that the motor turns clockwise.

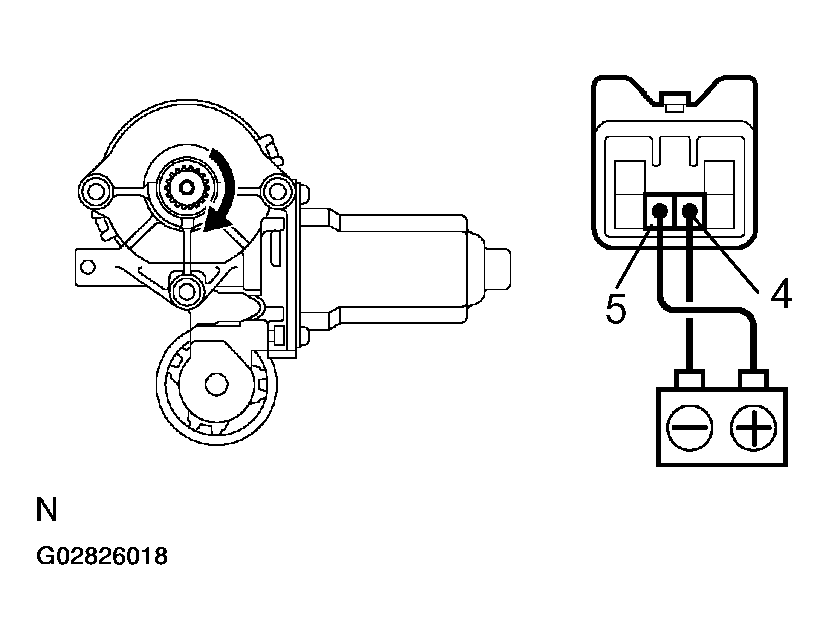

- Reverse the polarity, check that the motor turns counterclockwise.
If operation is not as specified, replace the motor.
- Front right side door:
INSPECT POWER WINDOW MOTOR OPERATION
- Connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 4, and check that the motor turns clockwise.
- Reverse the polarity, check that the motor turns counterclockwise.
If operation is not as specified, replace the motor.
- Rear left side door:
INSPECT POWER WINDOW MOTOR OPERATION

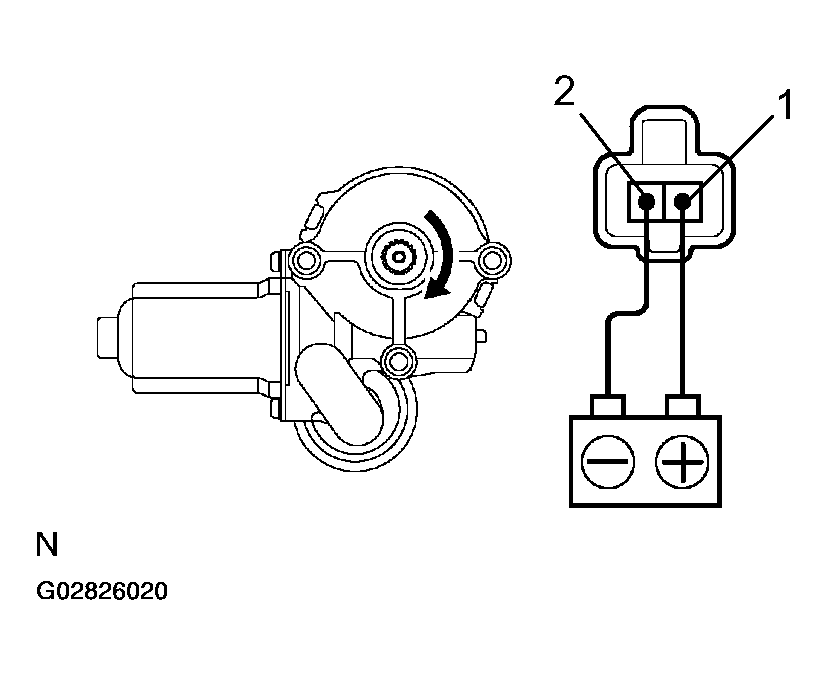

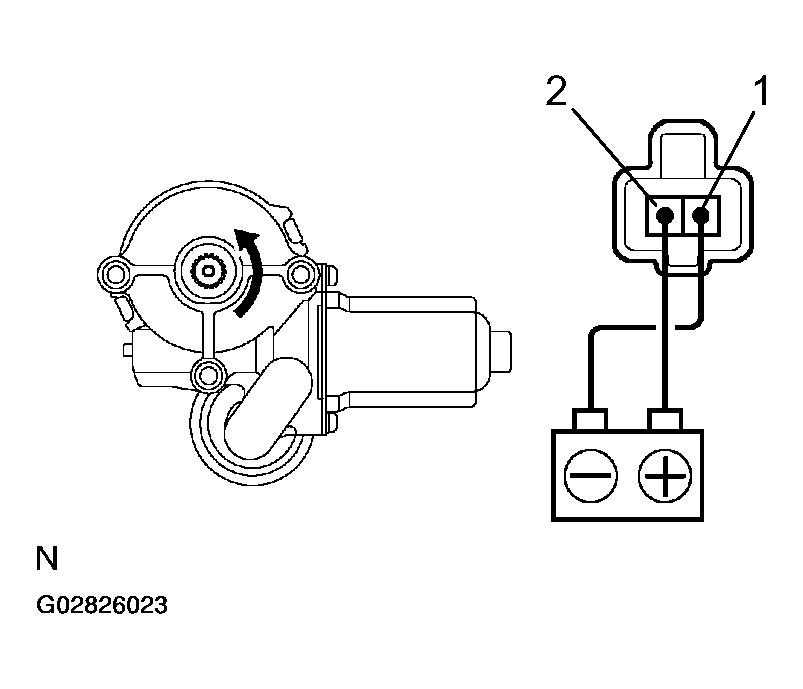

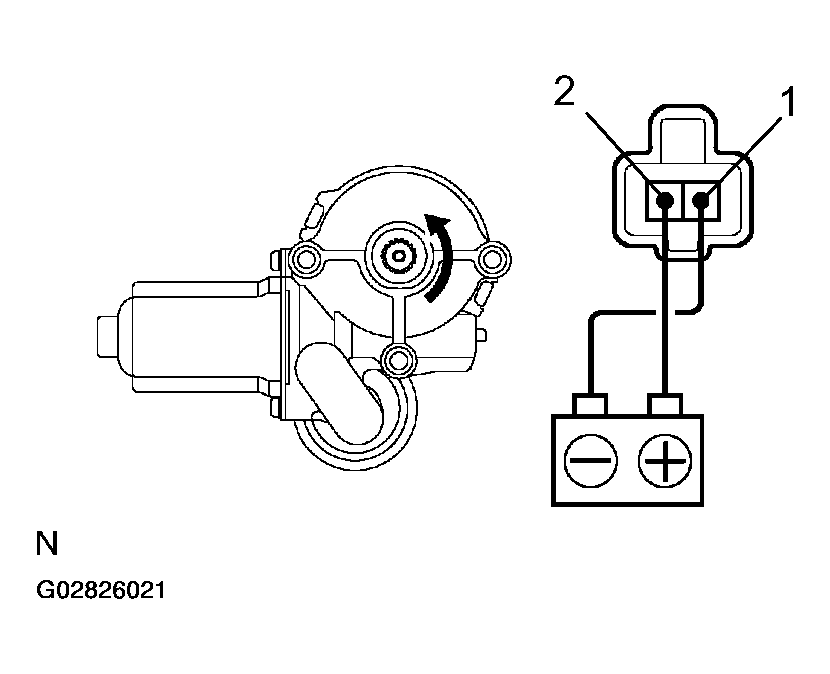

- Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the motor turns clockwise.
- Reverse the polarity, check that the motor turns counter-clockwise.
If operation is not as specified, replace the motor.
- Rear right side door:
INSPECT POWER WINDOW MOTOR OPERATION

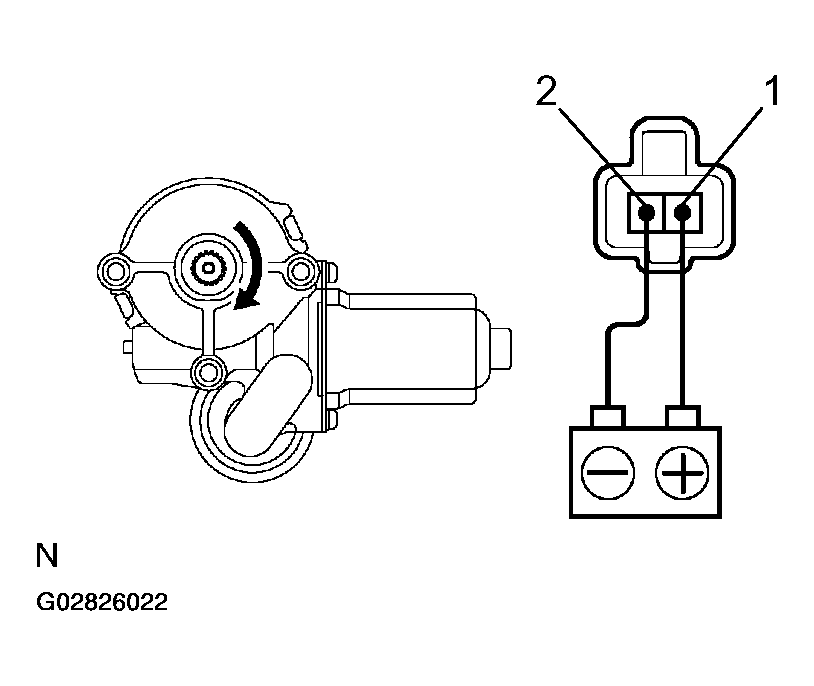

- Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the motor turns clockwise.
- Reverse the polarity, check that the motor turns counter-clockwise.
If operation is not as specified, replace the motor.
- Front Door:
INSPECT POWER WINDOW MOTOR PTC THERMISTOR OPERATION
- Disconnect the connector from the Driver door Window motor.

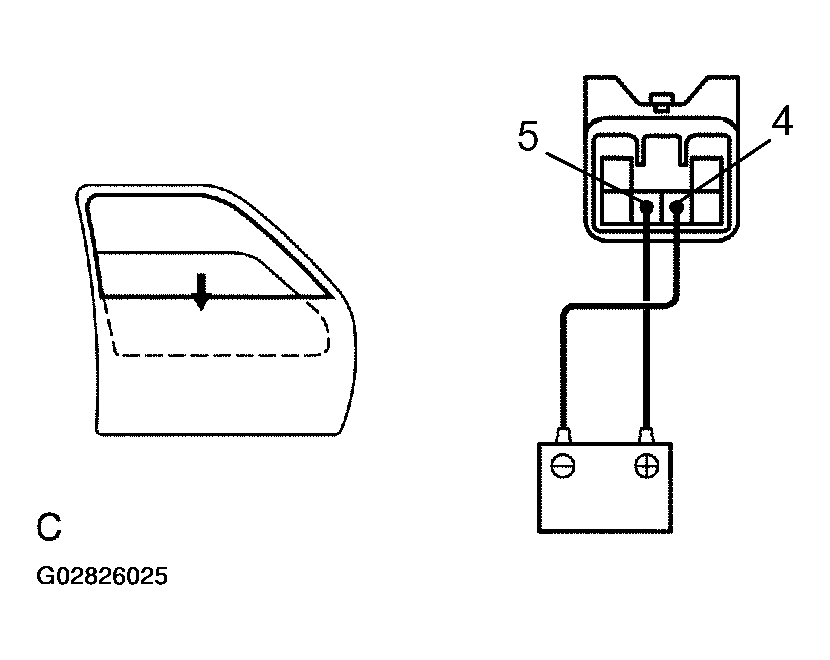

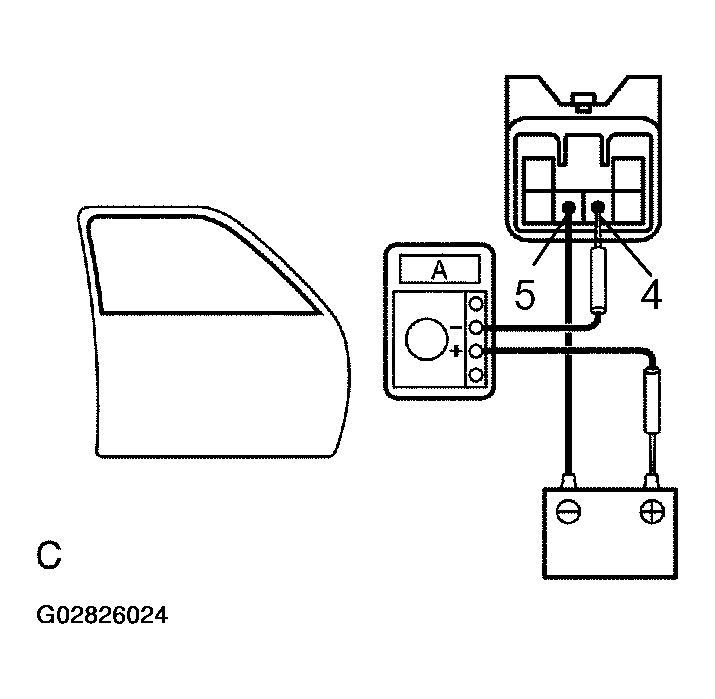

- Connect the positive (+) lead from the ammeter to terminal 5 on the wire harness side connector and the negative (-) lead to negative terminal of the battery.
- Connect the positive (+) lead from the battery to terminal 4 on the wire harness side connector, and raise the window to the fully position.
- Continue to apply voltage, and check that the current changes to less than 1 A within 4 to 90 seconds.
- Disconnect the leads from the terminals.
- Approximately 60 seconds later, connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 4, and check that the window begins to descend.
If operation is not as specified, replace the motor.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Rear LH door:
INSPECT POWER WINDOW MOTOR PTC THERMISTOR OPERATION
- Disconnect the connector from the power window motor.

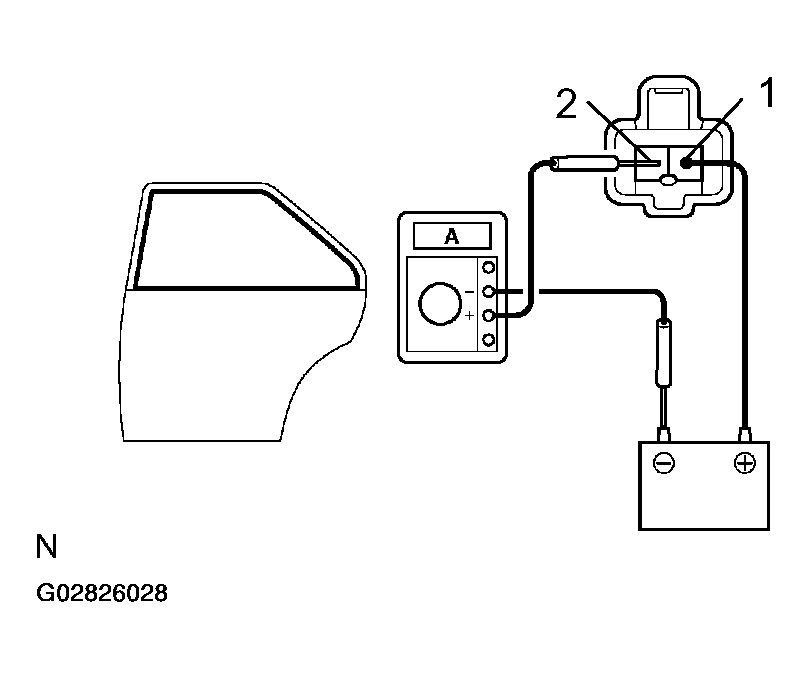

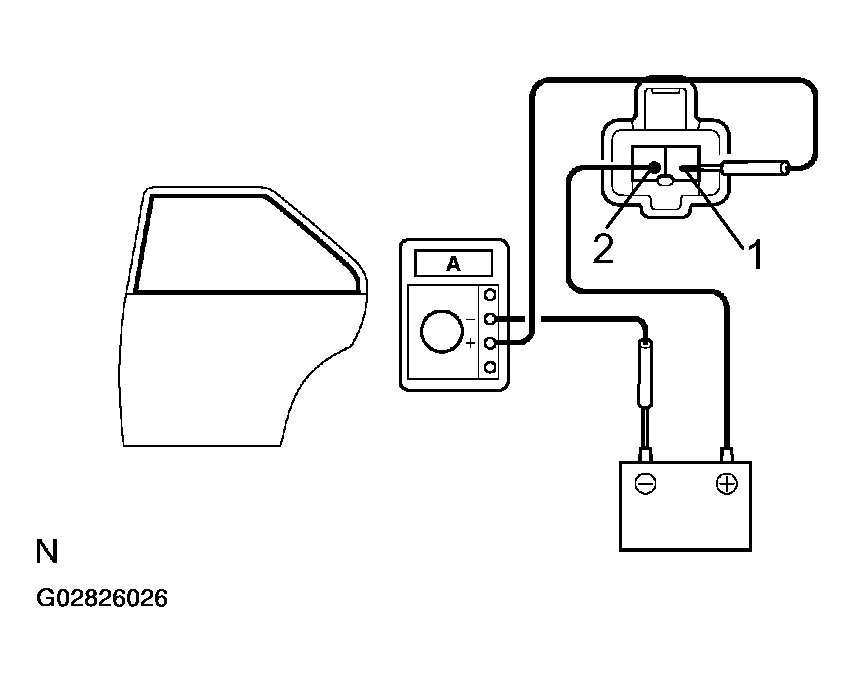

- Connect the positive (+) lead from the ammeter to terminal 1 on the wire harness side connector and the negative (-) lead to negative terminal of the battery.
- Connect the positive (+) lead from the battery to terminal 2 on the wire harness side connector, and raise the window to the fully position.
- Continue to apply voltage and check that the current changes to less than 1 A within 4 to 90 seconds.
- Disconnect the leads from the terminals.

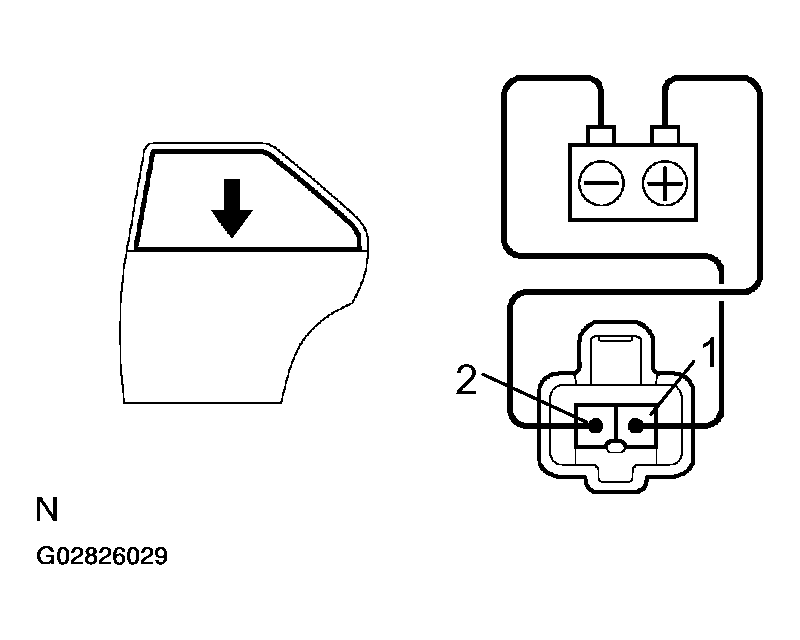

- Approximately 60 seconds later, connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the window begins to descend.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If operation is not as specified, replace the motor.
- Rear RH Door:
INSPECT POWER WINDOW MOTOR PTC THERMISTOR OPERATION
- Disconnect the connector from the power window motor.
- Connect the positive (+) lead from the ammeter to terminal 2 on the wire harness side connector and the negative (-) lead to negative terminal of the battery.
- Connect the positive (+) lead from the battery to terminal 1 on the wire harness side connector, and raise the window to the fully position.
- Continue to apply voltage and check that the current changes to less than 1 A within 4 to 90 seconds.
- Disconnect the leads from the terminals.

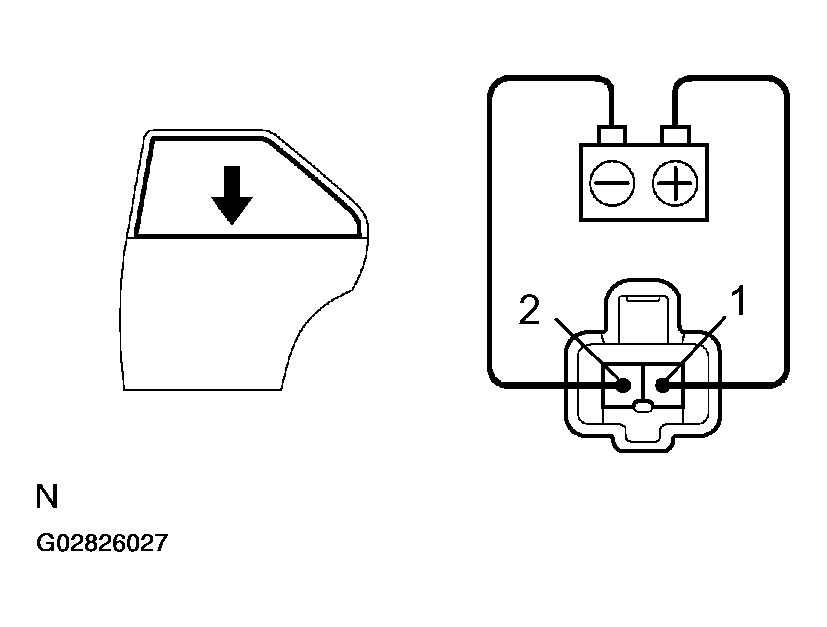

- Approximately 60 seconds later, connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check that the window begins to descend.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
