Power Window Control System: Location

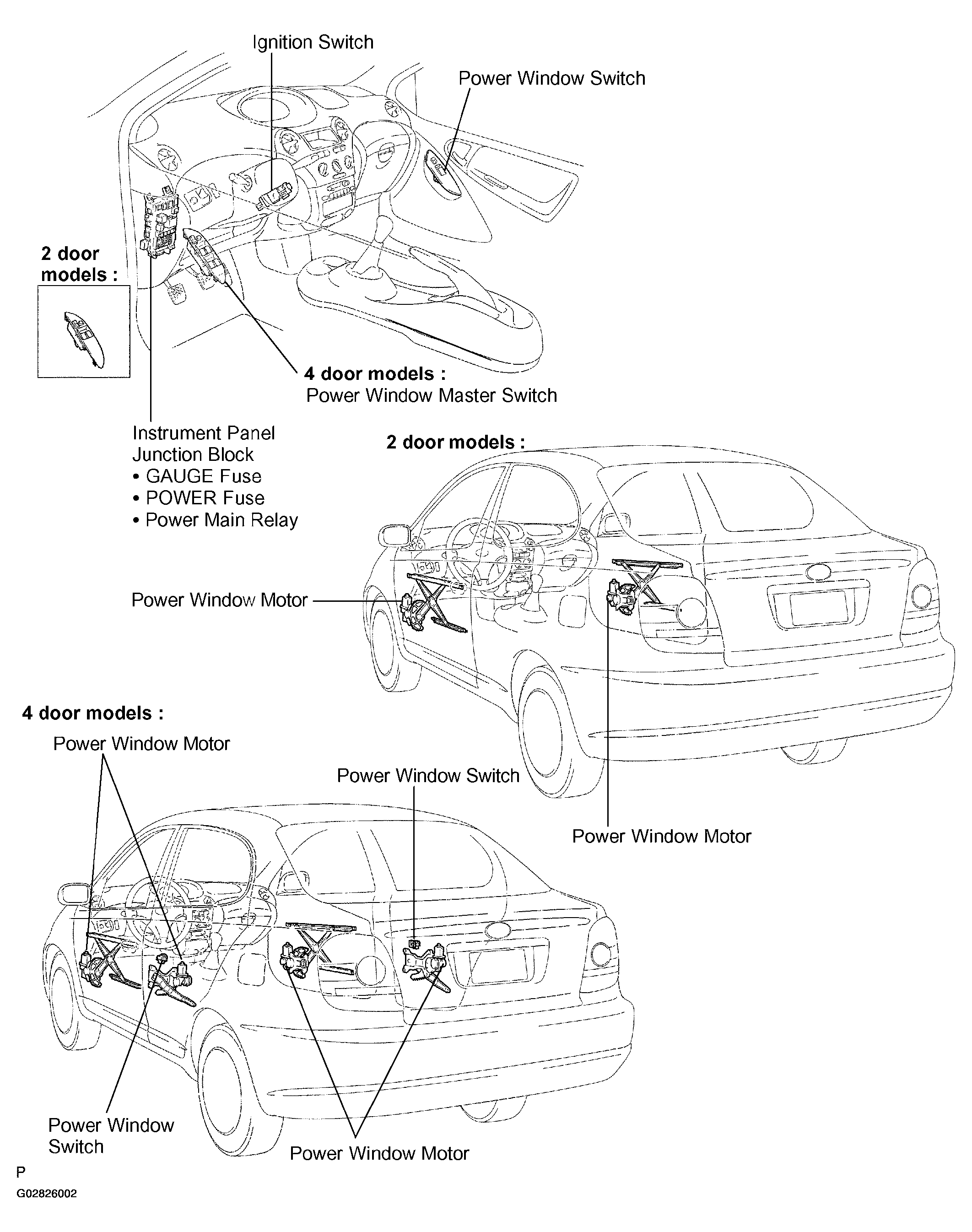

Fig 1: Power Window Control System Component Location
G02826002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
