Circuit Description & Possible Causes

For circuit description and possible causes, see Fig 1.

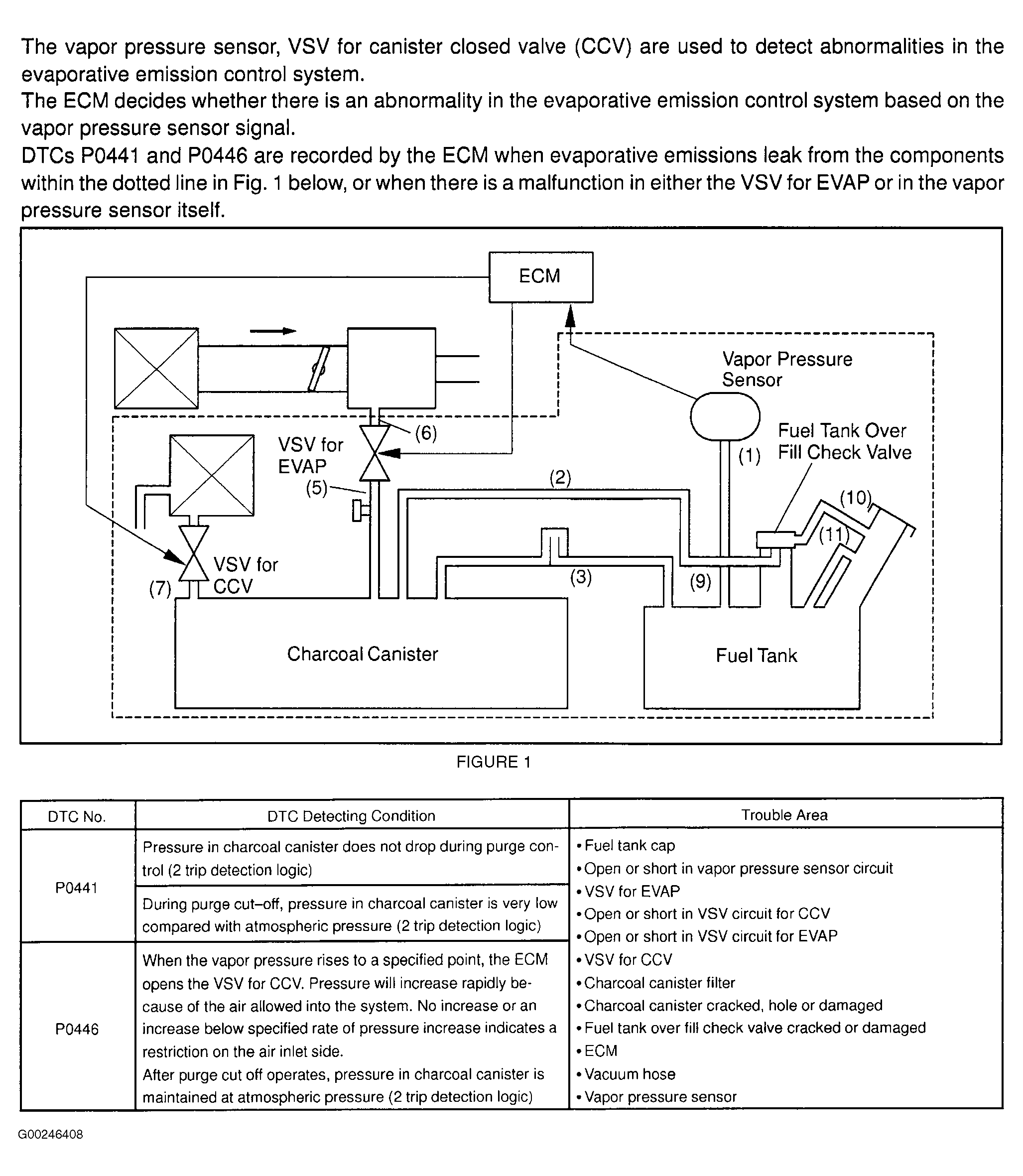

Fig 1: DTCs P0441 & P0446 Circuit Description
G00246408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
