Remote Operation Via Master Switch Is Impossible In The Other Door (Operation Via Each Door Switch Is Possible): Wiring Diagram

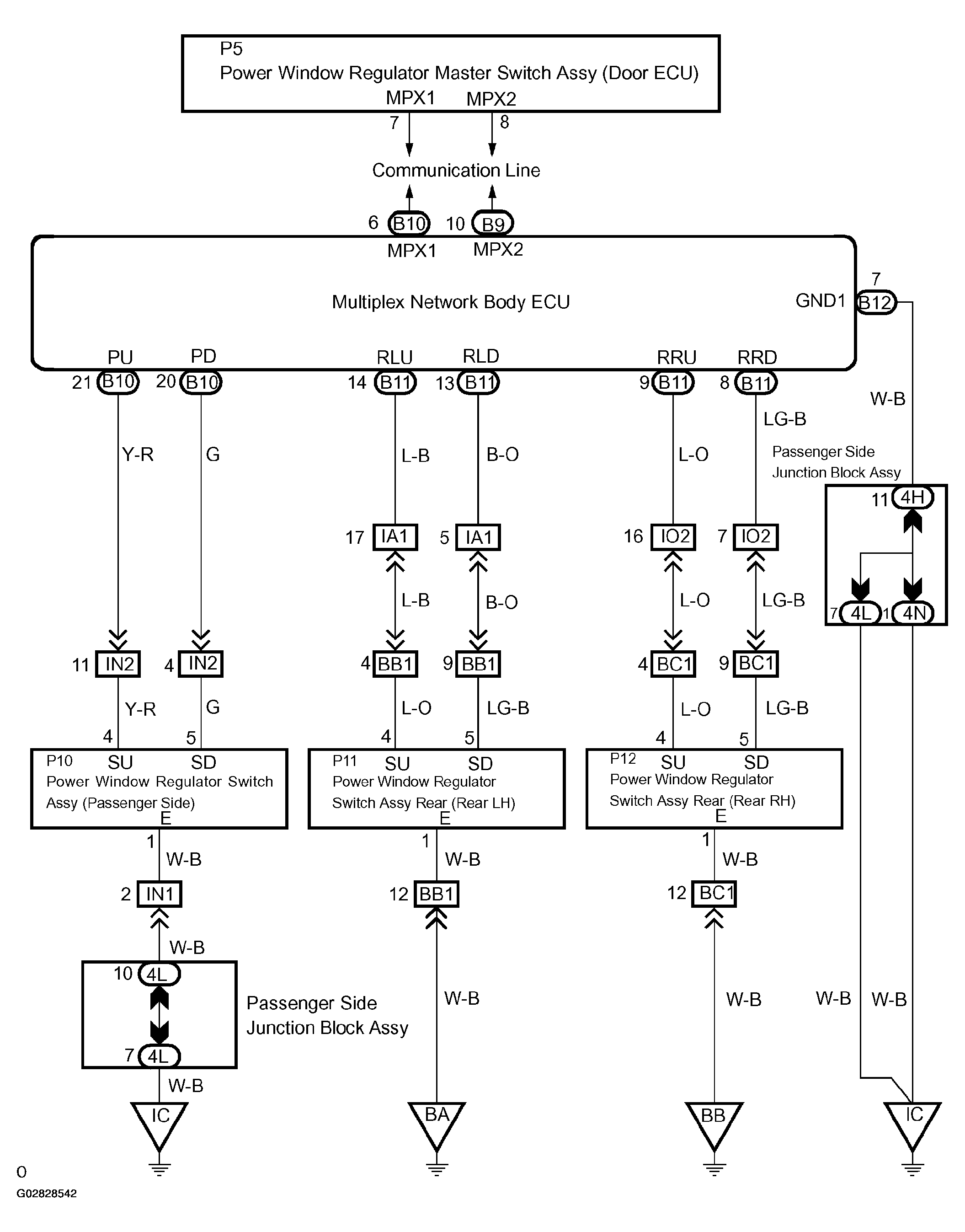

Fig 1: Remote Operation Via Master Switch - Wiring Diagram
G02828542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
