Windows Cannot Be Operated Via Regulator Switch At Each Seat: Wiring Diagram

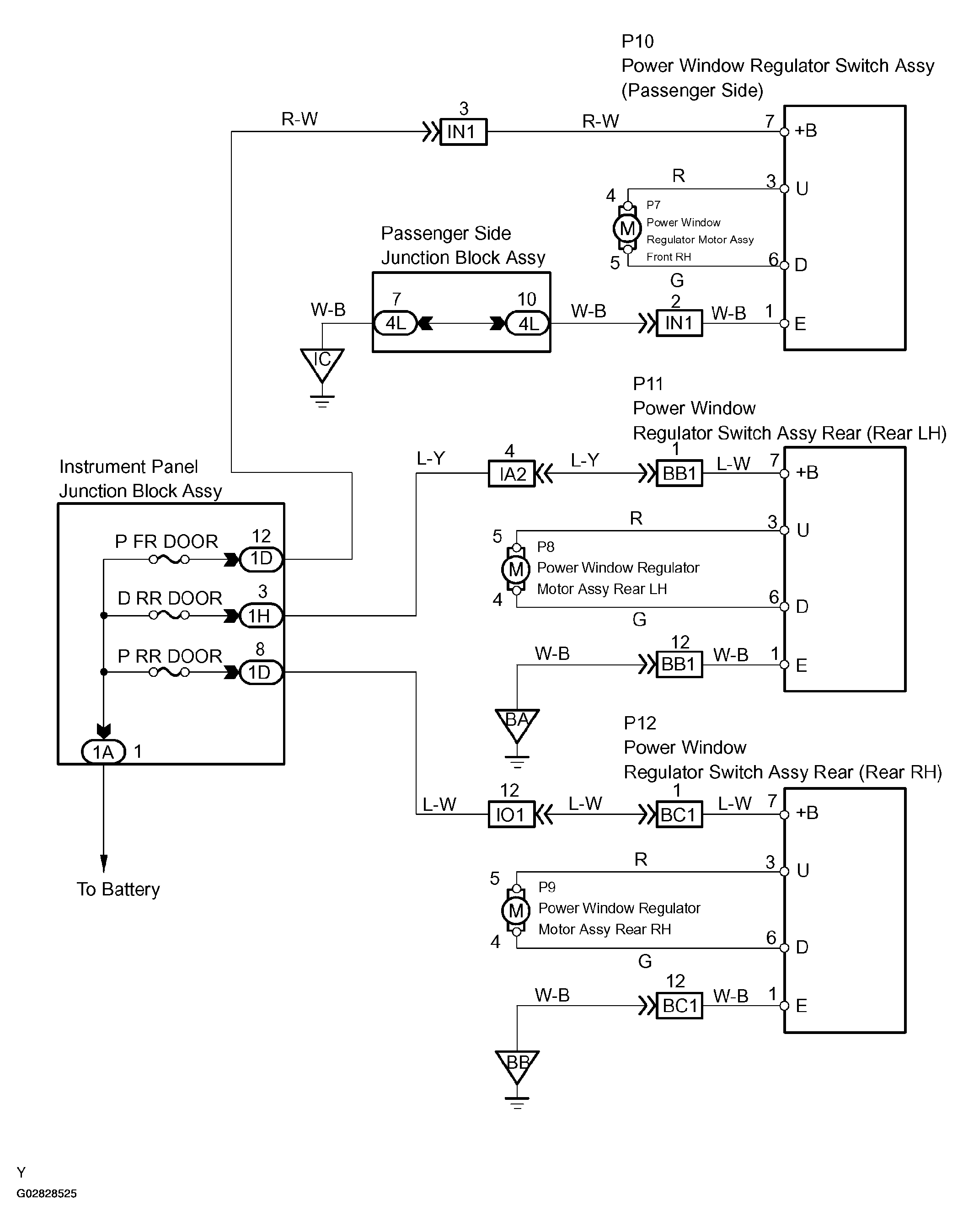

Fig 1: Front & Rear Passenger Windows - Wiring Diagram
G02828525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
