Circuit Description

This DTC is output when the power window regulator motor assembly malfunctions.

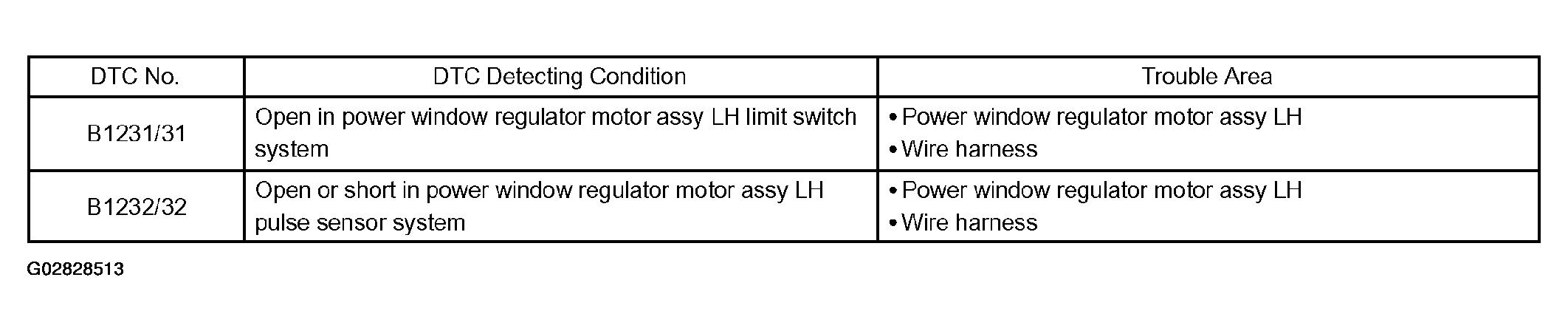

Fig 1: DTC Description Table
G02828513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
