YAWRATE Sensor: Replacement

  1. REMOVE REAR SEAT ASSY LH (See  OVERHAUL  )
  2. REMOVE YAWRATE SENSOR
    1. Disconnect the yawrate sensor connector.
    2. Remove the 2 bolts and yawrate sensor.

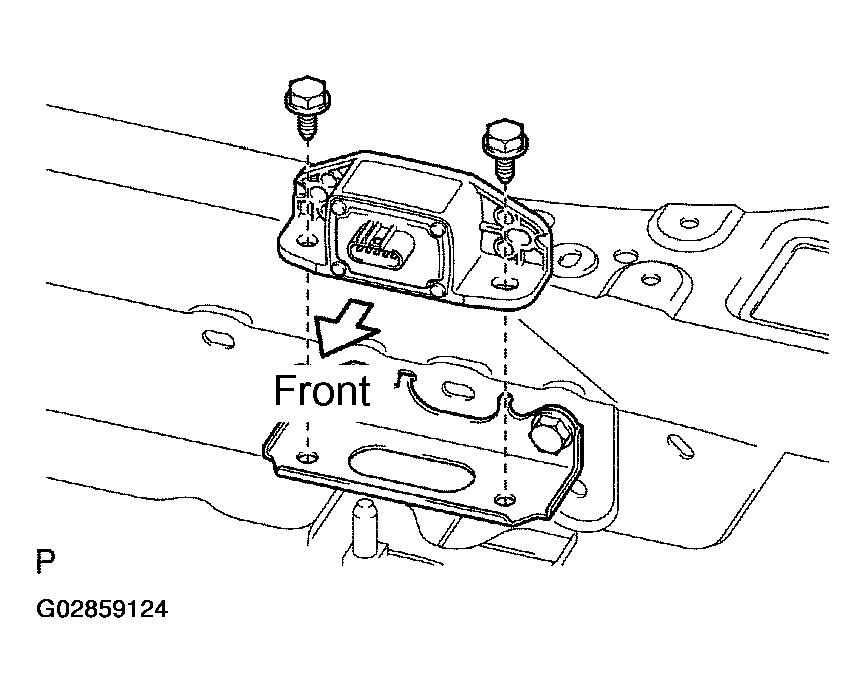

      Fig 1: Removing Yawrate Sensor
      G02859124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL YAWRATE SENSOR
    1. Install the yawrate sensor with the 2 bolts.

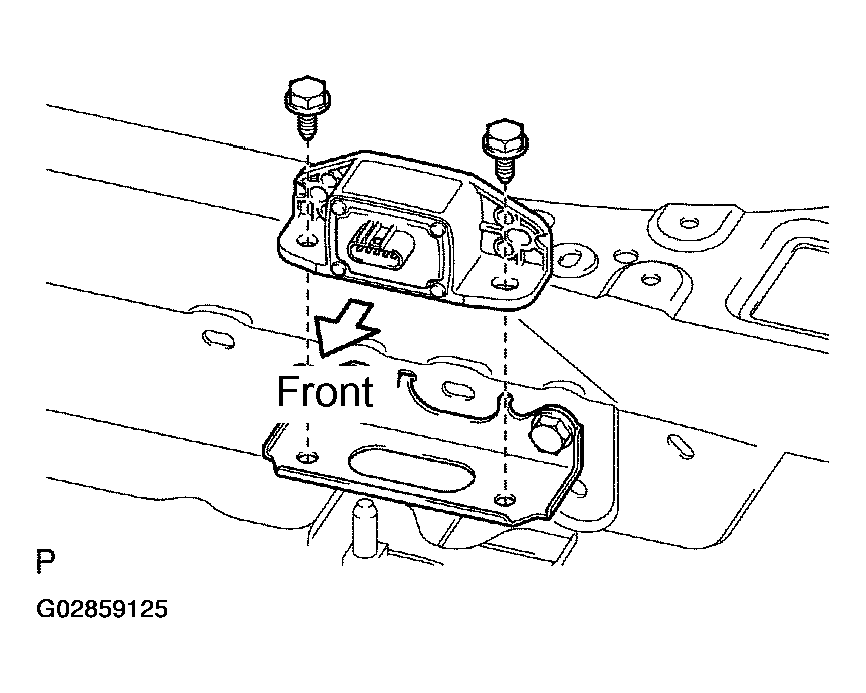

      Fig 2: Installing Yawrate Sensor
      G02859125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 20 N.m (205 kgf.cm, 15 ft.lbf)

    2. Connect the yawrate sensor connector.
  4. INSTALL REAR SEAT ASSY LH (See  OVERHAUL  )
  5. PERFORM YAWRATE SENSOR ZERO POINT (See  PRE-CHECK  )
  6. CHECK VSC SENSOR SIGNAL (See  PRE-CHECK  )
